How to Service and Repair a Fuel Level Sensor on Chrysler Concorde?

Before you can work on the fuel level sensor, take out the fuel pump module. Push the retaining tab down to remove the fuel pump/fuel level sensor connector from the bottom of the fuel pump module's electrical connector. After that, take out the clip that holds the wire terminal in place and notice where the terminals of the fuel level sensor wires are located. Either use special tool 7812 or an identical one to push the fuel level sensor wire and ground terminals free from the connector. Push the fuel level sensor down with a flathead screwdriver that is inserted underneath it and between the fuel pump module and the fuel level sensor housing. Slide both ends of the fuel level sensor wires through the inside of the fuel pump module, then pull the fuel level sensor out of the installation channel. While installing, put the wires from the fuel level sensor into the bottom of the standpipe and wrap the wires into the groove behind the sensor. As you insert the wires into the standpipe, lift the fuel level sensor up the installation channel and ensure the locking tab hooks onto the standpipe. Then insert the fuel level sensor wires into their connector by pushing them up and pulling them down, ensuring everything is locked in place and the right wires are in position. After that, slide the retaining clip onto the connector, raise the fuel pump/fuel level sensor part up into the fuel pump module's electrical connector and replace the fuel pump module.

OEM Chrysler Concorde Fuel Level Sensor

Gas Gauge Sensor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Fuel Level Sensors found

View related parts

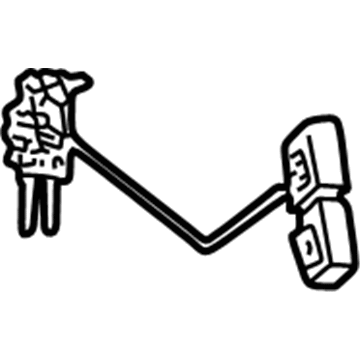

Chrysler Concorde Fuel Gauge Sending Unit Part Number: 5003959AB
$64.81 MSRP: $95.40
You Save: $30.59 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Level Kit - Fuel; Fuel Tank Sending Unit; Fuel Level Sensor; Level Unit Kit Fuel
- Replaced by: 5003959AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1998-1999 Chrysler Concorde | LX, LXi | 6 Cyl 2.7 L GAS, 6 Cyl 3.2 L GAS
View related parts
Chrysler Concorde Fuel Gauge Sending Unit Part Number: 5003959AC
$75.22 MSRP: $95.40
You Save: $20.18 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Level Kit - Fuel; Fuel Tank Sending Unit; Fuel Level Sensor; Level Sensor; Level Unit Kit Fuel Also Serviced With Fuel Module; Level Unit Kit Fuel
- Replaces: 5003959AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1998-2004 Chrysler Concorde | LX, LXi, Limited | 6 Cyl 2.7 L GAS, 6 Cyl 3.2 L GAS, 6 Cyl 3.5 L GAS
View related parts
Chrysler Concorde Fuel Gauge Sending Unit Part Number: 5014025AA
Product Specifications
- Other Name: Level Kit - Fuel; Fuel Level Sensor; Fuel Sending Unit; Sending Unit; Tank Gauge
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1993-1995 Chrysler Concorde | Base | 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS, 6 Cyl 3.5 L GAS
View related parts
Chrysler Concorde Fuel Pump Part Number: 4897428AB
Product Specifications
- Other Name: Module Kit - Fuel Pump/Level Unit; Electric Fuel Pump Assembly; Fuel Level Sensor; Fuel Sending Unit.; Fuel Gauge Sending Unit; Tank Gauge
- Replaces: 4897428AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1996-1997 Chrysler Concorde | LX, LXi | 6 Cyl 3.3 L GAS, 6 Cyl 3.5 L GAS

Chrysler Concorde Fuel Level Sensor

Choose OEM Fuel Level Sensor that meet Chrysler factory standards. Chrysler designs and tests every component for precision and durability. Each Fuel Level Sensor follows strict manufacturing steps to lock in quality and fit. If your Chrysler Concorde matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Concorde parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

The Chrysler Concorde Fuel Level Sensor is a part of Chrysler cars that can be described with such qualities as sturdiness and efficiency. This Fuel Level Sensor is mounted on the fuel tank to detect fuel status and inform the driver when the car is running low on fuel, which helps in increasing the efficiency of the car and its timely refueling. The fact that it has to suit different models of the Chrysler Concorde which was manufactured between 1993 and 2004 shows how important it is for the operational health of the car. The Fuel Level Sensor can work at high temperature levels and it has a low power consumption rate and the ability to give instant responses; thus Chrysler Concorde owners have reasons to appreciate this part. The construction of the sensor comprises of a float, an actuating rod, and a resistor which in concordance ensure that the fuel gauge received the right information to display on the fuel gauge without misleading data that may endanger lives. It is significant that could help drivers avoid the situations when a certain filling station is out of fuel. Also, Chrysler Concorde Fuel Level Sensor can be easily calibrated, making the process of its service rather uncomplicated. These features make it outstanding from other cars in the automotive market because of something like construction and precise performance. Thus, being able to give accurate information of the amount of fuel left in the tank the Chrysler Concorde Fuel Level Sensor adds to the full efficiency in the car besides increasing on safety thus making this part of the Chrysler Concorde full intelligent design.

Chrysler Concorde Fuel Level Sensor Parts and Q&A

Fuel Gauge Sending Unit
5003959AC
Q: How to Service and Repair a Fuel Level Sensor on Chrysler Concorde?
A:
Before you can work on the fuel level sensor, take out the fuel pump module. Push the retaining tab down to remove the fuel pump/fuel level sensor connector from the bottom of the fuel pump module's electrical connector. After that, take out the clip that holds the wire terminal in place and notice where the terminals of the fuel level sensor wires are located. Either use special tool 7812 or an identical one to push the fuel level sensor wire and ground terminals free from the connector. Push the fuel level sensor down with a flathead screwdriver that is inserted underneath it and between the fuel pump module and the fuel level sensor housing. Slide both ends of the fuel level sensor wires through the inside of the fuel pump module, then pull the fuel level sensor out of the installation channel. While installing, put the wires from the fuel level sensor into the bottom of the standpipe and wrap the wires into the groove behind the sensor. As you insert the wires into the standpipe, lift the fuel level sensor up the installation channel and ensure the locking tab hooks onto the standpipe. Then insert the fuel level sensor wires into their connector by pushing them up and pulling them down, ensuring everything is locked in place and the right wires are in position. After that, slide the retaining clip onto the connector, raise the fuel pump/fuel level sensor part up into the fuel pump module's electrical connector and replace the fuel pump module.
