2000 Dodge Dakota Crankshaft Position Sensor, Engine Control Module, Ignition Coil, Spark Plug

Crankshaft Position Sensor, Ignition Coil, Spark Plug Installation and Repair Tips for 2000 Dodge Dakota

• Q:

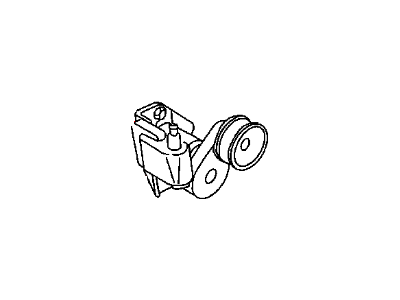

  How to Remove and Install an Engine-Mounted Epoxy-Filled Ignition Coil on 2000 Dodge Dakota?

  A:

  In order to remove the epoxy-filled ignition coil installed on the engine bracket, it is necessary to disconnect the secondary cable and the engine harness connector, and then remove the mounting bolts. For installation process, put the coil in place, tighten bolts by 5 Nm or 11 Nm and reconnect that harness and cable.
• Q:

  Where is the Crankshaft Position Sensor located, and How to remove and install it on 2000 Dodge Dakota?

  A:

  The crankshaft position sensor is positioned at the rear left of the transmission bellhousing. Usually the air tube is taken off and the pigtail is disconnected near the intake, the sensor is unbolted and harness clip freed; when fitted it is seated flush and tightened to 19Nm with the special bolts for correct flywheel spacing and than reconnected.
• Q:

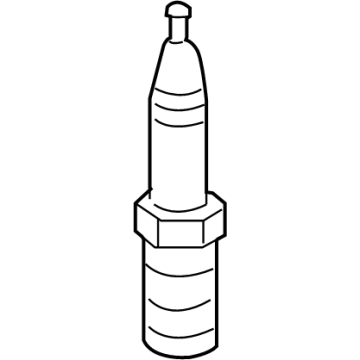

  What is the proper way to remove and install a Spark Plug on 2000 Dodge Dakota?

  A:

  Air is often applied around the plug hole; rubber socket and boots grasped at the cable end assist in avoiding damage. Plugs checked; cleaned; center electrode filed, where necessary; wire-brushes avoided. Gaps checked, only the earth electrode bent. Plugs started with hand torque and torque to 35-41 Nm; cables coupled to avoid cross-ignition.
