2005 Chrysler PT Cruiser Crankshaft Position Sensor, Engine Control Module, Ignition Coil, Spark Plug

Crankshaft Position Sensor, Ignition Coil, Spark Plug Installation and Repair Tips for 2005 Chrysler PT Cruiser

• Q:

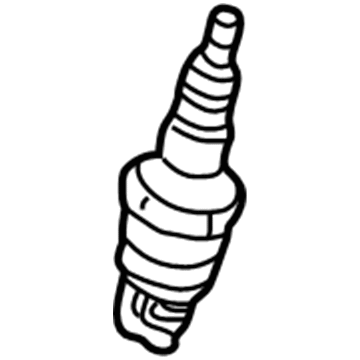

  What Spark Plug precautions should be taken when servicing the 2.4L cylinder head on 2005 Chrysler PT Cruiser?

  A:

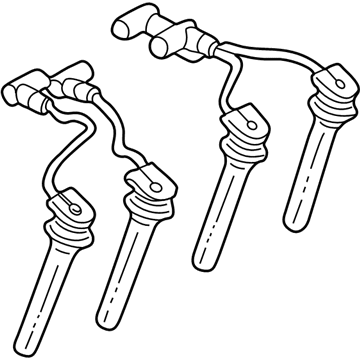

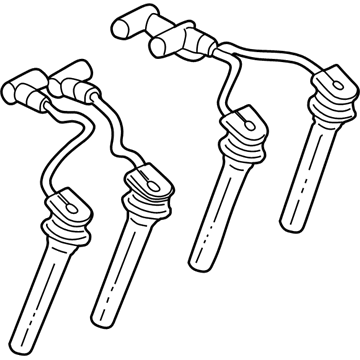

  Care should be taken not to drop spark plugs into wells as that would damage the electrode. The negative cable is disconnected and MAP connector was unlocked and shields, coil connections can be removed. The boot rotates 90° and pulling up removes the insulator; plug is with rubber socket, inspect for dirt and torque to 17.6 Nm.
• Q:

  How to remove and install the Crankshaft Position Sensor on 2005 Chrysler PT Cruiser?

  A:

  The crankshaft position sensor lies at the front of the engine block beneath the starter motor; service is completed with the negative battery cable disconnected and the vehicle supported; and nepos. In certain instances, one releases the collar and connector, unbolts the sensor, checks and lubricates the O-ring, then refits and torques to 9 Nm.
• Q:

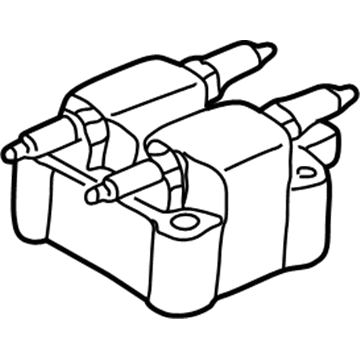

  How to Service an Ignition Coil on 2005 Chrysler PT Cruiser?

  A:

  In order to service the ignition coil, disconnect the negative battery cable and take off throttle control shield. Unscrew throttle cables and spark plug cables and unscrew electrical connector. Disassemble ignition coil bolts and carefully take off and put on the coil in reverse order and then reattach the battery cable.
