2007 Dodge Ram 1500 Crankshaft Position Sensor, Engine Control Module, Ignition Coil, Spark Plug

Crankshaft Position Sensor, Engine Control Module, Ignition Coil, Spark Plug Installation and Repair Tips for 2007 Dodge Ram 1500

• Q:

  What are the requirements and procedures for Spark Plug installation in the 4.7L and 5.7L engines on 2007 Dodge Ram 1500?

  A:

  Engines of 4.7L require copper -core ground -electrode plugs usually matched to originals which may be a cause of pre -ignition. Since plugs are hand-started to avoid cross-threading and dropping, the torque applied to the 3.7/4.7L is 27 Nm (20 ft.lbs) and the critical 5.7L to ~18 Nm (13 ft.lbs) (no O-ring). O-rings in coils should be lubricated, replaced, and visually inspected.
• Q:

  How to remove the Crankshaft Position Sensor from the cylinder block on 2007 Dodge Ram 1500?

  A:

  The cylinder block's right-rear has a machined hole and O-ring that hold the crankshaft position sensor in place with a bolt. Typically, the vehicle is raised and the electrical connector unplugged for removal. The bolt is then unfastened and the sensor twisted free. The condition of the O-ring is also inspected.
• Q:

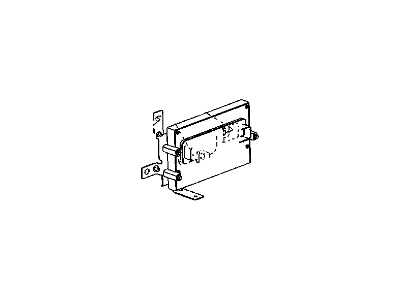

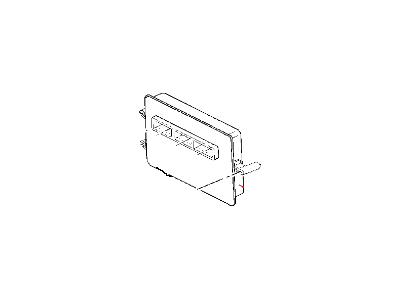

  How to Replace an Engine Control Module on 2007 Dodge Ram 1500?

  A:

  Replacement of the Engine Control Module will require disconnection of the negative battery cable and ABS CAB. Once the new PCM has been installed, a scan tool is used to write in the VIN and rewrite it with the original VIN and mileage of the vehicle. Unplug connectors and bolts to remove PCM of the engine compartment.
• Q:

  How to Install an Ignition Coil on a 3.7L Engine on 2007 Dodge Ram 1500?

  A:

  Installation of the ignition coil of the 3.7L engine requires cleaning up the spark plug space with compressed air. Close and replace the O-ring, using silicone. Install the coil, screw the mounting nut up to 8 Nm and plug in the electrical connector. Install throttle body air tube where necessary.
