Diagram (1 of 1): Cowl - Components On Dash Panel

2007 Dodge Sprinter 3500 Hydraulic System Diagram

Enlarge Diagram

Sort by:

Ref No.

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1

68013551AA
Booster

2
5133696AA
Booster Gasket
- Part Notes: Front
MSRP: $44.05 Your Price: $29.53
1
Add To Cart

3
5119386AA

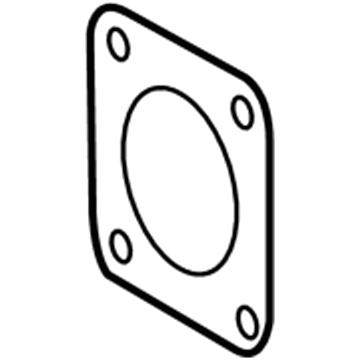

Booster Gasket
- Part Notes: Rear

4
68005054AC
Master Cylinder

5
68005060AA

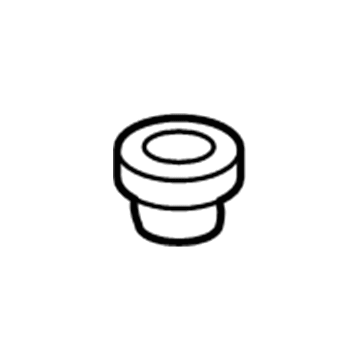

Master Cylinder Front Seal
MSRP: $21.45 Your Price: $13.52
1
Add To Cart

6
68005058AA

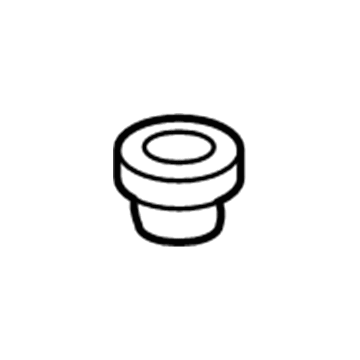

Master Cylinder Rear Seal

7
68005059AA

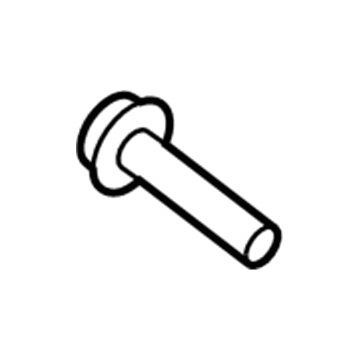

Master Cylinder Bolt

8
5126237AA
Master Cylinder Nut

9
68005056AA
Reservoir
- Part Notes: 3500

10
5120277AA

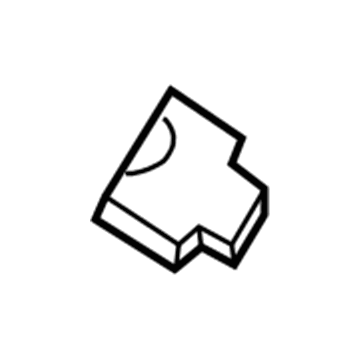

Reservoir Connector
MSRP: $12.05 Your Price: $7.50
1
Add To Cart

11
5103874AA

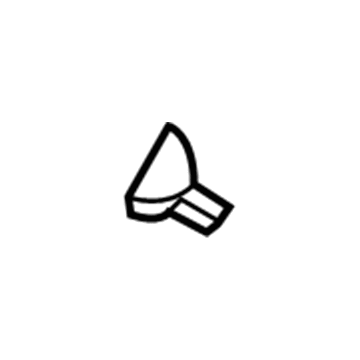

Reservoir Link

12
5098371AB

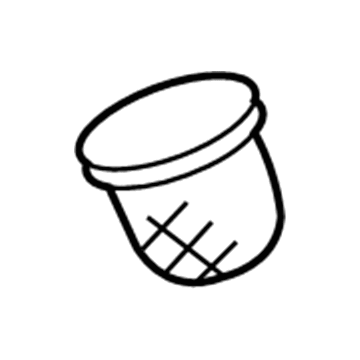

Filter

13
5098710AA
Reservoir Cap
MSRP: $16.45 Your Price: $8.47
1
Add To Cart

5119362AA
Booster Check Valve
- Part Notes: Sprinter Van

5126007AA

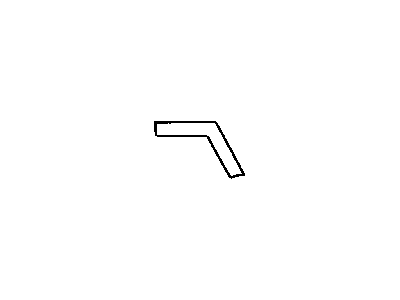

CONNECTOR
- Fitting Vehicle Options: 03 - CAB CHASSIS WHEEL BASE, 05 - CAB CHASSIS WHEEL BASE, 13 - 119 WB, 15 - VAN WHEEL BASE, 17 - VAN WHEEL BASE, 3 - HD DODGE 2WD, 7 - Med. Duty DODGE 4WD, EG2 - 6 Cyl 3.5L, EXM - 6 Cyl 3.0L Turbo Diesel, L - LOWLINE
MSRP: $13.90 Your Price: $9.29
View Details

68013556AB
HOSE Vacuum
- Fitting Vehicle Options: 3 - HD DODGE 2WD, 7 - Med. Duty DODGE 4WD, EXM - 6 Cyl 3.0L Turbo Diesel, L - LOWLINE
- Require Quantity: 3
- Package Quantity: 1
- Replaced By: 68013556AC
MSRP: $26.30 Your Price: $17.90
View Details
