2010 Chrysler PT Cruiser Door Hinge, Door Check, Door Latch Assembly, Exterior Door Handle

Door Check, Door Hinge, Door Latch Assembly, Exterior Door Handle Installation and Repair Tips for 2010 Chrysler PT Cruiser

• Q:

  How to Service and Repair a Coupe's Front Exterior Door Handle on 2010 Chrysler PT Cruiser?

  A:

  To repair the front exterior handle on a coupe, remove the door trim panel and water dam, raise the door glass, disconnect the handle link to latch 5, remove the nut securing the handle, and then take the handle out of the vehicle.
• Q:

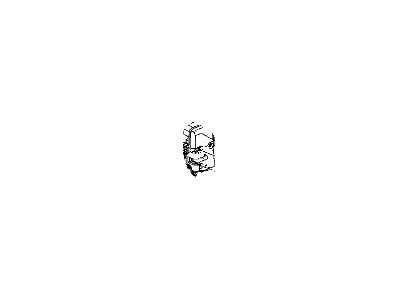

  How to Service and Repair a Door Latch Assembly on 2010 Chrysler PT Cruiser?

  A:

  To service the rear door latch, remove the door trim panel, raise the glass, and take out the lower rear run channel. Disconnect the linkage rods from the latch, unscrew the latch from the door frame, and then remove the latch from the vehicle.
• Q:

  How to Remove and Service a Front Door Check on 2010 Chrysler PT Cruiser?

  A:

  To service the front door limiter, remove the door trim panel and water dam, then the bolt connecting the door check to the hinge pillar. Next, take out the door speaker and glass run, followed by the bolts attaching the door check to the door end frame, and finally remove the door check and cover.
• Q:

  How to Maintain and Fix a Coupe's Front Door Hinge on 2010 Chrysler PT Cruiser?

  A:

  To repair the front door hinge on a coupe, support the door and, if needed, remove the door check strap bolts. Mark the hinge positions, then remove the hinge bolts from the door end frame and lower A-pillar before taking the hinge out of the vehicle.
