2010 Dodge Avenger Clock Spring, Airbag, Air Bag Control Module, Air Bag Sensor

Air Bag Control Module, Air Bag Sensor, Airbag, Clock Spring Installation and Repair Tips for 2010 Dodge Avenger

• Q:

  How to Service an Air Bag Sensor for Front Impact on 2010 Dodge Avenger?

  A:

  To service the front impact sensor, disconnect the battery negative cable and wait two minutes so that the capacitor discharges. Remove the screw holding the sensor to the radiator support, take the electrical connector off and finally remove the front impact sensor from the engine compartment.
• Q:

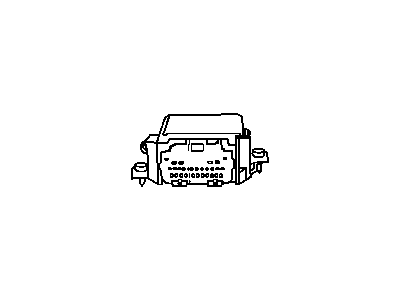

  How to Install an Air Bag Control Module in the Occupant Restraint System on 2010 Dodge Avenger?

  A:

  Installation of the Occupant Restraint Controller requires connection of ORC connectors 4 and 5, ORC 3 with the arrow facing forward and three retaining nuts tightened to 9 Nm. Install the center console, and exclude the battery negative cable until the system test is completed in order to prevent severe injury.
• Q:

  How to Remove and Replace a Clock Spring Assembly on 2010 Dodge Avenger?

  A:

  To replace the Clock Spring assembly, remove the battery negative cable and wait for 2 minutes. Be sure to keep the steering wheel straight and locked. Remove the steering wheel, shrouds and multi-function switches. While removing the Clock Spring, unscrew it and disconnect the wire harness connectors before removing the Clock Spring.
• Q:

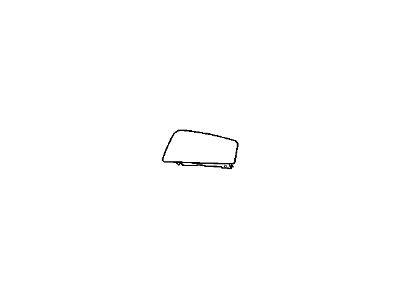

  How to Safely Remove an Airbag on 2010 Dodge Avenger?

  A:

  To remove the driver air bag, disconnect the battery negative cable and wait two minutes. Pry off the air bag bolt covers, remove the bolts, and disconnect the squib connectors. Finally, pull the air bag out. Remember to replace the Clock Spring when replacing a deployed air bag.
