OEM Chrysler Crossfire Windshield Washer Nozzle

Chrysler Crossfire Windshield Washer Nozzle Parts and Q&A

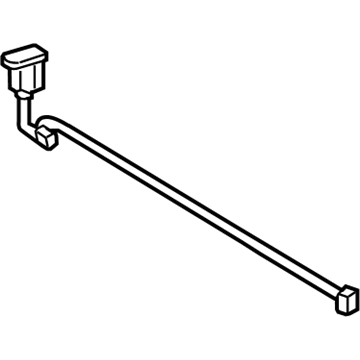

• Nozzle, Front Passenger Side
  5099970AA
  Q: How to Install a Windshield Washer Nozzle on Chrysler Crossfire?

  A:

  Start by putting the washer nozzle into the cowl grille hole and pressing down while rocking it so that the retaining clip clicks. Then, apply the washer hose clamps to the washer hose and afterward place the washer hose over the nozzle on your washing machine. Loosen the hose clamps gently and place your washer hoses close together so they have a distance of about 0.78 inch (20 mm) between them. Should the main washer nozzle harness connector have been disconnected, go ahead and reconnect it. After that, put both harness connectors from the washer nozzle into the thermoswitch and then place the thermoswitch into the cowl grille. The next step is to set in the cowl grille.

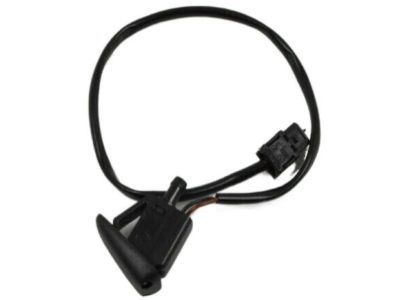

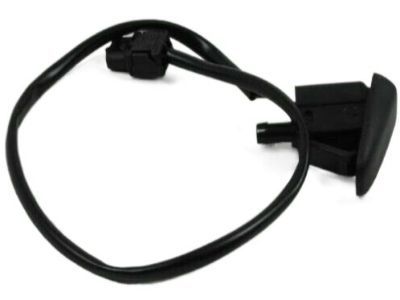

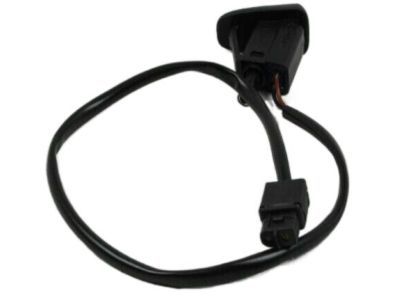

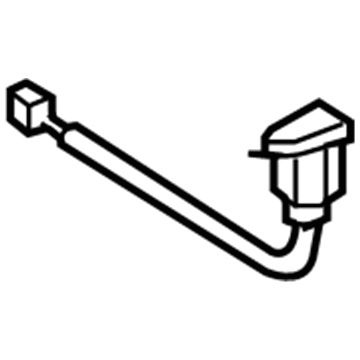

• Nozzle, Front Driver Side
  5099969AA
  Q: How to Remove a Windshield Washer Nozzle on Chrysler Crossfire?

  A:

  Before taking off the windshield washer spray nozzle. Remove the cowl grille after that. After that, take out the clamp(s) connecting the hose to the washer nozzle and unplug the hose. Remove the thermoswitch off the cowl grille and unplug the harness connector from the thermoswitch; you can gain extra space for the cowl grille if you also unplug the main harness connector from the nozzle. Afterward, take apart the connector from the nozzle harness to the washer nozzle. Push down with a small screwdriver on the retaining clip in the gap between the washer nozzle and the cowl grille, then remove the washer nozzle from its place.
