How to Maintain and Fix an Alternator on Chrysler Pacifica?

Before servicing or repairing the alternator, disconnect the negative cable from the battery and take away the engine cover. Coming next, unhook the generator drive belt, unwind the bolt on the B+ terminal and disconnect the generator field wires by pushing the red release tab. Remove the upper bracket on the mount and also remove the 2 lower bolts to free the generator. Installing the generator means setting it back into place and tightening the 2 lower mounting bolts. Here, put the upper mounting bracket back in and tighten the 2 bottom bolts up to 54.2 N.m (40 ft. lbs.) Next, tighten the 2 top bolts to 28.2 N.m (20.8 ft. lbs.). Rejoin the wiring connector on the generator field circuit and snap the RED locking tab to hold it secured. Connect the B+ terminal nut and wire, with the anti-rotation tab oriented correctly and tighten the nut to 12.5 N.m (110 in. lbs.). The last thing to do is reattach the drive belt, the engine cover and reconnect the engine side of your battery's negative cable.

How to Service and Repair an Alternator on a 3.8L Engine on Chrysler Pacifica?

Disconnect the battery negative cable and take out the air box before you can get to the alternator on a 3.8L engine. At the back of the generator, remove the field electrical connector and uncover the battery cable. After that, remove the positive battery cable from the same area. After that, take off the accessory drive belt and the three bolts holding on the power steering assembly, then position the assembly differently as needed. Start by taking out the idler pulley pulley/lower mounting bolt for the generator, then the rear and upper mounting bolts. Remove the last part of the engine by getting rid of the generator and the idler pulley assembly.

OEM Chrysler Pacifica Alternator

Generator

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

8 Alternators found

View related parts
Chrysler Pacifica Alternator Part Number: 56029732AB
$638.69 MSRP: $969.00
You Save: $330.31 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Generator - Engine; Generator Engine
- Replaced by: 56029732AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2017-2020 Chrysler Pacifica | AWD Launch Edition, Hybrid Limited, Hybrid Platinum, Hybrid Premium, Hybrid Touring, Hybrid Touring L, Hybrid Touring Plus, L, LX, Limited, Touring, Touring L, Touring L Plus, Touring Plus | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Chrysler Pacifica Alternator Part Number: 4868760AH
$489.99 MSRP: $743.00
You Save: $253.01 (35%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Alternator - Engine; Alternators; Generator Engine
- Replaces: 4868760AE, 4868760AF
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2004-2006 Chrysler Pacifica | Base, Limited, Touring | 3.5L V6, 6 Cyl 3.5 L GAS
View related parts
Chrysler Pacifica Alternator Part Number: 56029733AB
$693.94 MSRP: $1060.00
You Save: $366.06 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Generator - Engine; Generator Engine
- Replaced by: 56029733AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2017-2020 Chrysler Pacifica | AWD Launch Edition, Hybrid Limited, Hybrid Platinum, Hybrid Premium, Hybrid Touring, Hybrid Touring L, Hybrid Touring Plus, L, LX, Limited, Touring, Touring L, Touring L Plus, Touring Plus | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Chrysler Pacifica Alternator Part Number: 4801480AB
$382.86 MSRP: $559.00
You Save: $176.14 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Alternator - Engine; Alternators; Generator Engine
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2008 Chrysler Pacifica | Base, LX, Limited, Touring | 6 Cyl 4.0 L GAS
View related parts
Chrysler Pacifica Alternator Part Number: 68417026AA
$716.51 MSRP: $1080.00
You Save: $363.49 (34%)
ADD TO CART
Product Specifications
- Other Name: Alternator, Engine
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2021-2025 Chrysler Pacifica | Hybrid Limited, Hybrid Pinnacle, Hybrid Premium S Appearance, Hybrid Road Tripper, Hybrid S Appearance, Hybrid Select, Hybrid Touring, Hybrid Touring L, Limited, Pinnacle, Select, Touring, Touring L | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts

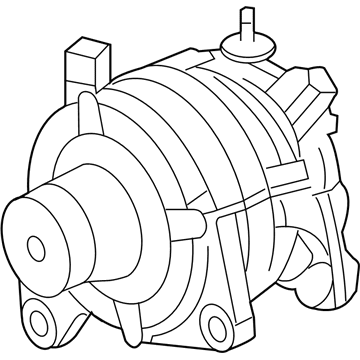

Chrysler Pacifica Alternator Part Number: 4869900AC
Product Specifications
- Other Name: Alternator - Engine; Generator Engine
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2005-2006 Chrysler Pacifica | Base | 6 Cyl 3.8 L GAS
View related parts
Chrysler Pacifica Alternator Part Number: 68417025AA
$638.20 MSRP: $932.00
You Save: $293.80 (32%)
Product Specifications
- Other Name: Alternator, Engine
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2021-2025 Chrysler Pacifica | Hybrid Limited, Hybrid Pinnacle, Hybrid Premium S Appearance, Hybrid Road Tripper, Hybrid S Appearance, Hybrid Select, Hybrid Touring, Hybrid Touring L, Limited, Pinnacle, Select, Touring, Touring L | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Chrysler Pacifica Alternator Part Number: 4801322AB
Product Specifications
- Other Name: Alternator - Engine; Alternators; Generator Engine
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2008 Chrysler Pacifica | Base, LX | 6 Cyl 3.8 L GAS

Chrysler Pacifica Alternator

Choose OEM Alternator that meet Chrysler factory standards. Chrysler designs and tests every component for precision and durability. Each Alternator follows strict manufacturing steps to lock in quality and fit. If your Chrysler Pacifica matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Pacifica parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

Chrysler Pacifica Alternator is a core item of the car that reiterates the general stand on dependable and efficient commodities in the car industry. In addition to the battery charger, the Chrysler Pacifica Alternator works as the onboard generator to change the mechanical energy of the vehicle engine into electrical energy to sustain other electrical systems in the car properly. This alternator is suitable for many kinds of Chrysler Pacifica vehicles, including gasoline ones as well as the plug-in hybrids, contributing to the performance and protection of the car. The design has a two-piece cast aluminium housing that shields critical parts such as the stator, rotor and an integrated voltage regulator, the later is controlled by the Powertrain Control Module (PCM) for better efficiency. For instance, high output Chrysler Pacifica alternators can be availed for those with high electrical demands to avoid cases of failure when there is high load demand. This capability is essential in the contemporary society where motorists depend on several electrical gimmicks. A highly advanced engineering facility and emphasis placed on the production of the Chrysler Pacifica Alternator has made it a top car choice for families and this has lead to the heightened popularity of the said vehicle model. The Chrysler Pacifica has been honored as the 'premier Minivan 2016' and '2020 premier Family Car' indeed the alternator of this model is highly reliable and performs to the optimum for the driving comfort of the consumers.

Chrysler Pacifica Alternator Parts and Q&A

Alternator
4869900AC
Q: How to Maintain and Fix an Alternator on Chrysler Pacifica?
A:
Before servicing or repairing the alternator, disconnect the negative cable from the battery and take away the engine cover. Coming next, unhook the generator Drive Belt, unwind the bolt on the B+ terminal and disconnect the generator field wires by pushing the red release tab. Remove the upper bracket on the mount and also remove the 2 lower bolts to free the generator. Installing the generator means setting it back into place and tightening the 2 lower mounting bolts. Here, put the upper mounting bracket back in and tighten the 2 bottom bolts up to 54.2 N.m (40 ft. lbs.) Next, tighten the 2 top bolts to 28.2 N.m (20.8 ft. lbs.). Rejoin the wiring connector on the generator field circuit and snap the RED locking tab to hold it secured. Connect the B+ terminal nut and wire, with the anti-rotation tab oriented correctly and tighten the nut to 12.5 N.m (110 in. lbs.). The last thing to do is reattach the drive belt, the engine cover and reconnect the engine side of your battery's negative cable.
Alternator
4801480AB
Q: How to Service and Repair an Alternator on a 3.8L Engine on Chrysler Pacifica?
A:
Disconnect the battery negative cable and take out the air box before you can get to the alternator on a 3.8L engine. At the back of the generator, remove the field electrical connector and uncover the Battery Cable. After that, remove the positive battery cable from the same area. After that, take off the accessory Drive Belt and the three bolts holding on the power steering assembly, then position the assembly differently as needed. Start by taking out the idler pulley pulley/lower mounting bolt for the generator, then the rear and upper mounting bolts. Remove the last part of the engine by getting rid of the generator and the idler pulley assembly.
