How to Remove the Headlight Unit on Chrysler PT Cruiser?

Raise your vehicle on a hoist and take off the wheel and tire to perform this step. Then, if needed, lift out the splash shield and after that, remove the grille. Unhook both of the grille fascia bolts and then remove the clips or the bolts securing the fender to the facia near you. Afterward, disconnect the three screws that hold the lower fascia to the lower radiator crossmember, making sure to leave a tiny space between the fender and fascia. Take out the four nuts securing the housing and disconnect all the wire connectors. After the fascia is softened and creates a space around the headlamp unit, put a shop towel underneath the unit on the fascia to stop it from being scratched. Next, tilt the headlamp unit lower and then, without breaking them, pull the headlamp out through the hole in the fender/fascia.

How to Install a Headlight Unit on Chrysler PT Cruiser?

It's important not to engage with the glass of halogen bulbs when installing the lights, as oil and fingerprints can decrease their lifespan. When installing a fresh headlamp unit, change the bulbs into it. Make the first step by connecting the wire connectors on pins 2, 5 and 7 to headlamp housing 4. Slant the top of headlamp unit 1 away from you and slide it into the opening in headlamp unit 2 so as not to damage fascia 2 or the fender during insertion. Eliminate all cloths or towels from the engine when you perform maintenance. After that, attach headlamp housing 4 by installing nuts 1, 3 and 6. Put the fixings in the fender to hold it onto the side being worked on, then put in the two fascia bolts 1 that are hidden behind the front grille from behind. Place three fasteners to hold the lower fascia 3 to the lower radiator crossmember, then attach the grille. After splash shield 2, reach the headlamp housing and then add the wheel and tire. In the end, lower the car.

OEM Chrysler PT Cruiser Headlight

Headlamp

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Headlights found

View related parts

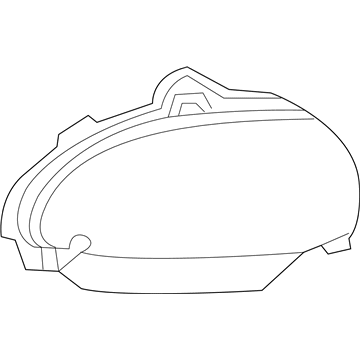

Chrysler PT Cruiser Headlamp Assembly, Front Driver Side Part Number: 5116043AF
$115.57 MSRP: $171.00
You Save: $55.43 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Headlamp; Headlight, Front Left; Headlight Assembly; Head Lamps; Composite Assembly; Headlight
- Position: Front Driver Side
- Replaces: 5116043AD, 5116043AC, 5116043AE, 5116043AA, 5116043AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2006-2010 Chrysler PT Cruiser | Base, Classic, Couture Edition, GT, LX, Limited, Street Cruiser, Touring | 2.4L L4, 4 Cyl 2.4 L GAS
View related parts

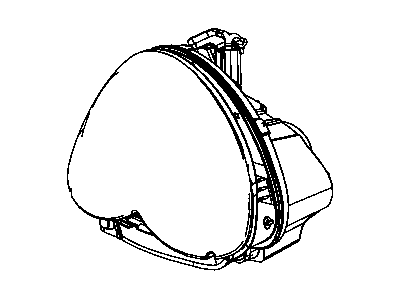

Chrysler PT Cruiser Composite Assembly Part Number: 5116045AE
$224.33 MSRP: $331.00
You Save: $106.67 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Headlamp; Headlight
- Replaces: 5116045AD, 5116045AB, 5116045AC, 5116045AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2006-2010 Chrysler PT Cruiser | Base, Classic, Couture Edition, GT, LX, Limited, Street Cruiser, Touring | 2.4L L4, 4 Cyl 2.4 L GAS
View related parts

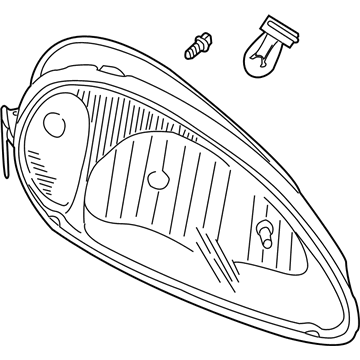

Chrysler PT Cruiser Headlamp Assembly, Front Driver Side Part Number: 5288765AI
$273.49 MSRP: $360.00
You Save: $86.51 (25%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Headlamp; Headlight, Front Left; Headlamp Assembly-Driver Side; Headlight Assembly; Head Lamps; Composite Assembly; Module Headlamp; Headlight
- Position: Front Driver Side
- Replaces: 5288765AH
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2005 Chrysler PT Cruiser | Base, Dream, Dream Cruiser, GT, Limited, Street Cruiser, Touring | 4 Cyl 2.4 L GAS
View related parts

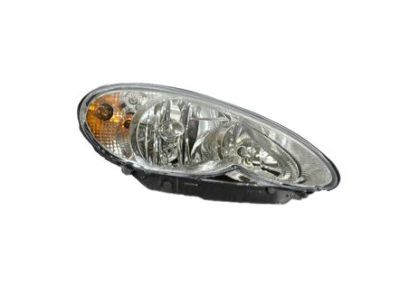

Chrysler PT Cruiser Composite Assembly Part Number: 5116044AE
Product Specifications
- Other Name: Headlamp; Headlight
- Replaces: 5116044AB, 5116044AA, 5116044AD, 5116044AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2006-2010 Chrysler PT Cruiser | Base, Classic, Couture Edition, GT, LX, Limited, Street Cruiser, Touring | 2.4L L4, 4 Cyl 2.4 L GAS
View related parts
Chrysler PT Cruiser Headlamp Assembly, Front Passenger Side Part Number: 5288764AI
Product Specifications
- Other Name: Headlamp; Headlight, Front Right; Headlamp Assembly-Passenger Side; Headlight Assembly; Head Lamps; Composite Assembly; Module Headlamp; Headlight
- Position: Front Passenger Side
- Replaces: 5288764AF, 5288764AH
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2005 Chrysler PT Cruiser | Base, Dream, Dream Cruiser, GT, Limited, Street Cruiser, Touring | 2.4L L4, 4 Cyl 2.4 L GAS
View related parts
Chrysler PT Cruiser Headlamp Assembly, Front Passenger Side Part Number: 5116042AF
Product Specifications
- Other Name: Headlamp; Headlight, Front Right; Headlight Assembly; Head Lamps; Composite Assembly; Headlight
- Position: Front Passenger Side
- Replaces: 5116042AE, 5116042AB, 5116042AD, 5116042AC, 5116042AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2006-2010 Chrysler PT Cruiser | Base, Classic, Couture Edition, GT, LX, Limited, Street Cruiser, Touring | 2.4L L4, 4 Cyl 2.4 L GAS

Chrysler PT Cruiser Headlight

Choose OEM Headlight that meet Chrysler factory standards. Chrysler designs and tests every component for precision and durability. Each Headlight follows strict manufacturing steps to lock in quality and fit. If your Chrysler PT Cruiser matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine PT Cruiser parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

The Chrysler PT Cruiser headlights are very useful in enhancing safety on the road through adequated illumination during night end or poor visibility. These headlights not only provide illumination on the roadway but also improve the car's visibility to the other drivers on the road to minimize on cases of accidents. The Chrysler PT Cruiser has a unique headlight design that is suitable for car's general look and feel which is nostalgic. Several headlights have been manufactured for the Chrysler PT Cruiser since it was produced, and they included, factory-style, Halo, LED, Euro lights, and DRL bar headlights. Of these options there are variations in the type of material, and geometry of the options in conjunction with different projector options avails numerous choices. For the headlight to be efficient and durable, it needs to be well taken care of and this requires regular servicing of the Chrysler PT Cruiser headlights. Maintenance activities that help in maintaining the dome include cleaning, defogging and eradicating condensation. When the headlights are well managed, they give the right light and safety to the car as it needs to accomplish on roads.

Chrysler PT Cruiser Headlight Parts and Q&A

Composite Assembly
5116045AE
Q: How to Remove the Headlight Unit on Chrysler PT Cruiser?
A:
Raise your vehicle on a hoist and take off the wheel and tire to perform this step. Then, if needed, lift out the splash shield and after that, remove the Grille. Unhook both of the grille fascia bolts and then remove the clips or the bolts securing the fender to the facia near you. Afterward, disconnect the three screws that hold the lower fascia to the lower radiator crossmember, making sure to leave a tiny space between the fender and fascia. Take out the four nuts securing the housing and disconnect all the wire connectors. After the fascia is softened and creates a space around the headlamp unit, put a shop towel underneath the unit on the fascia to stop it from being scratched. Next, tilt the headlamp unit lower and then, without breaking them, pull the headlamp out through the hole in the fender/fascia.
Headlamp Assembly, Front Driver Side
5116043AF
Q: How to Install a Headlight Unit on Chrysler PT Cruiser?
A:
It's important not to engage with the glass of halogen bulbs when installing the lights, as oil and fingerprints can decrease their lifespan. When installing a fresh headlamp unit, change the bulbs into it. Make the first step by connecting the wire connectors on pins 2, 5 and 7 to headlamp housing 4. Slant the top of headlamp unit 1 away from you and slide it into the opening in headlamp unit 2 so as not to damage fascia 2 or the fender during insertion. Eliminate all cloths or towels from the engine when you perform maintenance. After that, attach headlamp housing 4 by installing nuts 1, 3 and 6. Put the fixings in the fender to hold it onto the side being worked on, then put in the two fascia bolts 1 that are hidden behind the front Grille from behind. Place three fasteners to hold the lower fascia 3 to the lower radiator crossmember, then attach the grille. After splash shield 2, reach the headlamp housing and then add the wheel and tire. In the end, lower the car.
