How to Install a Fuel Level Sensor in Gas Engines on Chrysler Sebring?

To add the fuel level sensor to a gas engine (on a non FFV vehicle), place the sensor wires into the open hole at the base of the module, then wrap them around the groove at the back of the sensor. As you feed the wire into the guide grooves, increase the level sensor's height inside the channel and Snap the sensor into place at the top, as the tab on the bottom is supposed to lock. After that, push the level sensor wires up through the connector and pull them gently down until they are locked in place, checking the placement of the signal and ground wires. Afterward, add the locking wedge to the connector and push the connector all the way up into the bottom of the rain sensing fuel pump module while you hold the body of the module in place during installation.

How to Service a Fuel Level Sensor on Chrysler Sebring?

The first step to servicing the fuel level sensor is taking out the fuel pump module. Depress the root of the small tab next to the connector to disconnect the fuel pump/fuel level sensor connector from the fuel pump module electrical connector. Following that, remove the locking wedge from the bolt. Open the black connector with a little screwdriver and carefully lift out the locking finger, then pull the fuel level sensor, ground, signal, and ground terminals from within the connector. Release the locking tab with your screwdriver and push the sensor down the assembly track to remove it and then pull it out of the mount in the module. Insert the wires from the bottom of the module into where the fuel level sensor wires are and then loop the wires into the groove at the back. After feeding the wires into place, slide the sensor up inside the channel and make sure the tab at the bottom snaps securely when you insert it. Push the signal and ground wires through the connector from the top, then pull them down until they secure. After that, put the locking wedge on the connector and push the connector up firmly into the bottom of the pump module's electrical connector. Once that's done, reinstall the fuel pump module.

OEM Chrysler Sebring Fuel Level Sensor

Gas Gauge Sensor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

14 Fuel Level Sensors found

View related parts
Chrysler Sebring Fuel Pump Part Number: 68004936AE
$450.91 MSRP: $640.00
You Save: $189.09 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module - Fuel Pump/Level Unit; Fuel Sender Assembly; Electric Fuel Pump; Fuel Level Sensor.; Fuel Gauge Sending Unit; Sending Unit
- Replaces: 68017714AC, 68004936AB, 68004936AC, 68004936AD, RL004936AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2010 Chrysler Sebring | Base, LX, Touring | 2.4L L4, 2.7L V6, 3.5L V6, 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS
View related parts
Chrysler Sebring Fuel Pump Gasket Part Number: 68304753AA
$32.23 MSRP: $47.75
You Save: $15.52 (33%)
ADD TO CART
Product Specifications
- Other Name: O Ring - Fuel Pump And Level Unit; Fuel Pump Tank Seal; Fuel Pump Seal; Fuel Pump Assembly Seal; Gasket Fuel Pump
- Replaces: 57009306AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2010 Chrysler Sebring | Base, LX, Limited, Touring | 2.4L L4, 2.7L V6, 3.5L V6, 4 Cyl 2.4 L GAS, 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS
View related parts
Chrysler Sebring Fuel Gauge Sending Unit Part Number: 4897421AB
$56.12 MSRP: $71.15
You Save: $15.03 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Level Kit - Fuel; Sending Unit; Tank Gauge
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1996-1998 Chrysler Sebring | JX, JXi | 4 Cyl 2.4 L GAS, 6 Cyl 2.5 L GAS
View related parts
Chrysler Sebring Fuel Gauge Sending Unit Part Number: 5093456AB
$92.84 MSRP: $107.00
You Save: $14.16 (14%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Level Unit - Fuel; Fuel Sender and Hanger Assembly; Fuel Tank Sending Unit; Fuel Level Sensor; Fuel Sending Unit; Level Sensor; Sending Unit; Level Unit Kit Fuel
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003-2006 Chrysler Sebring | Base, GTC, LX, LXi, Limited, TSi, Touring | 4 Cyl 2.4 L GAS, 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS
View related parts

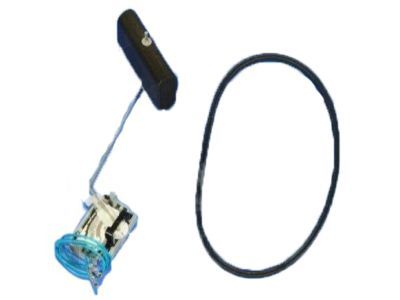

Chrysler Sebring Fuel Gauge Sending Unit Part Number: 4897865AB
Product Specifications
- Other Name: Level Kit - Fuel; Sending Unit; Tank Gauge; Level Unit Kit Fuel
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1999-2000 Chrysler Sebring | JX, JXi | 6 Cyl 2.5 L GAS
View related parts

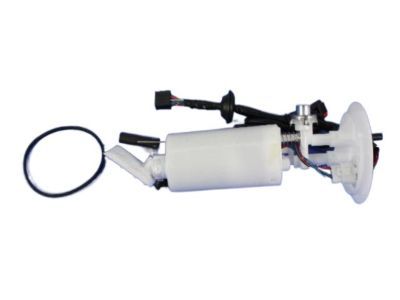

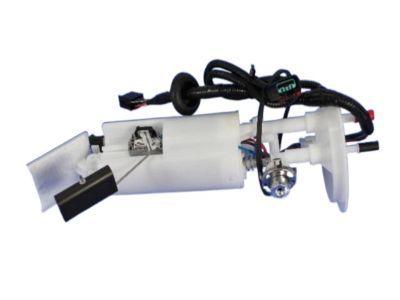

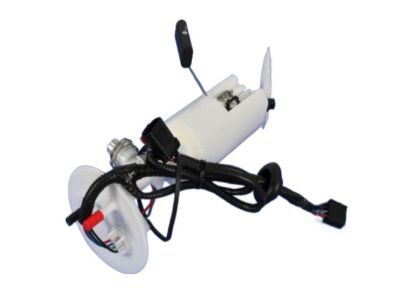

Chrysler Sebring Fuel Pump Part Number: 4897804AC
Product Specifications
- Other Name: Module Kit - Fuel Pump/Level Unit; Assembly; Sending Unit.; Module Kit Fuel Pump/Level Unit
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2000 Chrysler Sebring | JX, JXi | 6 Cyl 2.5 L GAS
View related parts
Chrysler Sebring Fuel Gauge Sending Unit Part Number: 68042934AB
Product Specifications
- Other Name: Module - Level Unit; Fuel Level Sensor; Level Sensor; Module Kit Level Unit
- Replaces: 68042934AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2010 Chrysler Sebring | LX, Limited, Touring | 2.4L L4, 2.7L V6, 3.5L V6, 4 Cyl 2.4 L GAS, 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS
View related parts

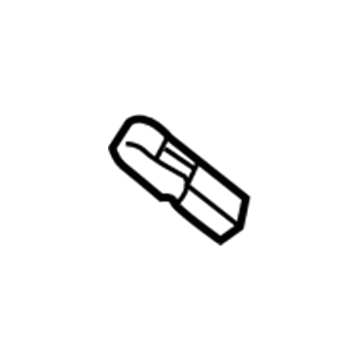

Chrysler Sebring Fuel Gauge Sending Unit Part Number: 5093458AA
Product Specifications
- Other Name: Level Unit - Fuel; Fuel Sender and Hanger Assembly; Fuel Tank Sending Unit; Fuel Level Sensor; Fuel Sending Unit; Level Sensor; Sending Unit; Level Unit Kit Fuel
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003-2006 Chrysler Sebring | Base, GTC, LX, LXi, Limited, TSi, Touring | 4 Cyl 2.4 L GAS, 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS, 6 Cyl 3.0 L GAS
View related parts

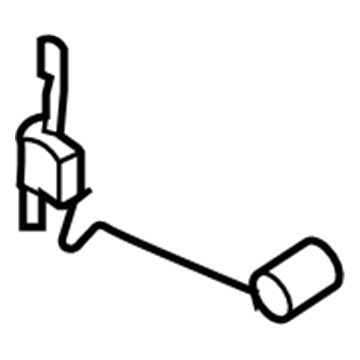

Chrysler Sebring Sending Unit Part Number: MR978154
Product Specifications
- Other Name: Level Unit - Fuel; Fuel Sender and Hanger Assembly; Fuel Tank Sending Unit; Level Unit Fuel
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003-2004 Chrysler Sebring | Base, LX, LXi, Limited | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS
View related parts

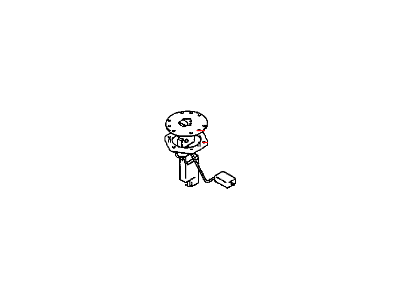

Chrysler Sebring Fuel Gauge Sending Unit Part Number: MR241078
Product Specifications
- Other Name: Level Unit - Fuel; Fuel Level Sensor; Fuel Sending Unit; Gauge Unit; Gauge Unit, Fuel Tank; Sending Unit Fuel
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1996-1998 Chrysler Sebring | LX, LXi | 4 Cyl 2.0 L GAS, 6 Cyl 2.5 L GAS
View related parts
Chrysler Sebring Sending Unit Part Number: 1718A012
Product Specifications
- Other Name: Level Unit - Fuel Tank; Fuel Sender and Hanger Assembly; Fuel Tank Sending Unit; Fuel Level Sensor; Fuel Sending Unit; Gauge Unit Fuel Tank
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2005 Chrysler Sebring | Base, Limited | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS
View related parts
Chrysler Sebring Fuel Gauge Sending Unit Part Number: 5018694AB
Product Specifications
- Other Name: Level Kit - Fuel; Fuel Sender and Hanger Assembly; Fuel Tank Sending Unit; Fuel Level Sensor; Fuel Sending Unit; Level Sensor; Sending Unit; Level Unit Kit Fuel
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2005 Chrysler Sebring | Base, GTC, LX, LXi, Limited, TSi, Touring | 4 Cyl 2.4 L GAS, 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS, 6 Cyl 3.0 L GAS
View related parts
Chrysler Sebring Fuel Pump Part Number: 5093457AB
Product Specifications
- Other Name: Module - Fuel Pump/Level Unit; Electric Fuel Pump Assembly; Fuel Sending Unit.; Module Kit Fuel Pump/Level Unit
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003-2006 Chrysler Sebring | Base, GTC, LX, LXi, Limited, TSi, Touring | 4 Cyl 2.4 L GAS, 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS, 6 Cyl 3.0 L GAS
View related parts
Chrysler Sebring Fuel Pump Part Number: 4897420AB
Product Specifications
- Other Name: Module Kit - Fuel Pump/Level Unit; Electric Fuel Pump Assembly; Fuel Level Sensor; Sending Unit.; Fuel Gauge Sending Unit
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1996-1998 Chrysler Sebring | JX, JXi | 4 Cyl 2.4 L GAS, 6 Cyl 2.5 L GAS

Chrysler Sebring Fuel Level Sensor

Choose OEM Fuel Level Sensor that meet Chrysler factory standards. Chrysler designs and tests every component for precision and durability. Each Fuel Level Sensor follows strict manufacturing steps to lock in quality and fit. If your Chrysler Sebring matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Sebring parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

Fuel Level Sensor involved in Chrysler Sebring cars plays a fundamental role of indicating the level of fuel remaining within the tank so that the driver is well informed when to refill the tank. This stays well under heat, which is an important feature for such an electronic device, and requires and is easily calibrated to consume little power. Generally installed in the fuel tank, Chrysler Sebring fuel level sensor comprises of a float, actuating rod and resistor that has the responsibility of transmitting correct signals to the fuel gauge. There may be changes in appearance from one model year to another, but the actual system of operation will not waver thus improving reliability. It is essential for the Fuel Level Senor to work properly because if not, it will give wrong signals and a car owner will feel like he needs to service his car.

Chrysler Sebring Fuel Level Sensor Parts and Q&A

Fuel Pump
68004936AE
Q: How to Install a Fuel Level Sensor in Gas Engines on Chrysler Sebring?
A:
To add the fuel level sensor to a gas engine (on a non FFV vehicle), place the sensor wires into the open hole at the base of the module, then wrap them around the groove at the back of the sensor. As you feed the wire into the guide grooves, increase the level sensor's height inside the channel and Snap the sensor into place at the top, as the tab on the bottom is supposed to lock. After that, push the level sensor wires up through the connector and pull them gently down until they are locked in place, checking the placement of the signal and ground wires. Afterward, add the locking wedge to the connector and push the connector all the way up into the bottom of the rain sensing Fuel Pump module while you hold the body of the module in place during installation.
Fuel Gauge Sending Unit
5093456AB
Q: How to Service a Fuel Level Sensor on Chrysler Sebring?
A:
The first step to servicing the fuel level sensor is taking out the Fuel Pump module. Depress the root of the small tab next to the connector to disconnect the fuel pump/fuel level sensor connector from the fuel pump module electrical connector. Following that, remove the locking wedge from the bolt. Open the black connector with a little screwdriver and carefully lift out the locking finger, then pull the fuel level sensor, ground, signal, and ground terminals from within the connector. Release the locking tab with your screwdriver and push the sensor down the assembly track to remove it and then pull it out of the mount in the module. Insert the wires from the bottom of the module into where the fuel level sensor wires are and then loop the wires into the groove at the back. After feeding the wires into place, slide the sensor up inside the channel and make sure the tab at the bottom snaps securely when you insert it. Push the signal and ground wires through the connector from the top, then pull them down until they secure. After that, put the locking wedge on the connector and push the connector up firmly into the bottom of the pump module's electrical connector. Once that's done, reinstall the fuel pump module.
