How to Safely Remove and Service a Fuel Pump Module in a Front-Wheel-Drive on Jeep Compass?

Before servicing the fuel gauge sender and unplugging the fuel pump on a front-wheel-drive vehicle, drain the fuel system pressure. Don't work near any heat or spark sources and make sure the area is well-ventilated, including avoiding smoking to lower the risk of injuries or death. As a first step, take off the air cleaner lid, unplug the inlet air temp sensor and makeup air line and finally remove the black negative battery cable. After that, lift the rear seat cushion and take off the plastic cover that it covers. Clear loose dirt and debris from the fuel tank's top. Take off the left side module lock ring with special tool #9340 and ensure the fuel pump is exactly where it should be on top of the tank for the fuel gauge to work well. Remove the module from the fuel tank and guarantee no fuel leaks into the car and drain the fuel from the pump module outside the vehicle.

How to Install and Service a Fuel Pump Module for Proper Fuel Gauge Functionality on Jeep Compass?

First, clean the tank's seal area and place a new seal inside the tank threads to ensure contact with the pump module when servicing and repairing the fuel level sensor and installing the fuel pump module for front-wheel drive vehicles. From there, have the fuel pump module module installed on one side of the tank and use the lined-up alignment tab to ensure it fits both kinds of fuel tanks correctly. Holding the pump module steady, set the lock ring in place and tighten it with Spanner Wrench #9340. Later, set the plastic back cover and the rear cushion back in place and connect the battery negative side. After that, fasten the air cleaner lid, attach the inlet air temperature sensor and the hose from the makeup air and put clean fuel in the tank. Search for leaks by using the Scan Tool to pressurize the system.

OEM Jeep Compass Fuel Pump

Gas Pump

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 Fuel Pumps found

View related parts
Jeep Compass Module - Fuel Pump/Level Unit Part Number: 5183201AH
$368.69 MSRP: $543.00
You Save: $174.31 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: MODULE-FUEL PUMP/LEVEL UNIT
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2017 Jeep Compass | 75th Anniversary, Altitude, Base, High Altitude, Latitude, Limited, Sport | 2.0L L4, 2.4L L4, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts

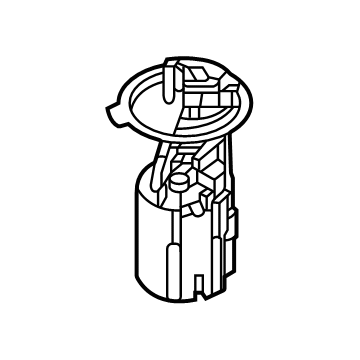

Jeep Compass Fuel Pump Part Number: 68437981AA
$69.40 MSRP: $104.00
You Save: $34.60 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module - Fuel Pump/Level Unit; Fuel Pump Assembly
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2023-2025 Jeep Compass | Altitude, High Altitude, Latitude, Latitude Lux, Limited, Red, Sport, Trailhawk | 4 Cyl 2.0 L GAS
View related parts

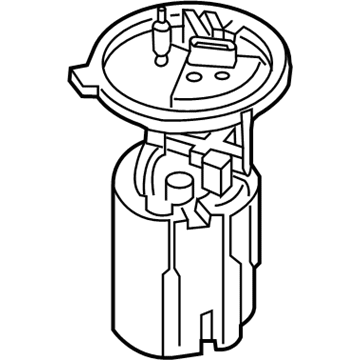

Jeep Compass Fuel Pump Assembly Part Number: 52029643AC
$102.99 MSRP: $152.00
You Save: $49.01 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Module - Fuel Pump/Level Unit; Fuel Pump and Sender Assembly; Fuel Pump
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2019 Jeep Compass | Altitude, High Altitude, Latitude, Limited, Sport, Trailhawk, Upland | 4 Cyl 2.4 L GAS
View related parts

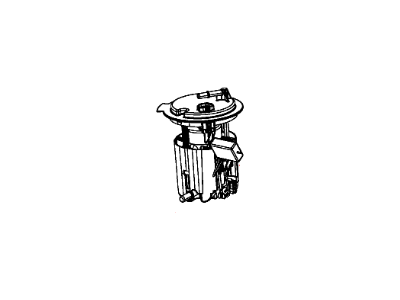

Jeep Compass Module - Fuel Pump/Level Unit Part Number: 5183202AG
$226.60 MSRP: $338.00
You Save: $111.40 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: MODULE-FUEL PUMP/LEVEL UNIT
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2017 Jeep Compass | 75th Anniversary, Altitude, Base, High Altitude, Latitude, Limited, Sport | 2.4L L4, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts

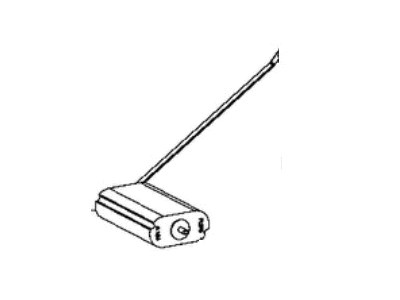

Jeep Compass Fuel Gauge Sending Unit Part Number: 68368229AB
$56.59 MSRP: $84.65
You Save: $28.06 (34%)
ADD TO CART
Product Specifications
- Other Name: Level Unit - Fuel
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2017-2024 Jeep Compass | 80th Anniversary, Altitude, High Altitude, Latitude, Latitude Lux, Limited, Red, Sport, Trailhawk, Upland | 2.4L L4, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Jeep Compass Fuel Pump Part Number: 68368228AC
$318.37 MSRP: $473.00
You Save: $154.63 (33%)
ADD TO CART
Product Specifications
- Other Name: Module - Fuel Pump/Level Unit; Fuel Pump Assembly
- Replaced by: 68368228AD
- Replaces: 68368228AA, 68368228AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2017-2022 Jeep Compass | 80th Anniversary, Altitude, High Altitude, Latitude, Latitude Lux, Limited, Red, Sport, Trailhawk, Upland | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Jeep Compass Fuel Pump Part Number: 68367970AB
$256.06 MSRP: $378.00
You Save: $121.94 (33%)
Product Specifications
- Other Name: Module - Fuel Pump/Level Unit; Fuel Pump and Sender Assembly; Fuel Sending Unit; Fuel Pump Assembly
- Replaces: 68367970AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2017-2022 Jeep Compass | 80th Anniversary, Altitude, High Altitude, Latitude, Latitude Lux, Limited, Red, Sport, Trailhawk, Upland | 4 Cyl 2.4 L GAS

Jeep Compass Fuel Pump

Choose OEM Fuel Pump that meet Jeep factory standards. Jeep designs and tests every component for precision and durability. Each Fuel Pump follows strict manufacturing steps to lock in quality and fit. If your Jeep Compass matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Compass parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

Jeep Compass cars incorporate the Fuel Pump that assists in the supply of fuel into the engine to promote combustion. It delivers fuel from the tank to the carburetor or fuel injecting system, electric pumps are commonly used in fuel injecting system. Fuel delivery to carburetors is through mechanical pumps that operate through the camshaft. Performance fuel pumps are flow rated in GPH or LPH depending on the horsepower required to drive them. The common traditional method has been to have mechanical pumps mounted on the engine however electric pumps offer higher pressures and efficiency and the modern types use pulse width modulation for durability and power conservation.

Jeep Compass Fuel Pump Parts and Q&A

Module - Fuel Pump/Level Unit
5183201AH
Q: How to Safely Remove and Service a Fuel Pump Module in a Front-Wheel-Drive on Jeep Compass?
A:
Before servicing the fuel gauge sender and unplugging the fuel pump on a front-wheel-drive vehicle, drain the fuel system pressure. Don't work near any heat or spark sources and make sure the area is well-ventilated, including avoiding smoking to lower the risk of injuries or death. As a first step, take off the air cleaner lid, unplug the inlet air temp sensor and makeup air line and finally remove the black negative Battery Cable. After that, lift the rear Seat Cushion and take off the plastic cover that it covers. Clear loose dirt and debris from the Fuel Tank's top. Take off the left side module lock ring with special tool #9340 and ensure the fuel pump is exactly where it should be on top of the tank for the fuel gauge to work well. Remove the module from the fuel tank and guarantee no fuel leaks into the car and drain the fuel from the pump module outside the vehicle.
Module - Fuel Pump/Level Unit
5183202AG
Q: How to Install and Service a Fuel Pump Module for Proper Fuel Gauge Functionality on Jeep Compass?
A:
First, clean the tank's seal area and place a new seal inside the tank threads to ensure contact with the pump module when servicing and repairing the fuel level sensor and installing the fuel pump module for front-wheel drive vehicles. From there, have the fuel pump module module installed on one side of the tank and use the lined-up alignment tab to ensure it fits both kinds of Fuel Tanks correctly. Holding the pump module steady, set the lock ring in place and tighten it with Spanner Wrench #9340. Later, set the plastic back cover and the rear cushion back in place and connect the battery negative side. After that, fasten the air cleaner lid, attach the inlet air temperature sensor and the hose from the makeup air and put clean fuel in the tank. Search for leaks by using the Scan Tool to pressurize the system.
