2006 Dodge Durango Crankshaft Position Sensor, Engine Control Module, Ignition Coil, Spark Plug

Crankshaft Position Sensor, Ignition Coil, Spark Plug Installation and Repair Tips for 2006 Dodge Durango

• Q:

  How to Install and Remove an Ignition Coil on 2006 Dodge Durango?

  A:

  Each of the spark plugs contains a separate ignition coil that is fixed to the intake manifold. The coil has a rubber boot and an O-ring used for sealing. In order to remove, disconnect the electrical connector, clean the area and twist the coil out. For installation, cleanliness, check the O-ring, and fix the coil.
• Q:

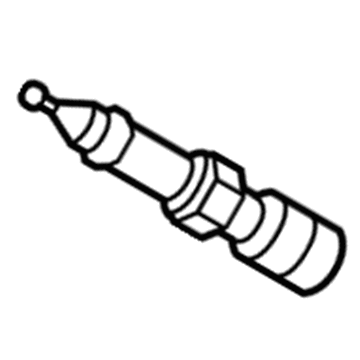

  How to properly replace Spark Plug(s) and ignition coils in a 4.7L engine on 2006 Dodge Durango?

  A:

  The ignition coils above the spark plugs may have the intake tubing removed. Air that is put under pressure is generally used anywhere along the coil base and to the cylinder. The 4.7 L engine requires copper-core plugs with a torque of 27 Nm while the 5.7 Nm specification is 18. Coil O-rings inspected and lubricated; plugs hand-started.
• Q:

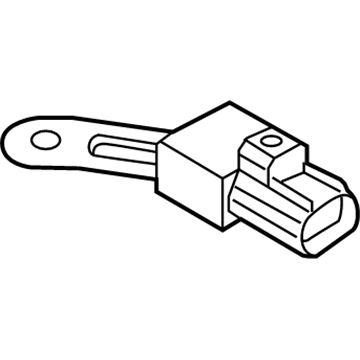

  How can the Crankshaft Position Sensor be serviced and repaired on 2006 Dodge Durango?

  A:

  To work on the crankshaft position sensor, one usually lifts the vehicle and disconnects the connector. The sensor is inspected by removing the bolt and pulling it out with a small twist while inspecting the O -ring, cleaning the bore and lightly oiling the O -ring. The sensor is reinstalled flush and the bolt is torqued to 28 Nm.
