2007 Dodge Caliber Clock Spring, Airbag, Air Bag Control Module, Air Bag Sensor

Air Bag Control Module, Air Bag Sensor, Airbag, Clock Spring Installation and Repair Tips for 2007 Dodge Caliber

• Q:

  How to Safely Remove the Airbag from the Front Seat on 2007 Dodge Caliber?

  A:

  In order to extract the air bag, the front seat has to be moved towards the front to get access to it, disconnect the battery and wait two minutes. Test, take off the seat without breaking the nylon pouch that holds the air bag. Unscrew air bag connector, unscrew securing nuts, and slide air bag out without damaging parts.
• Q:

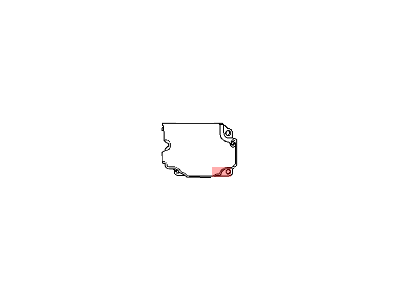

  How to Safely Install the Air Bag Control Module to Ensure Proper Functionality on 2007 Dodge Caliber?

  A:

  To install the Air Bag Control Module, you will need to make sure that the ORC covering panel is in place. Insert the ORC and connect the two connectors and fix them with three retaining nuts screwed up to 9 Nm. Install the floor shifter bezel, do not connect the battery negative cable until after the system test.
• Q:

  How to Safely and Correctly Install a Clock Spring Assembly on 2007 Dodge Caliber?

  A:

  The Clock Spring assembly is installed by turning off the supplemental restraint system by disconnecting the battery negative cable. Make sure that the Clock Spring is pre-centered and the steering wheel is straight. Clock Spring: screw on the Clock Spring, multifunction switches are to be re-installed, and shrouds should be added. Before the system is tested, remove the locking pin.
• Q:

  How to Service the Air Bag Sensor Located in the B-Pillar on 2007 Dodge Caliber?

  A:

  To service the B-pillar impact sensor, disconnect the battery negative cable and wait two minutes for the capacitor to discharge. Remove the B-pillar lower trim panel, disconnect harness connector 4 from the sensor, remove the retaining screw, and then take the sensor out of the vehicle.
