2008 Chrysler Pacifica Clock Spring, Airbag, Air Bag Control Module, Air Bag Sensor

Air Bag Sensor, Airbag, Clock Spring Installation and Repair Tips for 2008 Chrysler Pacifica

• Q:

  How to Safely Remove the Passenger Airbag on 2008 Chrysler Pacifica?

  A:

  To remove the passenger air bag, disconnect the battery negative cable and wait two minutes. Remove the glove box assembly unscrew the air bag from instrument panel, detach it from the cross-car beam, disconnect the electrical connector and finally get the air bag out through the glove box opening.
• Q:

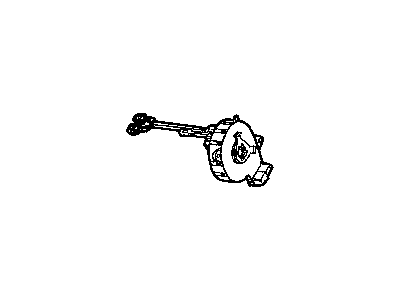

  How to Remove and Replace a Clock Spring Assembly on 2008 Chrysler Pacifica?

  A:

  To replace the Clock Spring Assembly, make sure the steering wheel is straight then disconnect the battery and wait for two minutes. Remove the driver air bag, steering wheel and column shrouds. In order to remove a Clock Spring from a meter, disconnect wire harnesses, unscrew the Clock Spring case, and remove it. Replace if damaged; attach rotor if reusing.
• Q:

  How to Install Air Bag Sensors for Front and Side Impact on 2008 Chrysler Pacifica?

  A:

  Installation of the front impact sensor involves positioning, connecting, electrical connector 4 and tightening with two screws with a tightening force of 8.5 Nm. In the case of B- and C-pillar side impact sensors, position, connect, and screw tightened to 7 Nm. Make sure the battery negative cable is removed, and do some testing and then close the hood.
