2008 Dodge Nitro Camshaft, Timing Chain, Timing Cover, Cam Gear

Camshaft, Timing Chain, Timing Cover Installation and Repair Tips for 2008 Dodge Nitro

• Q:

  How to Remove and Replace a Timing Chain on 2008 Dodge Nitro?

  A:

  In order to change the timing chain and the sprockets, one is supposed to disconnect the battery, empty the cooling system, and take off the cylinder head covers and the radiator fan shroud. position marks on timing, take out required parts, and take off sprockets and chains carefully. And lastly, eliminate tensioner arms and chain guides.
• Q:

  How to Remove the Left Camshaft on 2008 Dodge Nitro?

  A:

  In order to remove the left camshaft, it is best not to rotate the timing chain on its own as it will cause damage. Removal components Use Wedge Locking Tool 8379. Select the engine cylinder number 1, mark time chain and tie tensioners. Install Camshaft Holder 8428 when removing and mark rocker arms.
• Q:

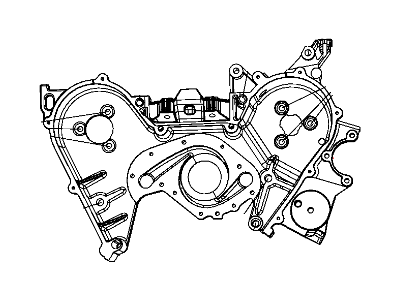

  How to Install a Timing Cover on a 3.7L Engine on 2008 Dodge Nitro?

  A:

  In order to install the timing cover, the surfaces should be cleaned with rubbing alcohol and Mopar(R) Grey Engine RTV rather than a gasket should be used. Inspect and replace damaged o-rings, apply RTV, tighten fasteners to 58 Nm. Install crankshaft damper, hoses, fan shroud and fill the cooling system.
