2009 Dodge Charger Clock Spring, Airbag, Air Bag Control Module, Air Bag Sensor

Air Bag Control Module, Air Bag Sensor, Airbag, Clock Spring Installation and Repair Tips for 2009 Dodge Charger

• Q:

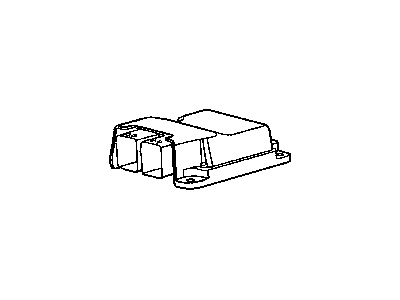

  How to Safely and Correctly Install an Air Bag Control Module on 2009 Dodge Charger?

  A:

  To fit the Occupant Restraint Controller (ORC) on the vehicle, the Supplemental Restraint System (SRS) should first be switched off by disconnection of the battery negative cable. Be sure to keep the ORC in place with three screws. Install the center floor console again, and then reconnect the wire harness connectors, but not the battery, until SRS tests are done.
• Q:

  How to Safely Remove an Air Bag Sensor from the Front and Side Impact Areas on 2009 Dodge Charger?

  A:

  To take off the front impact sensor, remove the battery negative cable and wait two minutes to discharge the air bag system. For the left sensor, get rid of the air intake system. For B- and C-pillar sensors disconnect the battery, wait, remove the trim panel and disconnect the electrical connectors.
• Q:

  How to Replace Deployed and Non-Deployed Passenger Airbags on 2009 Dodge Charger?

  A:

  For deployed passenger air bags, instrument panel top pad replacement, cleaning up residue and transferring reusable components. Install the new air bag and attach it using bolts and screws. For air bags that are not deployed, place and fix them in a similar manner. Complete by installing glove box assembly - Avoid connecting battery until testing.
• Q:

  How to Safely Service the Steering Column Control Module with a Clock Spring on 2009 Dodge Charger?

  A:

  To maintain the SCCM, take all the assembly out so that history does not harm the Clock Spring pins. Make sure that the steering wheel and front tires are straight. When the SCCM is removed, then Clock Spring, and center it, clockwise and counterclockwise. And, lastly, install the SCCM and do not connect the battery until after testing.
