How to Service the ABS Control Module on 2005 Chrysler Sebring?

Before servicing the Electronic Brake Control Module, take off the negative cable and lift the car. Raise up on the connector lock to disconnect the 24-way electrical connector and the pump/motor connector from the Cab. Take out the bolts holding the integrated control unit mounting bracket to the lower radiator support, then move the Icu toward the right side of the car so as not to bend the brake tubes linked to it. Loose the screws and take out the Cab from the part of the Icu that holds the Hcu. Use screws and tighten them to a torque of 2 Nm (17 inch lbs.) and attach the Cab to the half of the Icu closest to the Hcu during installation. Replace the Icu mounting bracket on the lower radiator support and tighten all the bolts to 28 Nm (21 ft. lbs.). Attach the 24-way electrical and pump/motor connectors, drop the vehicle down and change the negative battery cable. After that, link a Drbiii(R) to the car and start the initialization process.

OEM 2005 Chrysler Sebring ABS Control Module

Anti Lock Brake Control Module

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 ABS Control Modules found

View related parts

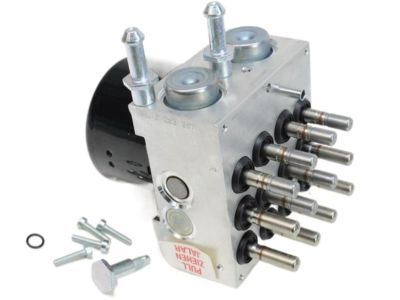

2005 Chrysler Sebring Modulator Valve Part Number: 5142283AA
Product Specifications
- Other Name: HCU - ABS; ABS Hydraulic Assembly; ABS Control Module; ABS Control Unit; Modulator; Hydraulic Control Unit Anti-Lock Brake System
- Item Weight: 5.20 Pounds
- Item Dimensions: 8.3 x 6.1 x 5.1 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 5142283AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
More Info
Fits the following 2005 Chrysler Sebring Submodels:
- Base, GTC, Limited, TSi, Touring | 4 Cyl 2.4 L GAS, 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS
View related parts
2005 Chrysler Sebring Modulator Valve Part Number: MR370625
Product Specifications
- Other Name: Master Cylinder - Anti-Lock Brake System; ABS Hydraulic Assembly; ABS Control Module; Modulator; Hydraulic Control Unit Anti-Lock Brake System
- Item Weight: 7.90 Pounds
- Condition: New
- Fitment Type: Direct Replacement
- SKU: MR370625
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following 2005 Chrysler Sebring Submodels:
- Base, GTC, LX, LXi, Limited, TSi, Touring | 4 Cyl 2.4 L GAS, 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS, 6 Cyl 3.0 L GAS
View related parts
2005 Chrysler Sebring Control Module Part Number: MR370624
Product Specifications
- Other Name: Master Cylinder - Anti-Lock Brake System; ABS Hydraulic Assembly; Modulator Valve; Modulator; Hydraulic Control Unit Anti-Lock Brake System
- Item Weight: 6.70 Pounds
- Condition: New
- Fitment Type: Direct Replacement
- SKU: MR370624
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following 2005 Chrysler Sebring Submodels:
- Base, GTC, LX, LXi, Limited, TSi, Touring | 4 Cyl 2.4 L GAS, 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS, 6 Cyl 3.0 L GAS
View related parts
2005 Chrysler Sebring Control Module Part Number: 5159191AA
Product Specifications
- Other Name: Control - Anti-Lock Brakes; ABS Control Module; ABS Control Unit; Module Anti-Lock Brakes
- Item Weight: 2.40 Pounds
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 5159191AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following 2005 Chrysler Sebring Submodels:
- Base, GTC, Limited, TSi, Touring | 4 Cyl 2.4 L GAS, 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS

2005 Chrysler Sebring ABS Control Module Parts and Q&A

Q: How to Service the ABS Control Module on 2005 Chrysler Sebring?
A: Before servicing the Electronic Brake Control Module, take off the negative cable and lift the car. Raise up on the connector lock to disconnect the 24-way electrical connector and the pump/motor connector from the Cab. Take out the bolts holding the integrated control unit mounting bracket to the lower radiator support, then move the Icu toward the right side of the car so as not to bend the brake tubes linked to it. Loose the screws and take out the Cab from the part of the Icu that holds the Hcu. Use screws and tighten them to a torque of 2 Nm (17 inch lbs.) and attach the Cab to the half of the Icu closest to the Hcu during installation. Replace the Icu mounting bracket on the lower radiator support and tighten all the bolts to 28 Nm (21 ft. lbs.). Attach the 24-way electrical and pump/motor connectors, drop the vehicle down and change the negative battery cable. After that, link a Drbiii(R) to the car and start the initialization process.
