How to Service and Repair a Left Engine Mount on Chrysler Concorde?

Service the left engine mount by hoisting the vehicle and then taking off the connecting nuts from the mounting bracket. Support the vehicle's front with a jack and a wooden block. Remove the isolator-to-frame lower support nuts with the nut wrench. Use the jack to elevate the engine just enough to be able to pull away the isolator with the heat shield from its mount. Put the isolator mount with the heat shield onto the frame and lay the engine onto the mount. When you remove the jack, tighten the isolator to frame nuts and affix the upper attaching nuts to the mount, with both being tightened to 61 Nm (45 ft. lbs.). Now, park the vehicle at ground level.

How to Service and Repair a Rear Engine Mount on Chrysler Concorde?

Before touching the rear engine mount, lift the car on a hoist and then support the transaxle with a jack. Remove the two nuts attached to the mount at the transaxle mount bracket and then slaughter the bolts that secured the isolator to the crossmember. To install, slide the isolator onto the crossmember, put the bolts in place and tighten them to 33 Nm (250 in. lbs.). Place the lower part of the transaxle on the isolator, below the other part. Next, attach the isolator nuts and fix them by tightening them to a torque of 61 Nm (45 ft. lbs.). In the end, lower the vehicle.

OEM Chrysler Concorde Engine Mount

Engine Motor Mount

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

13 Engine Mounts found

View related parts
Chrysler Concorde Front Mount, Driver Side Part Number: 4593287AB
$27.86 MSRP: $160.00
You Save: $132.14 (83%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Support - Engine Support; Engine Mount, Left; Engine Mount Torque Strut; Engine Mount Bracket; Motor Mount; Front Insulator; Mount
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1998-2004 Chrysler Concorde | LXi, Limited | 6 Cyl 3.2 L GAS, 6 Cyl 3.5 L GAS
View related parts
Chrysler Concorde Mounting Bracket, Passenger Side Part Number: 4593182
Product Specifications
- Other Name: Bracket - Engine Mount; Engine Mount Bracket, Right; Engine Mount Torque Strut; Motor Mount; Mount Bracket; Bracket Engine Mount; Engine Mount Bracket
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1998-2004 Chrysler Concorde | LXi, Limited | 6 Cyl 3.2 L GAS, 6 Cyl 3.5 L GAS
View related parts
Chrysler Concorde Front Mount, Passenger Side Part Number: 4593184AB
Product Specifications
- Other Name: Support - Engine Support; Engine Mount, Front, Front Right, Right; Engine Mount Bracket; Motor Mount; Mount
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1998-2004 Chrysler Concorde | LX, LXi, Limited | 6 Cyl 2.7 L GAS, 6 Cyl 3.2 L GAS, 6 Cyl 3.5 L GAS
View related parts

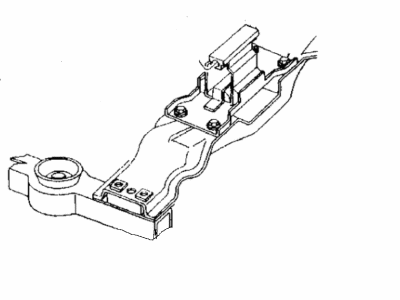

Chrysler Concorde Mount Part Number: 4663228
Product Specifications
- Other Name: Support; Engine Mount Bracket; Transmission Mount; Motor Mount; Support Assembly, Transmission Mount; Support Transmission Mount
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1993-1997 Chrysler Concorde | Base, LX, LXi | 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS, 6 Cyl 3.5 L GAS
View related parts
Chrysler Concorde Front Mount, Driver Side Part Number: 4593285AB
Product Specifications
- Other Name: Support - Engine Support; Engine Mount, Front, Front Left, Left; Engine Mount Bracket; Motor Mount; Mount
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1998-2004 Chrysler Concorde | LX, LXi, Limited | 6 Cyl 2.7 L GAS, 6 Cyl 3.2 L GAS, 6 Cyl 3.5 L GAS
View related parts
Chrysler Concorde Mounting Bracket, Driver Side Part Number: 4593245
Product Specifications
- Other Name: Bracket - Engine Mount; Engine Mount Bracket, Left; Engine Mount Torque Strut; Motor Mount; Mount Bracket; Bracket Engine Mount; Engine Mount Bracket
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1998-2004 Chrysler Concorde | LXi, Limited | 6 Cyl 3.2 L GAS, 6 Cyl 3.5 L GAS
View related parts

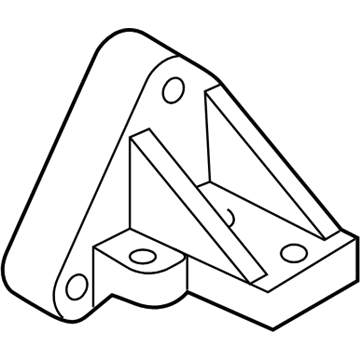

Chrysler Concorde Mount Bracket, Passenger Side Part Number: 4593244
Product Specifications
- Other Name: Bracket - Engine Mount; Engine Mount Bracket, Right; Engine Mount Torque Strut; Motor Mount; Front Bracket; Bracket Engine Mount; Engine Mount Bracket
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1998-2004 Chrysler Concorde | LX | 6 Cyl 2.7 L GAS
View related parts
Chrysler Concorde Mount Bracket, Driver Side Part Number: 4593243
Product Specifications
- Other Name: Bracket - Engine Mount; Engine Mount Bracket, Left; Engine Mount Torque Strut; Motor Mount; Front Bracket; Bracket Engine Mount; Engine Mount Bracket
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1998-2004 Chrysler Concorde | LX | 6 Cyl 2.7 L GAS
View related parts
Chrysler Concorde Front Mount Bracket Part Number: 4593241
Product Specifications
- Other Name: Bracket Engine Mounting Left; Insulator Bracket; Mount; Bracket, Engine Mount Left; Bracket Engine Mount
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1996-1997 Chrysler Concorde | LX, LXi | 6 Cyl 3.5 L GAS
View related parts
Chrysler Concorde Support Bracket Part Number: 4593240
Product Specifications
- Other Name: Bracket Engine Mounting Right; Engine Mount Torque Strut; Engine Mount Bracket; Motor Mount; Front Mount Bracket; Rear Mount Bracket; Insulator Bracket; Mount; Bracket, Engine Mount Right; Bracket Engine Mount
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1996-1997 Chrysler Concorde | LX, LXi | 6 Cyl 3.5 L GAS
View related parts
Chrysler Concorde Front Mount Part Number: 4593239
Product Specifications
- Other Name: Support - Engine Mount; Mount; Insulator; Insulator Assembly, Engine (Must BE Replaced In Pairs); Support Engine Mount
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1996-1997 Chrysler Concorde | LX, LXi | 6 Cyl 3.3 L GAS, 6 Cyl 3.5 L GAS
View related parts
Chrysler Concorde Rear Mount Part Number: 4663228AB
Product Specifications
- Other Name: Insulator - Transmission Mount; Rear Insulator
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1993-1997 Chrysler Concorde | Base, LX, LXi | 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS, 6 Cyl 3.5 L GAS
View related parts
Chrysler Concorde Front Mount Part Number: 4663526AB
Product Specifications
- Other Name: Support - Engine Mount; Front Insulator; Mount; Insulator
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1993-1996 Chrysler Concorde | Base, LX, LXi | 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS, 6 Cyl 3.5 L GAS

Chrysler Concorde Engine Mount

Choose OEM Engine Mount that meet Chrysler factory standards. Chrysler designs and tests every component for precision and durability. Each Engine Mount follows strict manufacturing steps to lock in quality and fit. If your Chrysler Concorde matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Concorde parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

Chrysler Concorde Engine Mount is indeed the vital one which is highly acclaimed for reliability and performance that is a key component of Chrysler Concorde automobiles. To reduce generation of noise and vibrations due to operation of the engine, the Engine Mount mounts the engine and transaxle to the chassis firmly and isolates the vibrations and on the whole enhances the safety and comfort of the driver. The usefulness and application of rubber bumper on Chrysler Concorde's models like LX, LXi, and Limited proves its relevance and significance in upholding the structural stability of cars. This product has sophisticated designs for engine mount; for instance, there are Hydraulic mounts which have enhanced capability of absorbing Concorde Communication Chrysler Engine Mount vibrations as well as the Electronic active mounts which have enhanced capability of changing their stiffness depending on the engine speed. In addition to providing improved comfort, it also pays to the vehicle's efficiency due to the right positioning of the engine. Eventually, some components of Chrysler Concorde Engine Mounts suffer water and heat damages; thus, they should be inspected regularly to avoid future breakdowns. Thus, this Engine Mount is not just about offering support; rather, it is an important component of the safety and functional use of a vehicle. Currently Chrysler Concorde Engine Mount assimilates traditional and modern mounting techniques that make it a unique marvel in the automobile market and guarantees chryslers continuing relevance to drivers in their quest for a full-sized comfortable sedan car.

Chrysler Concorde Engine Mount Parts and Q&A

Front Mount, Driver Side
4593285AB
Q: How to Service and Repair a Left Engine Mount on Chrysler Concorde?
A:
Service the left engine mount by hoisting the vehicle and then taking off the connecting nuts from the mounting bracket. Support the vehicle's front with a jack and a wooden block. Remove the isolator-to-frame lower support nuts with the nut wrench. Use the jack to elevate the engine just enough to be able to pull away the isolator with the heat shield from its mount. Put the isolator mount with the heat shield onto the frame and lay the engine onto the mount. When you remove the jack, tighten the isolator to frame nuts and affix the upper attaching nuts to the mount, with both being tightened to 61 Nm (45 ft. lbs.). Now, park the vehicle at ground level.
Mount Bracket, Passenger Side
4593244
Q: How to Service and Repair a Rear Engine Mount on Chrysler Concorde?
A:
Before touching the rear engine mount, lift the car on a hoist and then support the transaxle with a jack. Remove the two nuts attached to the mount at the transaxle mount bracket and then slaughter the bolts that secured the isolator to the crossmember. To install, slide the isolator onto the crossmember, put the bolts in place and tighten them to 33 Nm (250 in. lbs.). Place the lower part of the transaxle on the isolator, below the other part. Next, attach the isolator nuts and fix them by tightening them to a torque of 61 Nm (45 ft. lbs.). In the end, lower the vehicle.
