How to Remove and Service a Wiper Motor on Chrysler PT Cruiser?

First, start by opening the hood and taking out the battery negative cable. Pinch the cover above the nut, then pull it up and to the side with the trim stick, then gently remove the wiper's retaining nut. Pull your arm out of the pivot by gently rocking your body toward the center and then down. After that, open the cowl cover and be sure to remove the rear engine compartment seal first at the cowl. After that, remove all the push retainers on the right side cover and all but one on the left side cover and then take both cowl covers off. Pull the connector off the front wiper motor posi-lock harness and remove all three bolts fastening the front wiper module to the vehicle. If changing the wiper linkage, move the wiper motor to the replacement linkage by disconnecting its drive link from the crank ball joint and then removing the three screws holding the motor to the linkage.

How to Properly Install and Service a Wiper Motor on Chrysler PT Cruiser?

Before the installation begins, activate the wiper system to position the wiper module in the PARK slot and to place the wiper arm's tip on the park line on the window. During rear wiper motor servicing, replace both of the rubber well-nuts above the motor. Apply three bolts to the rear wiper motor and tighten the screws with a torque reading of 6.5 Nm (60 in. lbs.). Connect the clips on the harness connector and then install the liftgate trim panel. Screw the wiper arm into position on the pivot, afterward, tighten the wiper arm retaining nut to 18-20 Nm (160-175 in. lbs.). Secure the rear wiper arm nut, attach the cable to the battery's negative terminal and put on the hood.

OEM Chrysler PT Cruiser Wiper Motor

Windshield Wiper Motor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Wiper Motors found

View related parts
Chrysler PT Cruiser Wiper Motor Part Number: 4857931AD
$210.00 MSRP: $315.00
You Save: $105.00 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor, Liftgate Wiper; Back Glass Wiper Motor; Rear Motor; Motor Liftgate Wiper
- Replaces: 4857931AC, 4857931AA, 4857931AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2004-2010 Chrysler PT Cruiser | Base, Classic, Couture Edition, Dream Cruiser, GT, LX, Limited, Street Cruiser, Touring | 2.4L L4, 4 Cyl 2.4 L GAS
View related parts

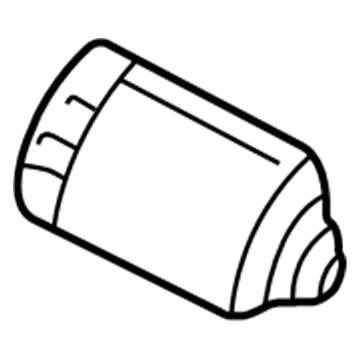

Chrysler PT Cruiser Wiper Motor Part Number: 5175910AA
$113.42 MSRP: $170.00
You Save: $56.58 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor - Windshield Wiper; Windshield Wiper Motor; Front Motor; Motor; Motor Windshield Wiper
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2006-2010 Chrysler PT Cruiser | Base, Classic, Couture Edition, GT, LX, Limited, Street Cruiser, Touring | 4 Cyl 2.4 L GAS
View related parts
Chrysler PT Cruiser Wiper Motor Part Number: 5018450AA
Product Specifications
- Other Name: Motor - Windshield Wiper; Windshield Wiper Motor; Front Motor; Motor; Motor Windshield Wiper
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2005 Chrysler PT Cruiser | Base, Dream, Dream Cruiser, GT, Limited, Street Cruiser, Touring | 4 Cyl 2.4 L GAS
View related parts
Chrysler PT Cruiser Wiper Motor Part Number: 4717710AD
Product Specifications
- Other Name: Motor, Liftgate Wiper; Back Glass Wiper Motor; Rear Motor; Motor Liftgate Wiper
- Replaces: 5018406AC, 5018406AA, 4717710AB, 5018406AB, 4717710AC, 5073282AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2003 Chrysler PT Cruiser | Base, Dream, GT, Limited, Touring | 2.4L L4, 4 Cyl 2.4 L GAS

Chrysler PT Cruiser Wiper Motor

Choose OEM Wiper Motor that meet Chrysler factory standards. Chrysler designs and tests every component for precision and durability. Each Wiper Motor follows strict manufacturing steps to lock in quality and fit. If your Chrysler PT Cruiser matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine PT Cruiser parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

Wiper Motor in Chrysler PT Cruiser cars is such a small yet very important automotive part in the sense that it is responsible for the control of the windshield wipers so that rain and other micro particles that obscure visibility can be wiped off. This electric motor rotates at different speeds to enable drivers change the speed of wiper in relation to the weather. Original Chrysler PT Cruiser Wiper Motors are possible to be bought but the refurbished ones are also available in the market. New Wiper Motors are usually purchased directly from the manufacturer while refurbished means that it is a used one that has been upgraded with new parts making it be as efficient as the new one in the market. This variety means that everyone with a Chrysler PT Cruiser will be in a position to find the optimal solution in terms of maintenance of their wipers while at the same time having a more reliable wiper at their disposal.

Chrysler PT Cruiser Wiper Motor Parts and Q&A

Wiper Motor
4857931AD
Q: How to Remove and Service a Wiper Motor on Chrysler PT Cruiser?
A:
First, start by opening the hood and taking out the battery negative cable. Pinch the cover above the nut, then pull it up and to the side with the trim stick, then gently remove the wiper's retaining nut. Pull your arm out of the pivot by gently rocking your body toward the center and then down. After that, open the cowl cover and be sure to remove the rear engine compartment seal first at the cowl. After that, remove all the push retainers on the right side cover and all but one on the left side cover and then take both cowl covers off. Pull the connector off the front wiper motor posi-lock harness and remove all three bolts fastening the front wiper module to the vehicle. If changing the wiper linkage, move the wiper motor to the replacement linkage by disconnecting its drive link from the crank ball joint and then removing the three screws holding the motor to the linkage.
Wiper Motor
5175910AA
Q: How to Properly Install and Service a Wiper Motor on Chrysler PT Cruiser?
A:
Before the installation begins, activate the wiper system to position the wiper module in the PARK slot and to place the Wiper Arm's tip on the park line on the window. During rear wiper motor servicing, replace both of the rubber well-nuts above the motor. Apply three bolts to the rear wiper motor and tighten the screws with a torque reading of 6.5 Nm (60 in. lbs.). Connect the clips on the harness connector and then install the liftgate trim panel. Screw the wiper arm into position on the pivot, afterward, tighten the wiper arm retaining nut to 18-20 Nm (160-175 in. lbs.). Secure the rear wiper arm nut, attach the cable to the battery's negative terminal and put on the hood.
