OEM Dodge Ram 1500 Shift Cable

Dodge Ram 1500 Shift Cable Parts and Q&A

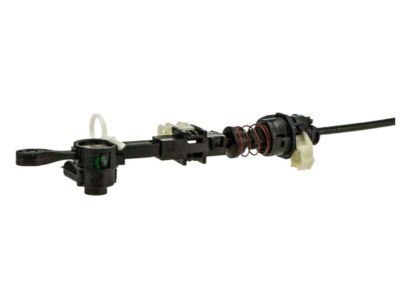

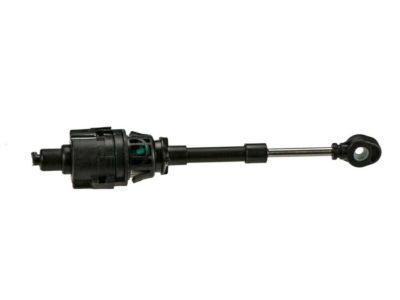

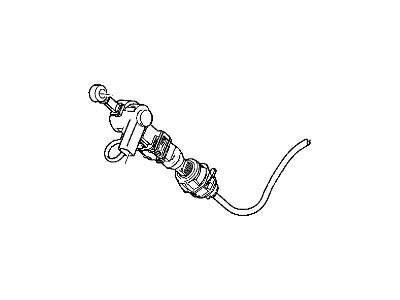

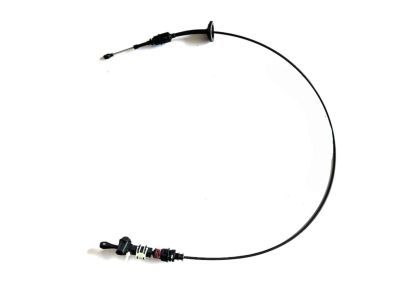

• Shift Control Cable
  52107846AJ
  Q: How to Maintain and Fix a Shift Cable on Dodge Ram 1500?

  A:

  Begin by parking the car in PARK and lifting it on jacks. Take the cable eyelet off the shift lever and draw the cable adjuster out of its mount. Drop the gearbox and detach the insulated panel over the dash to get the boot end of the grommet out of the panel. Unless the trim is needed, strip it away so you can access the cable, release the BTSI wiring connector, cut the lower column bracket cable and bring it into the vehicle from the dash opening. Take the gearshift cable out from the vehicle. To install the cable, run its transmission end through the opening in the dash panel and push the cable grommet into this opening. Clamp the cable into the bracket on the steering column so the retaining ears lock into place and cover the cable eyelet over the ball stud on the shift lever. Raise the vehicle again, put the manual shift lever into PARK and turn the propeller shaft to make sure the transmission is in PARK. Send the gearshift cable via the transmission mounting bracket and fasten the cable using the cable retaining ears fitted into the bracket and the manual shift lever ball stud. Drop the transmission from high to low, then pin the cable adjuster lock tab downward until you hear it lock into place, check that the transmission range sensor operates properly and modify the gearshift cable and BTSI mechanism as needed.

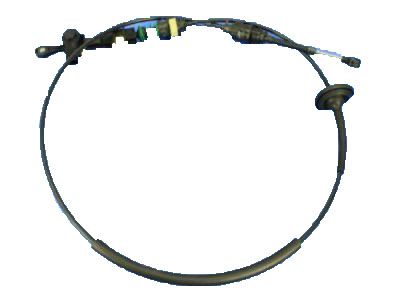

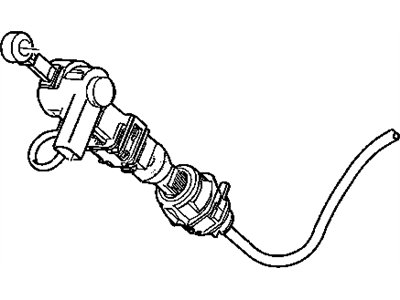

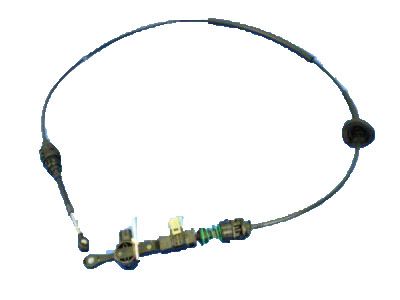

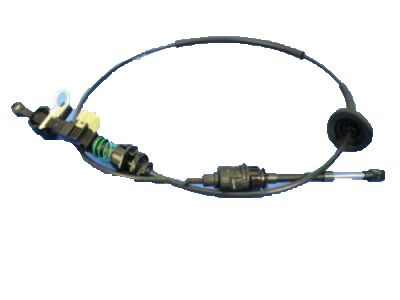

• Shift Control Cable
  52107847AM
  Q: How to Remove the Shift Cable on Dodge Ram 1500?

  A:

  To remove the shift cable, select PARK on the gearbox and then raise your car. Take the transmission manual shift lever into your hand and remove the cable eyelet connected to it. Then completely pull the cable adjuster out of the bracket. Take away the car's vehicle and, when needed, pull out the dash insulation to expose the grommet of the gearshift cable. Open up the dash panel and once the grommet is removed, take off any needed trim from the steering column to reach the gearshift cable and BTSI mechanism. Take the connector off at the BTSI wiring, then remove the cable from the lower column bracket and shift lever pin, taking the cable through the opening in the dash panel into the vehicle. After everything else is done, remove the gearshift cable.
