OEM Dodge Ram 3500 Van Speed Sensor

Dodge Ram 3500 Van Speed Sensor Parts and Q&A

• Vehicle Speed Sensor
  56028183
  Q: Is the tone wheel for the front speed sensor a serviceable component, and what must be done if it is damaged on Dodge Ram 3500 Van?

  A:

  Because the tone wheel for the front speed sensor is part of the hub and is not serviceable, if it is damaged, the whole hub and rotor will have to be changed.

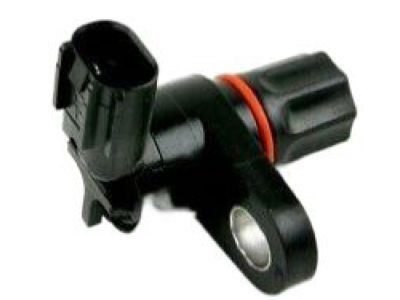

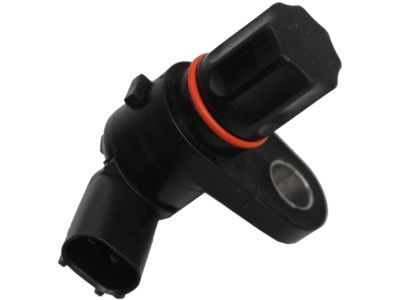

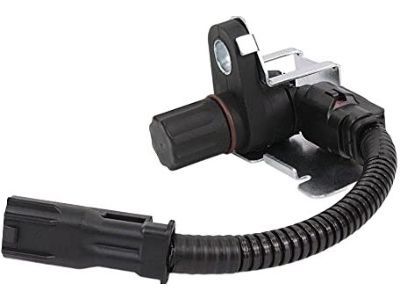

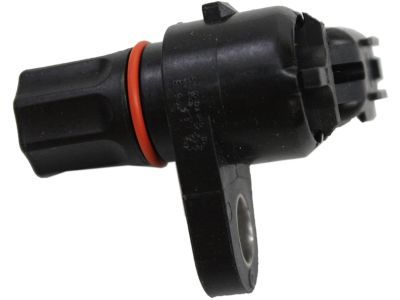

• ABS Sensor, Rear
  56028187AE
  Q: How to service the rear wheel speed sensor on the antilock brake system on Dodge Ram 3500 Van?

  A:

  Elevate the vehicle on a hoist to start maintaining the rear wheel antilock brake system. Unscrew the mounting nut on the brake line and take off the brake line from the sensor stud. After that, remove the mounting stud from both the sensor and shield and pull the sensor and shield away from the differential housing. Unconnect the wire harness coming from the sensor and get rid of the sensor. To install the harness, link it to the sensor, making sure the seal stays secure between the sensor and wiring. Should the O-ring have been removed, install it on the sensor before you fit the sensor to the differential housing. Insert the sensor shield and make sure the sensor mounting stud is secure after you've tightened it to 24 Nm (18 ft. lbs.). Secure the brake line to the sensor stub once more and then add and tighten the nut before letting go of the vehicle.
