How to install a battery tray on Dodge Sprinter 3500?

You should first clean and check the auxiliary battery tray 2 before beginning the installation process. Fit battery tray 2 onto the inner steel panel of the left front wheelhouse. Installing and tightening the bolts 1 on the battery tray's left front bracket to the wheelhouse inner steel panel is important, ensuring the screws are torqued to 11.8 Nm (105 in. lbs.). Then, set the auxiliary battery onto the auxiliary battery tray.

How to Service and Repair a Battery Tray on Dodge Sprinter 3500?

The battery and battery temperature sensor should be take out of the battery tray first before proceeding to service the tray. After that, remove the bolts securing the battery tray to the tray support and lift out the tray from the vehicle. Be sure to clean and examine the battery tray before laying it onto the battery tray support. Both the top and bottom bolts must be installed and tightened to reach 11.8 N.m (105 in. lbs.). After that, set the battery temperature sensor on the tray and securely put the battery in its original spot.

OEM Dodge Sprinter 3500 Battery Tray

Battery Box

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

3 Battery Trays found

View related parts

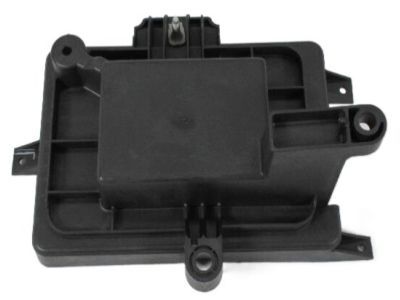

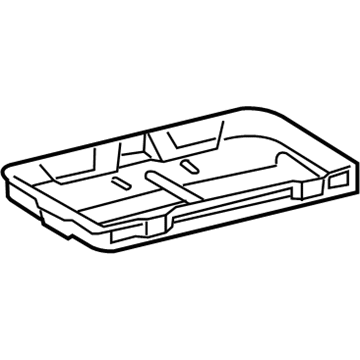

Dodge Sprinter 3500 Battery Tray, Front Center Part Number: 5122170AA
Product Specifications
- Other Name: Tray - Battery; Battery Tray, Front Center; Seat Frame; Tray Battery; Riser Seat
- Position: Front Center
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2005-2006 Dodge Sprinter 3500 | Base | 5 Cyl 2.7 L DIESEL
View related parts

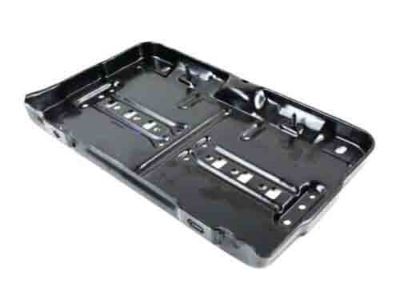

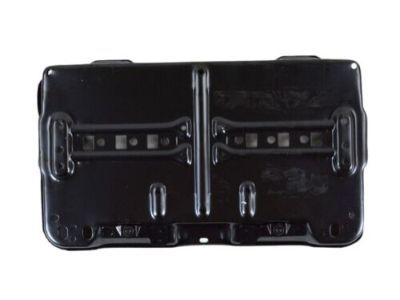

Dodge Sprinter 3500 Battery Tray Part Number: 5104592AA
Product Specifications
- Other Name: Tray - Battery; Tray Battery
- Replaces: 5125223AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2002-2006 Dodge Sprinter 3500 | Base | 2.7L L5, 5 Cyl 2.7 L DIESEL
View related parts

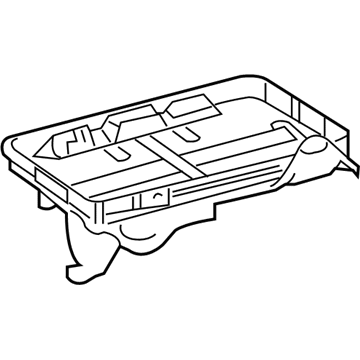

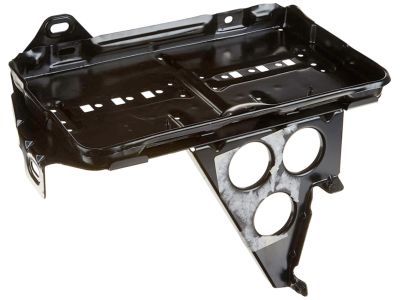

Dodge Sprinter 3500 Battery Tray Part Number: 68011034AA
Product Specifications
- Other Name: Tray - Battery; Tray Battery
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2009 Dodge Sprinter 3500 | Base | 6 Cyl 3.0 L DIESEL, 6 Cyl 3.5 L GAS

Dodge Sprinter 3500 Battery Tray

Choose OEM Battery Tray that meet Dodge factory standards. Dodge designs and tests every component for precision and durability. Each Battery Tray follows strict manufacturing steps to lock in quality and fit. If your Dodge Sprinter 3500 matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Sprinter 3500 parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

The Dodge Sprinter 3500 Battery Tray is an important component that is famous over the time for its specific ability to cover up the battery in many different models of Dodge Sprinter 3500. This Battery Tray is specifically used to avoid any vibration from the movement of the car that may lead to the exhaustion of the Battery or scratching of other parts of the Battery hence improving on the safety of the car. The model known as the Dodge Sprinter 3500 with the production that started in 2003 and ended in 2009 has a range of engines of choice starting with 2.7L I5 and going up to the mighty 3.0L turbdiesel V6 and thus the place of the Battery Tray in this car model. Similarity in implementations seen between different models of the Sprinter 3500 is the versatility of the Battery Tray because you can use a model specifically designed for the various Sprinter 3500 models while having the same primary function of positioning a battery securely. Such attention to the battery's specifics does not only increase battery life but also helps maintain fuel efficiency which ranges at approximately 25 mpg. Also, the Dodge Sprinter 3500 Battery Tray sets a pace when it comes to construction and simplicity of installation in the auto market, meaning that those in that market who want a reliable battery tray are sorted. The Dodge Sprinter 3500 Battery Tray is an important component in the Dodge Sprinter 3500 to ensure the stability and protection of the battery; thereby, complementing the vehicle's performance, safety, and driving experience, thus contributing to its name in the Dodge line.

Dodge Sprinter 3500 Battery Tray Parts and Q&A

Battery Tray
68011034AA
Q: How to install a battery tray on Dodge Sprinter 3500?
A:
You should first clean and check the auxiliary battery tray 2 before beginning the installation process. Fit battery tray 2 onto the inner steel panel of the left front wheelhouse. Installing and tightening the bolts 1 on the battery tray's left front bracket to the wheelhouse inner steel panel is important, ensuring the screws are torqued to 11.8 Nm (105 in. lbs.). Then, set the auxiliary battery onto the auxiliary battery tray.
Battery Tray
5104592AA
Q: How to Service and Repair a Battery Tray on Dodge Sprinter 3500?
A:
The battery and battery temperature sensor should be take out of the battery tray first before proceeding to service the tray. After that, remove the bolts securing the battery tray to the tray support and lift out the tray from the vehicle. Be sure to clean and examine the battery tray before laying it onto the battery tray support. Both the top and bottom bolts must be installed and tightened to reach 11.8 N.m (105 in. lbs.). After that, set the battery temperature sensor on the tray and securely put the battery in its original spot.
