How to Properly Install a Power Steering Hose to Ensure Optimal Performance on Dodge Viper?

Always replace a hose and quick-connect if they were used previously, since the power steering pump pressure hose quick-connect is for single use and must be replaced every time the hose is uninstalled. While the hoses are still off, wash both ends, smooth the O-rings with clean power steering fluid and verify the quick-connect has the nylon gasket and it is not damaged or missing. Install the power steering pressure hose into the steering gear fluid port and turn the nut on the hose to 28 Nm (21 ft. lbs). Then, connect a new quick-connect into the power steering pump's outlet port and tighten it to 28 Nm (21 ft. lbs). Hold the fitting open and fit the end of the hose in firmly so it snaps securely. Once these steps are done, mount the air cleaner, connect the negative cable to the battery negative terminal, bleed and top off the power steering and inspect for any leaks.

How to Maintain the Power Steering Hose from Cooler to Reservoir on Dodge Viper?

Put the battery in safety mode before removing the return hose from the reservoir to the cooler by taking out the negative cable. Take off the air cleaner housing and remove as much fluid as you can from the power steering reservoir (3). Then, take off the screw clamp holding the return hose (1) onto the fluid reservoir and remove the hose from the reservoir end. Pull out both radiator cooling module screws (2) and relocate module (1) upward by around 7 mm (1/4 inch). Lift the vehicle and take off the front extension belly pan. The return hose can be taken out from the fluid cooler by either uncoupling it from the quick-connect tube nut left in the cooler using Remover, Special Tool 8875 or disassembling the tube nut and removing the hose. To take apart the hose tubes at the cooler following the first approach, place Special Tool 8875 around one of the tubes and tighten it, sliding it near the nut above it and rotating the tool clockwise to break them apart while simultaneously pulling the tubes free from beneath the nut. If applying the second process, take off and set aside the tube nut located on the fluid port. Slide the return hose located at the lower left corner outwards at the same time you're holding the left (driver's) side of the radiator cooling module to remove it from the car.

OEM Dodge Viper Power Steering Hose

Power Steering Pressure Hose

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

9 Power Steering Hoses found

View related parts
Dodge Viper Power Steering Return Hose Part Number: 3879925
$94.67 MSRP: $120.01
You Save: $25.34 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose - Power Steering Return; Power Steering Hose; Return Hose; Gear to Pump - 50 Foot Roll, Power Steering Return, O-Ring, Pressure - Pump End.
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1996 Dodge Viper | Base, GTS | 10 Cyl 8.0 L GAS
View related parts
Dodge Viper Power Steering Pressure Hose Part Number: 5290267AD
$121.23 MSRP: $179.00
You Save: $57.77 (33%)
Product Specifications
- Other Name: Line - Power Steering Return; Power Steering Return Hose; Power Steering Hose; Lower Return Hose; Upper Return Hose
- Replaces: 5290267AC, 5290267AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2013-2017 Dodge Viper | 8.4L V10
- 2008-2010 Dodge Viper | 8.4L V10
- 2003-2006 Dodge Viper | 8.3L V10
View More
View related parts
Dodge Viper Power Steering Return Hose Part Number: 5290269AA
Product Specifications
- Other Name: Line - Power Steering Return; Power Steering Hose; Upper Return Hose; Hose Power Steering Return
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003-2006 Dodge Viper | SRT-10 | 10 Cyl 8.3 L GAS
View related parts
Dodge Viper Lower Pressure Hose, Front Part Number: 5102281AA
Product Specifications
- Other Name: Line - Power Steering; Power Steering Pressure Hose, Front Lower; Power Steering Hose; Line Power Steering
- Position: Front Lower
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003-2006 Dodge Viper | SRT-10 | 10 Cyl 8.3 L GAS
View related parts
Dodge Viper Power Steering Pressure Hose, Front Upper Part Number: 5102280AA
Product Specifications
- Other Name: Line - Power Steering; Power Steering Pressure Hose, Front Upper; Power Steering Hose; Upper Pressure Hose; Line Package Power Steering; Line Power Steering
- Position: Front Upper
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003-2006 Dodge Viper | SRT-10 | 10 Cyl 8.3 L GAS
View related parts
Dodge Viper Power Steering Pressure Hose Part Number: 4848104
Product Specifications
- Other Name: Line - Power Steering Pressure; Power Steering Hose; Pressure Hose; Hose, Power Steering High Pressure; Hose Power Steering Pressure
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1992-2002 Dodge Viper | ACR, Base, GT2, GTS, R/T-10 | 10 Cyl 8.0 L GAS
View related parts
Dodge Viper Return Line Part Number: 5290008AD
Product Specifications
- Other Name: Line - Power Steering; Power Steering Hose; Line Power Steering
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003-2006 Dodge Viper | SRT-10 | 10 Cyl 8.3 L GAS
View related parts
Dodge Viper Power Steering Return Hose Part Number: 4642601
Product Specifications
- Other Name: Line - Power Steering Return; Power Steering Hose; Return Hose; Hose, Power Steering Return; Hose Power Steering Return
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1992-2002 Dodge Viper | ACR, Base, GT2, GTS, R/T-10 | 10 Cyl 8.0 L GAS
View related parts

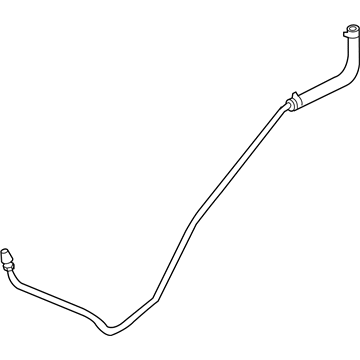

Dodge Viper Power Steering Return Hose Part Number: 5181395AC
Product Specifications
- Other Name: Line - Power Steering Return; Power Steering Hose; Reservoir Hose; Return Hose; Hose Power Steering Return
- Replaces: 5181395AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2013-2017 Dodge Viper | 8.4L V10
- 2008-2010 Dodge Viper | 8.4L V10

Dodge Viper Power Steering Hose

Choose OEM Power Steering Hose that meet Dodge factory standards. Dodge designs and tests every component for precision and durability. Each Power Steering Hose follows strict manufacturing steps to lock in quality and fit. If your Dodge Viper matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Viper parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

The Dodge Viper Power Steering Hose remains one of the critical parts that greatly improve the success of the Dodge Viper's steering mode. This high quality Power Steering Hose is between the power steering pump and the steering gear to allow proper flow of pressurized steering fluid. As the name suggests, Power Steering Hose is creatively structured to drag the diverse climate of the Dodge Viper's engine bay by withstanding heat, rocks, and other environmental conditions, which makes it the ideal version for Viper lovers. Another point, which reveals the versatility of such elements and to which special importance is attached to the compatibility of complexes with various Viper models, including the legendary RT/10 and GTS, is the corporate wiring harness. Dodge Viper Power Steering Hose should be inspected and maintained at given intervals so that leaks are detected and rectified before they become perilous for the driver. The Power Steering Hose does not only improve the steering mechanism but also greatly impacts on the driving style, making the vehicle to respond readily to the steering. In particular, the Power Steering Hose has strong fittings and construction compared to other similar products on the automotive market, which guarantees durability. Due to its performance and reliability, the Dodge viper power steering hose is an essential component that is associated with the Dodge Viper and a perfect choice for people who are looking for the premier and remarkable experience of a sports car.

Dodge Viper Power Steering Hose Parts and Q&A

Power Steering Pressure Hose
5290267AD
Q: How to Properly Install a Power Steering Hose to Ensure Optimal Performance on Dodge Viper?
A:
Always replace a hose and quick-connect if they were used previously, since the power steering pump pressure hose quick-connect is for single use and must be replaced every time the hose is uninstalled. While the hoses are still off, wash both ends, smooth the O-rings with clean power steering fluid and verify the quick-connect has the nylon gasket and it is not damaged or missing. Install the power steering pressure hose into the steering gear fluid port and turn the nut on the hose to 28 Nm (21 ft. lbs). Then, connect a new quick-connect into the power steering pump's outlet port and tighten it to 28 Nm (21 ft. lbs). Hold the fitting open and fit the end of the hose in firmly so it snaps securely. Once these steps are done, mount the air cleaner, connect the negative cable to the battery negative terminal, bleed and top off the power steering and inspect for any leaks.
Power Steering Return Hose
5181395AC
Q: How to Maintain the Power Steering Hose from Cooler to Reservoir on Dodge Viper?
A:
Put the battery in safety mode before removing the return hose from the reservoir to the cooler by taking out the negative cable. Take off the air cleaner housing and remove as much fluid as you can from the Power Steering Reservoir (3). Then, take off the screw clamp holding the return hose (1) onto the fluid reservoir and remove the hose from the reservoir end. Pull out both radiator cooling module screws (2) and relocate module (1) upward by around 7 mm (1/4 inch). Lift the vehicle and take off the front extension belly pan. The return hose can be taken out from the fluid cooler by either uncoupling it from the quick-connect tube nut left in the cooler using Remover, Special Tool 8875 or disassembling the tube nut and removing the hose. To take apart the hose tubes at the cooler following the first approach, place Special Tool 8875 around one of the tubes and tighten it, sliding it near the nut above it and rotating the tool clockwise to break them apart while simultaneously pulling the tubes free from beneath the nut. If applying the second process, take off and set aside the tube nut located on the fluid port. Slide the return hose located at the lower left corner outwards at the same time you're holding the left (driver's) side of the radiator cooling module to remove it from the car.
