What is the correct method to install a Piston Ring Set on Jeep Compass?

The face of the upper and intermediate piston rings should be placed on the piston with the identification mark facing up. You should put in the oil ring expander, next the upper oil ring side rail and then the lower oil ring side rail. To install the side rail, place one end where the piston ring groove meets the oil ring expander, hold it tightly and lower it so it slips into place, without using the piston ring expander. Markings on the compression rings are Y1 for the upper ring and Y2 for the lower ring; you will see these markings when you look up from the cylinder. Then, fit in No. 2 piston ring and install No. 1 piston ring next. Put each piston ring gap slightly far from the other rings and set the oil ring expander gap away from the closest side rail by at least 45°. Also, avoid positioning the gaps in the area of the piston pin or thrust direction, since having slight gaps will better control the oil.

How to Remove and Replace a Piston Ring Set on Jeep Compass?

First use a proper ring expander to get rid of the upper and intermediate piston rings before they are replaced. After that, take out the upper oil ring side rail, lower oil ring side rail and the oil ring expander from the piston. Once done, clean the space inside the ring grooves from any carbon.

OEM Jeep Compass Piston Ring Set

Piston Ring

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Piston Ring Sets found

View related parts

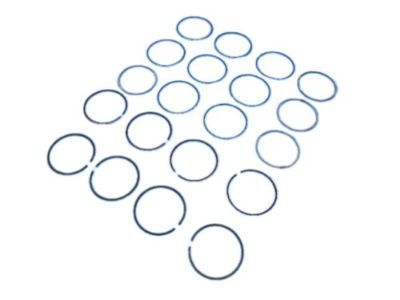

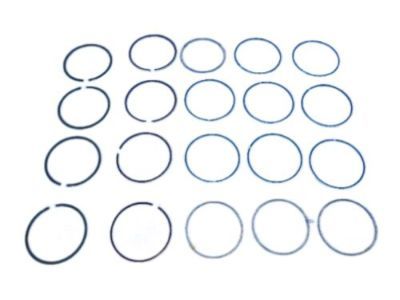

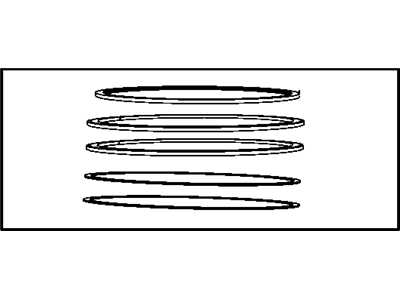

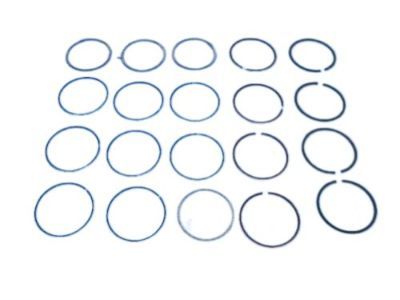

Jeep Compass Piston Ring Set Part Number: 5191424AA
$199.41 MSRP: $296.00
You Save: $96.59 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Ring Set - Complete Engine; Piston Ring; Piston Ring Set Complete Engine Standard
- Replaces: 5189924AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2017 Jeep Compass | 75th Anniversary, Altitude, Base, High Altitude, Latitude, Limited, Sport | 4 Cyl 2.4 L GAS
View related parts
Jeep Compass Piston Ring Set Part Number: 68450984AA
$117.92 MSRP: $177.00
You Save: $59.08 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Ring Set - Complete Engine; Piston Ring; Piston Ring Set Complete Engine Standard
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2019-2022 Jeep Compass | 80th Anniversary, Altitude, High Altitude, Latitude, Latitude Lux, Limited, Red, Sport, Trailhawk, Upland | 4 Cyl 2.4 L GAS
View related parts

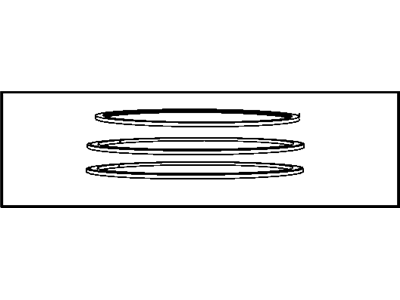

Jeep Compass Piston Ring Set Part Number: 5191418AB
$174.48 MSRP: $261.00
You Save: $86.52 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Ring Set - Complete Engine; Engine Piston Ring Set; Piston Ring; Piston Ring Set Complete Engine Standard
- Replaces: 5189918AA, 5191418AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2017 Jeep Compass | Base, Latitude, Sport | 4 Cyl 2.0 L GAS
View related parts
Jeep Compass Piston Ring Set Part Number: 68231951AB
Product Specifications
- Other Name: Ring Set - Complete Engine; Piston Ring; Piston Ring Set Complete Engine Standard
- Replaces: 68231951AC, 68231951AA, 68231951AD
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2017-2018 Jeep Compass | Latitude, Limited, Sport, Trailhawk | 2.4L L4, 4 Cyl 2.4 L GAS

Jeep Compass Piston Ring Set

Choose OEM Piston Ring Set that meet Jeep factory standards. Jeep designs and tests every component for precision and durability. Each Piston Ring Set follows strict manufacturing steps to lock in quality and fit. If your Jeep Compass matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Compass parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

Jeep Compass Piston Ring Set Parts and Q&A

Piston Ring Set
5191418AB
Q: What is the correct method to install a Piston Ring Set on Jeep Compass?
A:
The face of the upper and intermediate piston rings should be placed on the piston with the identification mark facing up. You should put in the oil ring expander, next the upper oil ring side rail and then the lower oil ring side rail. To install the side rail, place one end where the piston ring groove meets the oil ring expander, hold it tightly and lower it so it slips into place, without using the piston ring expander. Markings on the compression rings are Y1 for the upper ring and Y2 for the lower ring; you will see these markings when you look up from the cylinder. Then, fit in No. 2 piston ring and install No. 1 piston ring next. Put each piston ring gap slightly far from the other rings and set the oil ring expander gap away from the closest side rail by at least 45°. Also, avoid positioning the gaps in the area of the piston pin or thrust direction, since having slight gaps will better control the oil.
Piston Ring Set
5191424AA
Q: How to Remove and Replace a Piston Ring Set on Jeep Compass?
A:
First use a proper ring expander to get rid of the upper and intermediate piston rings before they are replaced. After that, take out the upper oil ring side rail, lower oil ring side rail and the oil ring expander from the piston. Once done, clean the space inside the ring grooves from any carbon.
