How to Install a Heater Core in the HVAC Air Distribution Housing on Jeep Grand Cherokee?

Set the heater core inside the passenger side of the HVAC air distribution housing. Take any tape or plugs off the heater core ports and, should the tubes be missing, place them into the vehicle. Use clean engine coolant to oil new O-ring seals, install them according to instructions with the O-ring that comes specifically from the engine cooling system and insert them into the heater core tubing. Link the heater core tubes to the heater core and use bolt 7 to bolt them securely. Mount the heater core tube retaining bracket 5 into the HVAC housing by placing screw 3 and tightening it to 2.2 Nm (20 in. lbs.). If your car has dual zone heating-A/C, put blend door actuator 1 on the passenger side of the HVAC air distribution housing. Place and fasten heater core and tube cover 2 to HVAC housing 3 with five screws 1, each turned to 2.2 Nm (20 in. lbs.). Install the instrument panel, put the heater hoses back on the heater core tubes in the engine area if they were removed and link the negative battery cable. Upon changing the heater core, flush the cooling system and top off the engine's coolant.

How to Safely Service a Heater Core on Jeep Grand Cherokee?

Always follow safety steps when working on a car's heater core, since air bag deployment can cause injury. Take off the vehicle housing for the heater-A/C first and the foam gasket coming out of the core tubes second, remembering its unusual shape for correct installation. Subsequently, remove the screws and retainers at the joint of the heater core and tubes to the heater-A/C housing. If additional space is needed, take out the mode door actuator. Take hold of the heater core and draw it up and out of the housing; in case of individual tube replacements, undo and pull the round wire-to-core clamp before removing the tube from the core. First, slide the tube into the core and verify the tube O-ring is in place and not being squeezed, while you hold the tube so you can install the tube-to-core clamp. Place the core in its position, secure the tube-to-heater-core clamp after setting the tubes and then fit the heater-A/C housing onto the core. Put the heater core into the heater-A/C housing, put the mode door actuator back if it was taken off and attach the retainers to the heater core tubes with screws tightened to no more than 2.2 Nm (20 in. lbs.). Afterward, fasten the grounding strap to the lower heater core retainer and put the heater-A/C housing back in the vehicle.

OEM Jeep Grand Cherokee Heater Core

HVAC Heater Core

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

8 Heater Cores found

View related parts
Jeep Grand Cherokee Heater Core, Front Part Number: 68079484AA
$214.14 MSRP: $315.00
You Save: $100.86 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Core - Heater; HVAC Heater Core, Front; Core Heater Includes: Screws, O - Rings, Seals; HVAC Heater Core
- Position: Front
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2011-2022 Jeep Grand Cherokee | 4xe, 75th Anniversary, 80th Anniversary, Altitude, High Altitude, Laredo, Laredo E, Laredo X, Limited, Limited X, Overland, Overland Summit, SRT, SRT8, Summit, Summit Reserve, Trackhawk, Trailhawk, Upland | 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV), 6 Cyl 3.0 L DIESEL, 6 Cyl 3.6 L FLEX, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L GAS, 8 Cyl 6.4 L GAS
View related parts
Jeep Grand Cherokee Heater Core, Front Part Number: 5143101AA
$117.92 MSRP: $177.00
You Save: $59.08 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Core - Heater; HVAC Heater Core, Front; Core Heater; HVAC Heater Core
- Position: Front
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2005-2010 Jeep Grand Cherokee | 65th Anniversary Edition, Laredo, Limited, Overland, SRT8 | 6 Cyl 3.0 L DIESEL, 6 Cyl 3.7 L GAS, 8 Cyl 4.7 L FLEX, 8 Cyl 4.7 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.1 L GAS
View related parts
Jeep Grand Cherokee Heater Core Part Number: 5012691AB
$180.80 MSRP: $272.00
You Save: $91.20 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Core - Heater; HVAC Heater Core; Core Heater
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1999-2003 Jeep Grand Cherokee | Laredo, Limited, Overland, Sport | 6 Cyl 4.0 L GAS, 8 Cyl 4.7 L GAS
View related parts
Jeep Grand Cherokee Heater Core Part Number: 68640874AA
$123.77 MSRP: $189.00
You Save: $65.23 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Heater
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2022-2024 Jeep Grand Cherokee | 30th Anniversary 4xe, 4xe, Altitude, Altitude X, Laredo, Laredo X, Limited, Overland, Summit, Summit Reserve, Trailhawk | 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV), 6 Cyl 3.6 L FLEX, 8 Cyl 5.7 L GAS
View related parts

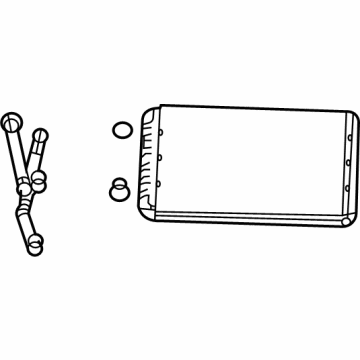

Jeep Grand Cherokee Heater Part Number: 68542650AB
$106.15 MSRP: $159.00
You Save: $52.85 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2022-2025 Jeep Grand Cherokee | 30th Anniversary 4xe, 4xe, Altitude, Altitude X, Anniversary Edition 4xe, Laredo, Laredo X, Limited, Overland, Summit, Summit Reserve, Trailhawk | 2.0L L4, 3.6L V6, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV), 5.7L V8, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 8 Cyl 5.7 L GAS
View related parts
Jeep Grand Cherokee Heater Core Part Number: 4720008
Product Specifications
- Other Name: Core - Heater; HVAC Heater Core; Core Assembly, Heater; Core Assembly; Core, Heater; Core Heater
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1993-1998 Jeep Grand Cherokee | 5.9 Limited, Base, Laredo, Limited, Orvis, SE, TSi | 6 Cyl 4.0 L GAS, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
View related parts

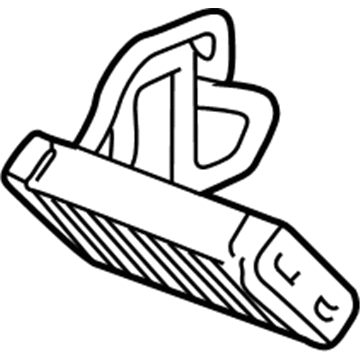

Jeep Grand Cherokee Heater Core Part Number: 5102268AA
Product Specifications
- Other Name: Core - Heater; HVAC Heater Core; Core Heater
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2004 Jeep Grand Cherokee | Laredo, Limited, Overland, Special Edition | 6 Cyl 4.0 L GAS, 8 Cyl 4.7 L GAS
View related parts

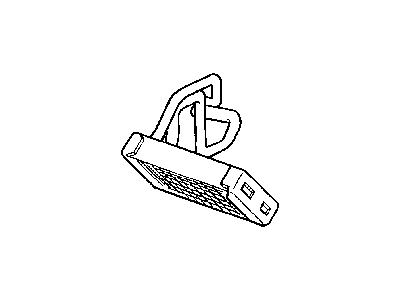

Jeep Grand Cherokee Heater Core Part Number: 5101761AA
Product Specifications
- Other Name: Core - Heater; HVAC Heater Core; Core Heater
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003 Jeep Grand Cherokee | Laredo, Limited, Overland | 6 Cyl 4.0 L GAS, 8 Cyl 4.7 L GAS

Jeep Grand Cherokee Heater Core

Choose OEM Heater Core that meet Jeep factory standards. Jeep designs and tests every component for precision and durability. Each Heater Core follows strict manufacturing steps to lock in quality and fit. If your Jeep Grand Cherokee matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Grand Cherokee parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

Heater Core in Jeep Grand Cherokee as a component influences the climate control system of vehicles and supplies warm air to the passenger's compartment when the heater is on. Working in roughly the same manner as a car's radiator, the Heater Core uses a combination of water and antifreeze to take the heat generated by the engine and send it into the passenger cabin. Made from aluminum or brass it is equipped with fins to increase thermal conductivity, cooler has a so-called intake where hot coolant is brought from an engine combined with air supplied by a fan of the car. There are probably years in which Jeep Grand Cherokee used different Heater Core designs and various methods of temperature control - such as control valves for the flow of coolant and sophisticated systems using electromechanical actuators for finely tuned control. Some of the problems that are associated with Heater Core include blockage, undiscovered leaking, and corrosion and this poses a major challenge for the technicians because the dashboard requires to be disassembled fully.
