How to Install a Clutch Master Cylinder on 2008 Chrysler Crossfire?

Before installing the clutch master cylinder, put it on the pedal and turn it clockwise. After that, fit retaining nuts onto the bracket assembly and torque them to 10 Nm (89 in. lbs.). Attach the circlip to the stud on the pedal and fasten the spring to the top of the pedal. Attach the ends of the fluid pressure line and the supply hose and then remove the clamp from the last hose. Fit the illumination control module and the lower driver's side instrument panel. After that, bleed the hydraulic clutch and ensure the clutch is operating properly.

OEM 2008 Chrysler Crossfire Clutch Master Cylinder

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

1 Clutch Master Cylinder found

View related parts

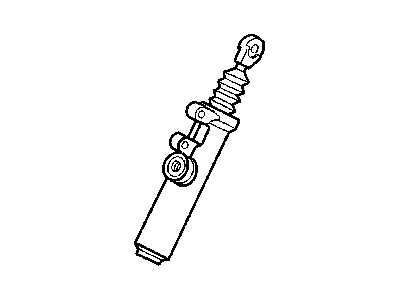

2008 Chrysler Crossfire Hydraulic Assembly Part Number: 5098009AA
Product Specifications
- Other Name: Hydraulic Control - Clutch Actuator; Hydraulic Control Clutch Actuator
- Item Weight: 0.90 Pounds
- Item Dimensions: 9.1 x 1.6 x 1.4 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 5098009AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
More Info
Fits the following 2008 Chrysler Crossfire Submodels:
- Base, Limited, SRT-6 | 6 Cyl 3.2 L GAS

2008 Chrysler Crossfire Clutch Master Cylinder Parts and Q&A

Q: How to Install a Clutch Master Cylinder on 2008 Chrysler Crossfire?
A: Before installing the clutch master cylinder, put it on the pedal and turn it clockwise. After that, fit retaining nuts onto the bracket assembly and torque them to 10 Nm (89 in. lbs.). Attach the circlip to the stud on the pedal and fasten the spring to the top of the pedal. Attach the ends of the fluid pressure line and the supply hose and then remove the clamp from the last hose. Fit the illumination control module and the lower driver's side instrument panel. After that, bleed the hydraulic clutch and ensure the clutch is operating properly.
