How to Safely Install an Instrument Cluster to Ensure Optimal Functionality on 2008 Jeep Patriot?

Before beginning, you should first remove the battery cable, disable SRS and give it two minutes to eject the remaining electricity from its capacitor. Place the instrument cluster beside the instrument panel so you can connect the wires from the cluster to the back of the case. Put the instrument cluster tabs into their corresponding holes on the instrument panel support and fasten these by using and tightening all four screws to 2 Nm (17 in. lbs.). Place the cluster bezel onto the dash and attach the battery negative cable. If the indicator lights don't work properly, remove the battery negative cable, wait five minutes, attach it again and turn on the ignition switch to make the instrument cluster relearn all vehicle equipment.

OEM 2008 Jeep Patriot Instrument Cluster

Speedometer Instrument Cluster

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Instrument Clusters found

View related parts
2008 Jeep Patriot Instrument Cluster, Silver Part Number: 5107023AF
Product Specifications
- Other Name: Cluster; Cluster Assembly
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 5107023AF
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following 2008 Jeep Patriot Submodels:
- Limited, Sport | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
2008 Jeep Patriot Instrument Cluster, Silver Part Number: 5107006AF
Product Specifications
- Other Name: Cluster; Cluster Assembly
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 5107006AF
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following 2008 Jeep Patriot Submodels:
- Limited, Sport | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts

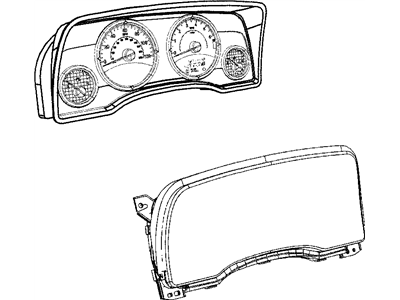

2008 Jeep Patriot Instrument Cluster, Silver Part Number: 5172335AB
Product Specifications
- Other Name: Cluster - Instrument Panel; Cluster Instrument Panel
- Replaces: 5172335AA
- Item Weight: 7.10 Pounds
- Item Dimensions: 22.8 x 8.6 x 8.7 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 5172335AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
More Info
Fits the following 2008 Jeep Patriot Submodels:
- Limited, Sport | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
2008 Jeep Patriot Instrument Cluster, Silver Part Number: 5172338AB
Product Specifications
- Other Name: Cluster - Instrument Panel; Cluster Instrument Panel
- Replaces: 5172338AA
- Item Weight: 7.10 Pounds
- Item Dimensions: 22.4 x 8.9 x 8.8 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 5172338AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
More Info
Fits the following 2008 Jeep Patriot Submodels:
- Limited, Sport | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
2008 Jeep Patriot Instrument Cluster, Silver Part Number: 5172337AB
Product Specifications
- Other Name: Cluster - Instrument Panel; Cluster Instrument Panel
- Replaces: 5172337AA
- Item Weight: 7.70 Pounds
- Item Dimensions: 21.9 x 8.9 x 8.8 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 5172337AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
More Info
Fits the following 2008 Jeep Patriot Submodels:
- Limited, Sport | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
2008 Jeep Patriot Instrument Cluster, Silver Part Number: 5172336AB
Product Specifications
- Other Name: Cluster - Instrument Panel; Cluster Instrument Panel
- Replaces: 5172336AA
- Item Weight: 7.40 Pounds
- Item Dimensions: 22.6 x 9.0 x 8.8 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 5172336AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
More Info
Fits the following 2008 Jeep Patriot Submodels:
- Limited, Sport | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS

2008 Jeep Patriot Instrument Cluster Parts and Q&A

Q: How to Safely Install an Instrument Cluster to Ensure Optimal Functionality on 2008 Jeep Patriot?
A: Before beginning, you should first remove the battery cable, disable SRS and give it two minutes to eject the remaining electricity from its capacitor. Place the instrument cluster beside the instrument panel so you can connect the wires from the cluster to the back of the case. Put the instrument cluster tabs into their corresponding holes on the instrument panel support and fasten these by using and tightening all four screws to 2 Nm (17 in. lbs.). Place the cluster bezel onto the dash and attach the battery negative cable. If the indicator lights don't work properly, remove the battery negative cable, wait five minutes, attach it again and turn on the ignition switch to make the instrument cluster relearn all vehicle equipment.
