How to Install the ABS Control Module for the Antilock Brakes on 2009 Dodge Ram 1500?

Place the HCU/ABM (3) onto the mounting points on the battery tray (4) and torque it to a value of 15 Nm (11 ft. lbs.) before you begin. After that, link the brake lines to the HCU (Hydraulic Control Unit) and tighten them to 19 Nm (170 in lbs). Link the HCU/ABM to the electrical harness connectors (3) and press each of the releases down to hold them firmly. Once that is done, insert the battery and link the cables to its terminal posts. Make sure to finally bleed the ABS brake system.

OEM 2009 Dodge Ram 1500 ABS Control Module

Anti Lock Brake Control Module

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

3 ABS Control Modules found

View related parts

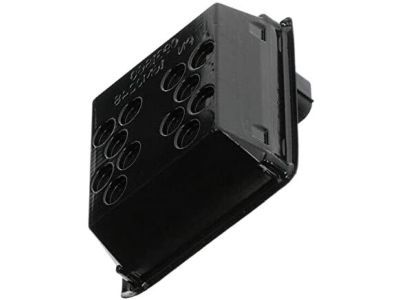

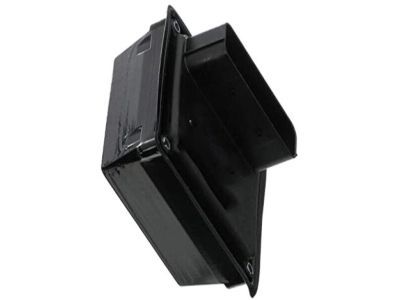

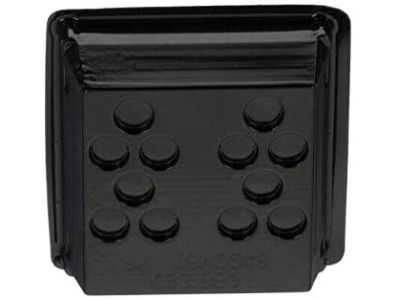

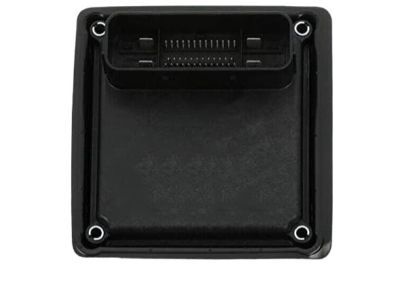

2009 Dodge Ram 1500 Control Module Part Number: 68048344AH
Product Specifications
- Other Name: Module - Anti-Lock Brake System; ABS Control Module; Modulator Valve
- Replaced by: 68048344AI
- Item Weight: 1.50 Pounds
- Item Dimensions: 8.4 x 6.6 x 3.6 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 68048344AH
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
More Info
Fits the following 2009 Dodge Ram 1500 Submodels:
- Laramie, SLT, ST, Sport, TRX, TRX4 | 6 Cyl 3.7 L GAS, 8 Cyl 4.7 L FLEX, 8 Cyl 5.7 L GAS
View related parts
2009 Dodge Ram 1500 Control Module Part Number: 55398729AR
$377.85 MSRP: $550.00
You Save: $172.15 (32%)
Product Specifications
- Other Name: Module - Anti-Lock Brake; ABS Hydraulic Assembly; ABS Control Module; ABS Control Unit
- Replaces: 55398729AN, 55398729AM
- Item Weight: 6.00 Pounds
- Item Dimensions: 9.0 x 6.9 x 5.6 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 55398729AR
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
More Info
Fits the following 2009 Dodge Ram 1500 Submodels:
- Laramie, SLT, ST, Sport, TRX, TRX4 | 6 Cyl 3.7 L GAS, 8 Cyl 4.7 L FLEX, 8 Cyl 5.7 L GAS
View related parts
2009 Dodge Ram 1500 Module - Anti-Lock Brake System Part Number: 68048344AI
Product Specifications
- Other Name: MODULE-ANTI-LOCK BRAKE SYSTEM
- Replaces: 68048344AH, 68048344AF, 68048344AE
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 68048344AI
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following 2009 Dodge Ram 1500 Submodels:
- Laramie, SLT, ST, Sport, TRX, TRX4 | 6 Cyl 3.7 L GAS, 8 Cyl 4.7 L FLEX, 8 Cyl 5.7 L GAS

2009 Dodge Ram 1500 ABS Control Module Parts and Q&A

Q: How to Install the ABS Control Module for the Antilock Brakes on 2009 Dodge Ram 1500?
A: Place the HCU/ABM (3) onto the mounting points on the battery tray (4) and torque it to a value of 15 Nm (11 ft. lbs.) before you begin. After that, link the brake lines to the HCU (Hydraulic Control Unit) and tighten them to 19 Nm (170 in lbs). Link the HCU/ABM to the electrical harness connectors (3) and press each of the releases down to hold them firmly. Once that is done, insert the battery and link the cables to its terminal posts. Make sure to finally bleed the ABS brake system.
