OEM Chrysler Pacifica ABS Control Module

Anti Lock Brake Control Module

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

30 ABS Control Modules found

View related parts

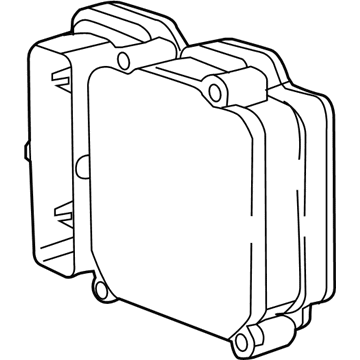

Chrysler Pacifica Control Module Part Number: 68283579AD
$361.82 MSRP: $533.00
You Save: $171.18 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module - Anti-Lock Brake System
- Replaces: 68283579AB, 68283579AC, 68283579AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2017-2020 Chrysler Pacifica | Hybrid Limited, Hybrid Platinum, Hybrid Premium, Hybrid Touring, Hybrid Touring L, Hybrid Touring Plus, L, LX, Limited, Touring, Touring L, Touring L Plus, Touring Plus | 3.6L V6, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Chrysler Pacifica Control Module Part Number: 68283577AD
$548.46 MSRP: $799.00
You Save: $250.54 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module - Anti-Lock Brake System; ABS Control Module
- Replaces: 68283577AC, 68370656AA, 68283577AB, 68283577AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2017-2019 Chrysler Pacifica | Hybrid Limited, Hybrid Platinum, Hybrid Premium, Hybrid Touring L, Hybrid Touring Plus, L, LX, Limited, Touring, Touring L, Touring L Plus, Touring Plus | 3.6L V6, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts

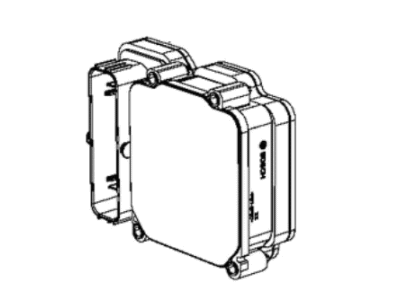

Chrysler Pacifica Control Module Part Number: 68468169AB
$511.62 MSRP: $776.00
You Save: $264.38 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module - Anti-Lock Brake System
- Replaces: 68440490AA, 68468169AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2020 Chrysler Pacifica | AWD Launch Edition, Hybrid Limited, Hybrid Touring, Hybrid Touring L, Limited, Touring, Touring L, Touring L Plus | 3.6L V6, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts

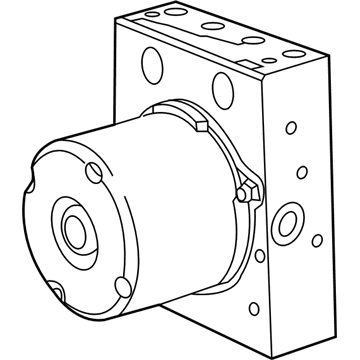

Chrysler Pacifica Control Module Part Number: 68414159AB
$847.54 MSRP: $1300.00
You Save: $452.46 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Modulator - Anti-Lock Brake; ABS Control Module; Modulator Valve; Modulator; Control Unit Anti-Lock Brake
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2019-2020 Chrysler Pacifica | AWD Launch Edition, Hybrid Limited, Hybrid Touring, Hybrid Touring L, L, LX, Limited, Touring, Touring L, Touring L Plus, Touring Plus | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Chrysler Pacifica Modulator Valve Part Number: 68283576AD
$865.22 MSRP: $1325.00
You Save: $459.78 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Modulator - Anti-Lock Brake; ABS Control Module; Modulator
- Replaces: 68283576AB, 68283576AC, 68370655AA, 68283576AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2017-2019 Chrysler Pacifica | Hybrid Limited, Hybrid Platinum, Hybrid Premium, Hybrid Touring L, Hybrid Touring Plus, L, LX, Limited, Touring, Touring L, Touring L Plus, Touring Plus | 3.6L V6, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Chrysler Pacifica Modulator Valve Part Number: 68414164AB
$932.62 MSRP: $1420.00
You Save: $487.38 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Modulator - Anti-Lock Brake; ABS Control Module; Modulator; Control Unit Anti-Lock Brake
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2019-2020 Chrysler Pacifica | AWD Launch Edition, Hybrid Limited, Hybrid Touring, Hybrid Touring L, L, LX, Limited, Touring, Touring L, Touring L Plus, Touring Plus | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Chrysler Pacifica Modulator Valve Part Number: 68283572AD
$940.36 MSRP: $1435.00
You Save: $494.64 (35%)
ADD TO CART
Product Specifications
- Other Name: Modulator - Anti-Lock Brake; ABS Control Module; Modulator
- Replaces: 68283572AB, 68283572AC, 68370659AA, 68283572AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2017-2019 Chrysler Pacifica | Hybrid Limited, Hybrid Platinum, Hybrid Premium, Hybrid Touring L, Hybrid Touring Plus, L, LX, Limited, Touring, Touring L, Touring L Plus, Touring Plus | 3.6L V6, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts

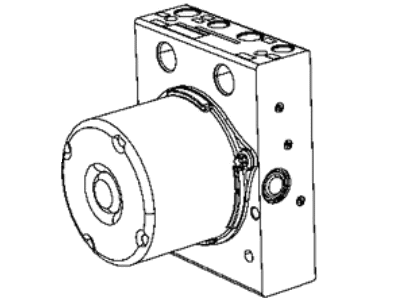

Chrysler Pacifica Modulator Valve Part Number: 68468168AB
$1530.43 MSRP: $2335.00
You Save: $804.57 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Modulator - Anti-Lock Brake
- Replaces: 68440489AA, 68468168AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2020 Chrysler Pacifica | AWD Launch Edition, Hybrid Limited, Hybrid Touring, Hybrid Touring L, Limited, Touring, Touring L, Touring L Plus | 3.6L V6, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Chrysler Pacifica Module - Anti-Lock Brake System Part Number: 68595269AB
$423.65 MSRP: $617.00
You Save: $193.35 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: MODULE-ANTI-LOCK BRAKE SYSTEM
- Replaces: 68488625AA, 68595269AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2020-2024 Chrysler Pacifica | Hybrid Limited, Hybrid Pinnacle, Hybrid Touring, Hybrid Touring L, Limited, Pinnacle, Touring, Touring L | 3.6L V6, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Chrysler Pacifica Control Module Part Number: 68414163AB
$383.58 MSRP: $559.00
You Save: $175.42 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module - Anti-Lock Brake System; ABS Control Module; Module Anti-Lock Brake System
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2019-2020 Chrysler Pacifica | AWD Launch Edition, Hybrid Limited, Hybrid Touring, Hybrid Touring L, L, LX, Limited, Touring, Touring L, Touring L Plus, Touring Plus | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Chrysler Pacifica Control Module Part Number: 68414162AB
$383.58 MSRP: $559.00
You Save: $175.42 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module - Anti-Lock Brake System; ABS Control Module; Module Anti-Lock Brake System
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2019-2020 Chrysler Pacifica | AWD Launch Edition, Hybrid Limited, Hybrid Touring, Hybrid Touring L, L, LX, Limited, Touring, Touring L, Touring L Plus, Touring Plus | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Chrysler Pacifica Module - Anti-Lock Brake System Part Number: 68595270AB
$530.40 MSRP: $800.00
You Save: $269.60 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: MODULE-ANTI-LOCK BRAKE SYSTEM
- Replaces: 68488626AA, 68595270AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2020-2024 Chrysler Pacifica | Hybrid Limited, Hybrid Pinnacle, Hybrid Touring, Hybrid Touring L, Limited, Pinnacle, Touring, Touring L | 3.6L V6, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Chrysler Pacifica Control Module Part Number: 68283573AD
$455.26 MSRP: $688.00
You Save: $232.74 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module - Anti-Lock Brake System; ABS Control Module
- Replaces: 68370663AA, 68283573AB, 68283573AC, 68283573AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2017-2019 Chrysler Pacifica | Hybrid Limited, Hybrid Platinum, Hybrid Premium, Hybrid Touring L, Hybrid Touring Plus, L, LX, Limited, Touring, Touring L, Touring L Plus, Touring Plus | 3.6L V6, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Chrysler Pacifica Control - Anti-Lock Brake Part Number: 68595267AB
$491.73 MSRP: $742.00
You Save: $250.27 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: CONTROL-ANTI-LOCK BRAKE
- Replaces: 68595267AA, 68488623AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2020-2024 Chrysler Pacifica | Hybrid Limited, Hybrid Pinnacle, Hybrid Premium S Appearance, Hybrid Road Tripper, Hybrid S Appearance, Hybrid Select, Hybrid Touring, Hybrid Touring L, Limited, Pinnacle, Touring, Touring L | 3.6L V6, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Chrysler Pacifica Control - Anti-Lock Brake Part Number: 68595268AB
$523.77 MSRP: $790.00
You Save: $266.23 (34%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: ANTI-LOCK BRAKE
- Replaces: 68488624AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2020-2024 Chrysler Pacifica | Hybrid Limited, Hybrid Pinnacle, Hybrid Touring, Hybrid Touring L, Limited, Pinnacle, Touring, Touring L | 3.6L V6, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Chrysler Pacifica Control Module Part Number: 68488633AA
$697.26 MSRP: $1055.00
You Save: $357.74 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module - Anti-Lock Brake System; ABS Control Module; Module Anti-Lock Brake System
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2021-2024 Chrysler Pacifica | Hybrid Limited, Hybrid Pinnacle, Hybrid Premium S Appearance, Hybrid Road Tripper, Hybrid S Appearance, Hybrid Select, Hybrid Touring, Hybrid Touring L, Limited, Pinnacle, Touring, Touring L | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Chrysler Pacifica Control - Anti-Lock Brake System Part Number: 68721993AA
$316.11 MSRP: $465.00
You Save: $148.89 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: CONTROL-ANTI-LOCK BRAKE SYSTEM
- Replaced by: 68753168AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2025 Chrysler Pacifica | Limited, Pinnacle, Select | 6 Cyl 3.6 L GAS
View related parts
Chrysler Pacifica Modulator Valve Part Number: 68283578AC
$581.66 MSRP: $847.00
You Save: $265.34 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Modulator - Anti-Lock Brake; ABS Control Module; Modulator; Control Unit Anti-Lock Brake
- Replaces: 68283578AB, 68283578AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2017-2020 Chrysler Pacifica | Hybrid Limited, Hybrid Platinum, Hybrid Premium, Hybrid Touring, Hybrid Touring L, Hybrid Touring Plus, L, LX, Limited, Touring, Touring L, Touring L Plus, Touring Plus | 3.6L V6, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts

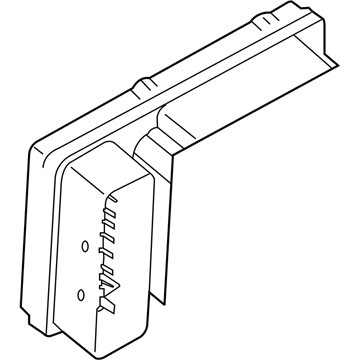

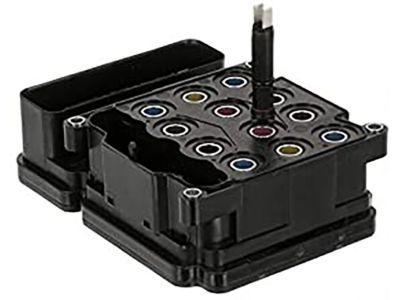

Chrysler Pacifica Control Module Part Number: 5175522AC
Product Specifications
- Other Name: Module - ABS; ABS Control Module; Module Anti-Lock Brakes
- Replaces: 5175522AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2008 Chrysler Pacifica | Base, LX, Limited, Touring | 3.8L V6, 4.0L V6, 6 Cyl 3.8 L GAS, 6 Cyl 4.0 L GAS
View related parts

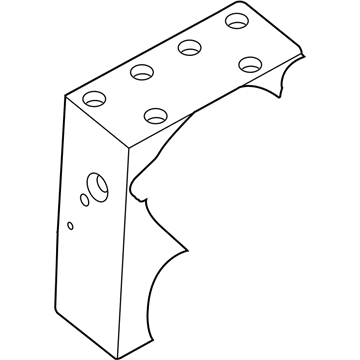

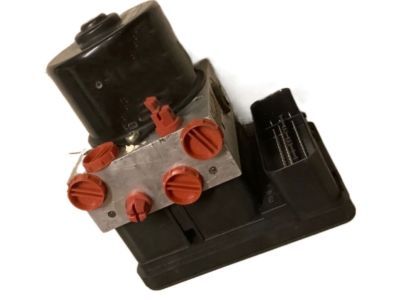

Chrysler Pacifica Modulator Part Number: 5175520AC
Product Specifications
- Other Name: Module - Anti-Lock Brake; ABS Modulator Valve; ABS Control Module; Control Unit Anti-Lock Brake
- Replaces: 5175520AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2008 Chrysler Pacifica | Base, LX, Limited, Touring | 3.8L V6, 4.0L V6, 6 Cyl 3.8 L GAS, 6 Cyl 4.0 L GAS

| Page 1 of 2 |Next >

1-20 of 30 Results

Chrysler Pacifica ABS Control Module

Choose OEM ABS Control Module that meet Chrysler factory standards. Chrysler designs and tests every component for precision and durability. Each ABS Control Module follows strict manufacturing steps to lock in quality and fit. If your Chrysler Pacifica matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Pacifica parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

Chrysler Pacifica ABS Control Module is an important part of the vehicle's anti-lock braking system commonly referred to as the ABS, and commonly known to operate efficiently in most of the Chrysler Pacifica models. This advanced module proves to be very important in the enhancement of the vehicle safety since it does not lock the wheels when the driver applies the brakes heavily, thus exercising maximum control, which helps in the prevention of skidding. Using the wheel speed sensors, the Chrysler Pacifica ABS Control Module triggers lock conditions and control the brake pressure by means of valves and a pump which independently performs several techniques in braking that are way beyond our reflex capabilities. Its compatibility with the electronic stability control (ESC) systems of model increases the safety features of the Pacifica with more efficient direction control during a skidding event. Another important aspect of the system is the brake force and ABS Control Module it contains electronic distribution of the brake force and emergency brake assist; Both options seem to improve the efficiency and safety of the braking system in the Chrysler Pacifica automobiles. This module suits Pacifica in many trims and models and through positive feedback regarding the performances of this signature feature, this part is highly praised in the automotive world. Chrysler has made the Chrysler Pacifica with a 3.6 L Pentastar V6 engine; the car has been awarded as the "optimal Minivan of 2016" and "2020 optimal Family CAR." Altogether, the Chrysler Pacifica ABS Control Module is an outstanding component that not only improves the functioning of the vehicle but also stabilizes the security of passengers, which confirms that the Pacifica is a perfect car for families.

Chrysler Pacifica ABS Control Module Parts and Q&A

Modulator
5175520AC
Q: How to Install the ABS Control Module in the Hydraulic Control Assembly on Chrysler Pacifica?
A:
Before installing the Hydraulic Control Unit for the antilock brakes, you need to assemble and install the Integrated Control Unit first.
Control Module
5175522AC
Q: How to Remove and Replace the ABS Control Module for Antilock Brakes on Chrysler Pacifica?
A:
Prior to removing the Hydraulic Control Assembly for Antilock Brakes, first detach the negative Battery Cable from the post and protect it. Hold down on the brake pedal using a brake pedal tool before any brake fluid can flow out of the reservoir while you work on the brake system. Remove (4) and (3) brake tubes from the master cylinder (1) at the ABS ICU (2), then seal them with caps and add sealing plugs to the filler ports of the brake tubes from the ICU. Following this, remove the chassis Brake Lines (1, 2, 2, 3 and 4) from the ICU (5), cap the ends, insert sealing plugs in the open ports on the ICU and seal them. Do this by pressing the middle tab which causes the release lever to pop up and pulls the ABM connector out of the module's socket. After that, take the wiring connector off the ABM. Take off the two ABS ICU bracket bolts, pick up the ICU and remove it from the car body. If you must separate the ABM and HCU, DO that.
