How Should the Air Bag Control Module Be Installed on Chrysler Pacifica?

In vehicles that have the Occupant Classification System (OCS), never replace the Occupant Restraint Controller (ORC) and the Occupant Classification Module (OCM) and the Air Bag Control Module together; if both need to be replaced, start with the OCM and then do the air bag System test (leave the ignition on for at least one minute) to update the data before swapping out the ORC. Place the ORC inside the vehicle onto the top of the floor tunnel and position and tighten three screws at the back left side and at the front and back of the unit, using 14.5 Nm (128 in. lbs.). From the right side of the vehicle, connect the two ORC connectors labeled C1 and C2 and next, set in place the left and right forward console closeout panels. Do not plug in the battery negative cable until the system test is done, to protect yourself from any hazards. After finishing the air bag System test, verify the Occupant Classification System by using a scan tool and up-to-date data and still do not close the hood.

How to Safely Service and Remove an Air Bag Control Module on Chrysler Pacifica?

Open the hood first and disconnect the negative battery cable to service the Air Bag Control Module. You must wait two minutes for the air bag system reserve capacitor to empty, because an accidental air bag deployment can cause injury or death. Following this, uninstall the left and right forward console closeout panels. Starting at the right side of the vehicle, remove C1 and C2 which are the ORC electrical connectors for this job. Following that, take out the three retaining screws that attach the ORC, two on the floor tunnel and one nearby and opposite the ORC. Finally, make sure to take off the ORC from the vehicle.

OEM Chrysler Pacifica Air Bag Control Module

SRS Airbag Module

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

14 Air Bag Control Modules found

View related parts

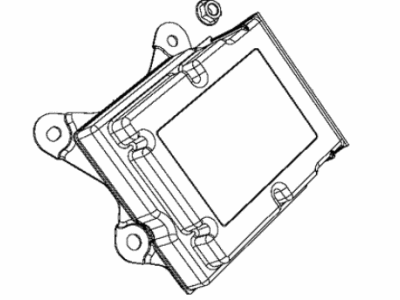

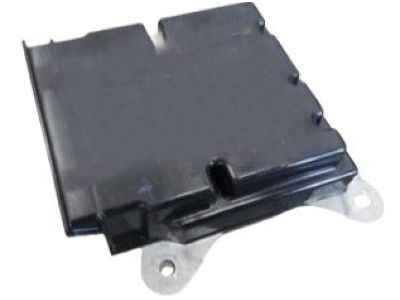

Chrysler Pacifica Control Module Part Number: 68405565AC
$292.31 MSRP: $436.00
You Save: $143.69 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module - Occupant Restraint; Module Occupant Restraint
- Replaces: 68405565AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2020 Chrysler Pacifica | AWD Launch Edition, Hybrid Limited, Hybrid Touring, Hybrid Touring L, Limited, Touring, Touring L, Touring L Plus | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts

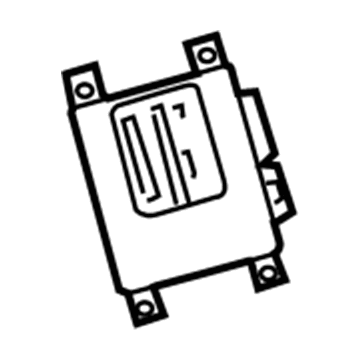

Chrysler Pacifica Diagnostic Module Part Number: 4686955AG
$154.63 MSRP: $280.00
You Save: $125.37 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module - Occupant Restraint; Air Bag Control Module; Diagnostic Unit
- Replaces: 4686955AF, 4686955AE
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2004-2005 Chrysler Pacifica | Base | 3.5L V6, 3.8L V6, 6 Cyl 3.5 L GAS
View related parts

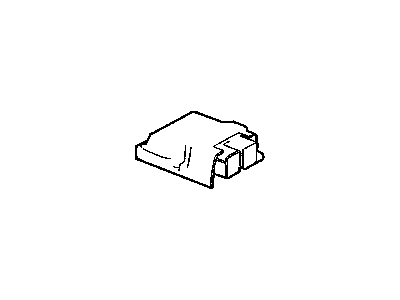

Chrysler Pacifica Diagnostic Module Part Number: 4606933AC
$122.14 MSRP: $201.00
You Save: $78.86 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module - Occupant Restraint; Module Occupant Restraint
- Replaces: 4606933AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2006 Chrysler Pacifica | Base, Limited, Touring | 6 Cyl 3.5 L GAS, 6 Cyl 3.8 L GAS
View related parts
Chrysler Pacifica Control Module Part Number: 68526665AB
$284.38 MSRP: $423.00
You Save: $138.62 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module - Occupant Restraint; Air Bag Module
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2021-2025 Chrysler Pacifica | Hybrid Limited, Hybrid Pinnacle, Hybrid Premium S Appearance, Hybrid Road Tripper, Hybrid S Appearance, Hybrid Select, Hybrid Touring, Hybrid Touring L | 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Chrysler Pacifica Control Module Part Number: 68453074AC
$309.31 MSRP: $460.00
You Save: $150.69 (33%)
ADD TO CART
Product Specifications
- Other Name: Module - Occupant Restraint
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2017-2019 Chrysler Pacifica | Hybrid Limited, Hybrid Platinum, Hybrid Premium, Hybrid Touring L, Hybrid Touring Plus, L, LX, Limited, Touring, Touring L, Touring L Plus, Touring Plus | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Chrysler Pacifica Air Bag Module Part Number: 68405567AC
$325.17 MSRP: $484.00
You Save: $158.83 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module - Occupant Restraint; Module Occupant Restraint
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2019-2020 Chrysler Pacifica | AWD Launch Edition, Hybrid Limited, Hybrid Touring, Hybrid Touring L, Hybrid Touring Plus, L, LX, Limited, Touring, Touring L, Touring L Plus, Touring Plus | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Chrysler Pacifica Air Bag Module Part Number: 68238840AH
$367.55 MSRP: $538.00
You Save: $170.45 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module - Occupant Restraint
- Replaces: 68238840AE, 68238840AF, 68238840AG
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2017 Chrysler Pacifica | Hybrid Platinum, Hybrid Premium, LX, Limited, Touring, Touring L, Touring L Plus | 3.6L V6, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Chrysler Pacifica Module - Occupant Restraint Part Number: 68526663AC
$293.45 MSRP: $436.00
You Save: $142.55 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: MODULE-OCCUPANT RESTRAINT
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2021-2024 Chrysler Pacifica | Hybrid Limited, Hybrid Pinnacle, Hybrid Touring, Hybrid Touring L, Limited, Pinnacle, Touring, Touring L | 3.6L V6, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
Chrysler Pacifica Air Bag Module Part Number: 68405939AA
$210.86 MSRP: $496.00
You Save: $285.14 (58%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module - Occupant Restraint; Module Occupant Restraint
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2018 Chrysler Pacifica | Hybrid Limited, Hybrid Touring L, Hybrid Touring Plus, L, LX, Limited, Touring, Touring L, Touring L Plus, Touring Plus | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts

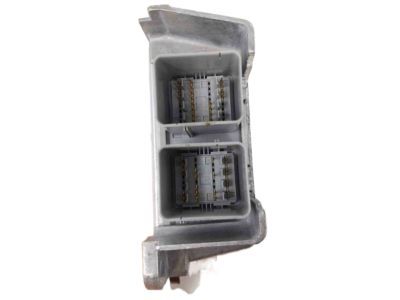

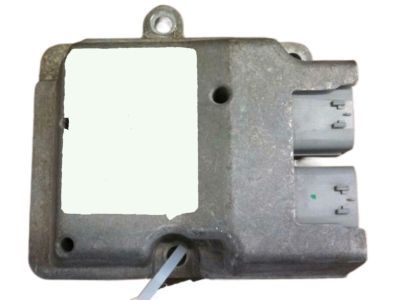

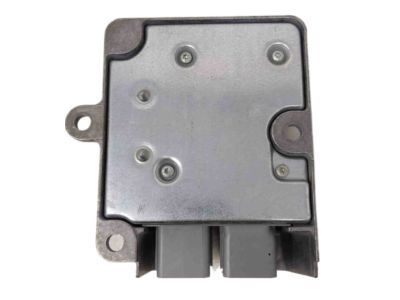

Chrysler Pacifica Diagnostic Module Part Number: 4606931AC
Product Specifications
- Other Name: Module - Occupant Restraint; Air Bag Control Module; Diagnostic Unit; Module Occupant Restraint
- Replaces: 4606931AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2005-2006 Chrysler Pacifica | Base, Limited, Touring | 6 Cyl 3.5 L GAS, 6 Cyl 3.8 L GAS
View related parts

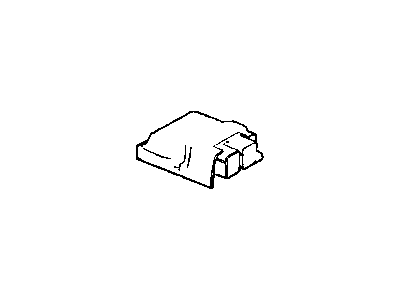

Chrysler Pacifica Diagnostic Module Part Number: 56054045AA
Product Specifications
- Other Name: Module - Occupant Restraint; Module Occupant Restraint
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2008 Chrysler Pacifica | LX, Limited, Touring | 6 Cyl 3.8 L GAS, 6 Cyl 4.0 L GAS
View related parts
Chrysler Pacifica Diagnostic Module Part Number: 56054044AA
Product Specifications
- Other Name: Module - Occupant Restraint; Air Bag Control Module; Diagnostic Unit; Module Occupant Restraint
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2008 Chrysler Pacifica | LX, Limited, Touring | 6 Cyl 3.8 L GAS, 6 Cyl 4.0 L GAS
View related parts
Chrysler Pacifica Diagnostic Module Part Number: 4606919AE
Product Specifications
- Other Name: Module - Occupant Restraint; Module Occupant Restraint
- Replaces: 4606919AD
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007 Chrysler Pacifica | Base, Limited, Touring | 6 Cyl 3.8 L GAS, 6 Cyl 4.0 L GAS
View related parts
Chrysler Pacifica Diagnostic Unit Part Number: 4606918AE
Product Specifications
- Other Name: Module - Occupant Restraint; Air Bag Control Module; Module Occupant Restraint
- Replaces: 4606918AD
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007 Chrysler Pacifica | Base, Limited, Touring | 6 Cyl 3.8 L GAS, 6 Cyl 4.0 L GAS

Chrysler Pacifica Air Bag Control Module

Choose OEM Air Bag Control Module that meet Chrysler factory standards. Chrysler designs and tests every component for precision and durability. Each Air Bag Control Module follows strict manufacturing steps to lock in quality and fit. If your Chrysler Pacifica matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Pacifica parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

Chrysler Pacifica Air Bag Control Module Parts and Q&A

Diagnostic Unit
4606918AE
Q: How Should the Air Bag Control Module Be Installed on Chrysler Pacifica?
A:
In vehicles that have the Occupant Classification System (OCS), never replace the Occupant Restraint Controller (ORC) and the Occupant Classification Module (OCM) and the Air Bag Control Module together; if both need to be replaced, start with the OCM and then do the air bag System test (leave the ignition on for at least one minute) to update the data before swapping out the ORC. Place the ORC inside the vehicle onto the top of the floor tunnel and position and tighten three screws at the back left side and at the front and back of the unit, using 14.5 Nm (128 in. lbs.). From the right side of the vehicle, connect the two ORC connectors labeled C1 and C2 and next, set in place the left and right forward console closeout panels. Do not plug in the battery negative cable until the system test is done, to protect yourself from any hazards. After finishing the air bag System test, verify the Occupant Classification System by using a scan tool and up-to-date data and still do not close the hood.
Diagnostic Module
4606919AE
Q: How to Safely Service and Remove an Air Bag Control Module on Chrysler Pacifica?
A:
Open the hood first and disconnect the negative Battery Cable to service the Air Bag Control Module. You must wait two minutes for the air bag system reserve capacitor to empty, because an accidental air bag deployment can cause injury or death. Following this, uninstall the left and right forward console closeout panels. Starting at the right side of the vehicle, remove C1 and C2 which are the ORC electrical connectors for this job. Following that, take out the three retaining screws that attach the ORC, two on the floor tunnel and one nearby and opposite the ORC. Finally, make sure to take off the ORC from the vehicle.
