How to Maintain a Fuel Filler Neck on Chrysler Pacifica?

Start by using the Fuel Pressure Release Procedure and afterward remove the negative battery cable. Ensure the vehicle is lifted and steadied and afterward remove the left rear tire. After that, unscrew the three screws connecting the filler neck to the quarter panel and disconnect the vent line near the filler tube. Separate the fuel filler tube from the rubber hose at the fuel tank and get rid of the filler tube. At installation, start by sitting the filler tube in the right place and hold it with the three screws to the quarter panel. After that, reconnect the vent line to the filler tube and attach one end of the fuel filler tube to the rubber hose at the fuel tank. Bring the ground wire to the body, fit the left rear tire, slide the car down again and attach the negative wire to the battery.

How to Service and Repair a Fuel Filler Neck on Chrysler Pacifica?

Before starting any work on the fuel filler neck, let go of the fuel pressure and cut the negative battery cable. Raise the vehicle, support it properly and then take off the left rear tire and the left rear splash shield. Then, remove 3 screws holding the filler neck to the quarter panel and take the vent line off the filler tube. Disconnect the rubber hose from the fuel filler tube on the fuel tank and then take out the filler tube. First, put the filler tube in its right place, next attach it to the quarter panel with the screws and finally link the vent line to the filler tube. Attach the fuel filler tube to the rubber line on the fuel tank, push the end of the ground wire into the body and fix the screws on the left rear splash shield and tire. When done, drive the car up on the ramps, reduce its height and attach the negative battery cable.

OEM Chrysler Pacifica Fuel Filler Neck

Fuel Tank Filler Neck Hose Pipe

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Fuel Filler Necks found

View related parts

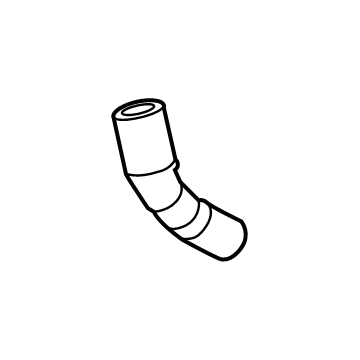

Chrysler Pacifica Filler Tube Part Number: 52029769AB
$57.92 MSRP: $86.90
You Save: $28.98 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose - Fuel Filler; Fuel Filler Hose; Fuel Filler Neck; Hose Fuel Filler
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2017-2025 Chrysler Pacifica | Hybrid Limited, Hybrid Pinnacle, Hybrid Platinum, Hybrid Premium, Hybrid Premium S Appearance, Hybrid Road Tripper, Hybrid S Appearance, Hybrid Select, Hybrid Touring, Hybrid Touring L, Hybrid Touring Plus | 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts

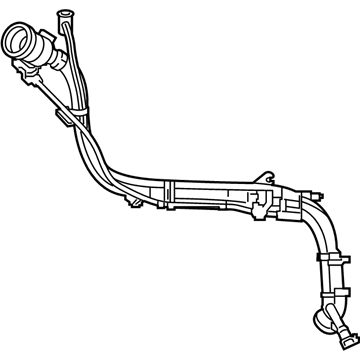

Chrysler Pacifica Filler Neck Part Number: 68615660AA
$217.54 MSRP: $324.00
You Save: $106.46 (33%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Tube - Fuel Filler
- Replaces: 68477185AB, 52029567AG, 52029567AF, 52029567AH, 68477185AA, 52029567AB, 52029567AD, 52029567AC, 52029567AE
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2017-2025 Chrysler Pacifica | Hybrid Limited, Hybrid Pinnacle, Hybrid Platinum, Hybrid Premium, Hybrid Premium S Appearance, Hybrid Road Tripper, Hybrid S Appearance, Hybrid Select, Hybrid Touring, Hybrid Touring L, Hybrid Touring Plus | 3.6L V6, 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Chrysler Pacifica Filler Neck Part Number: 68615662AA
$234.53 MSRP: $345.00
You Save: $110.47 (33%)
ADD TO CART
Product Specifications
- Other Name: Tube - Fuel Filler
- Replaces: 68299075AD, 68299075AE, 68299075AK, 68299075AH, 68299075AJ, 68299075AG, 68299075AC, 68299075AI, 68299075AB, 68299075AF
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2017-2025 Chrysler Pacifica | Hybrid Limited, Hybrid Pinnacle, Hybrid Premium S Appearance, Hybrid Road Tripper, Hybrid S Appearance, Hybrid Select, Hybrid Touring, Hybrid Touring L, L, LX, Limited, Pinnacle, Select, Touring, Touring L, Touring L Plus, Touring Plus | 3.6L V6, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Chrysler Pacifica Filler Tube Part Number: 68299078AA
$34.59 MSRP: $51.55
You Save: $16.96 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose - Fuel Filler; Fuel Filler Hose; Fuel Filler Neck; Hose Fuel Filler
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2017-2025 Chrysler Pacifica | Hybrid Limited, Hybrid Pinnacle, Hybrid Premium S Appearance, Hybrid Road Tripper, Hybrid S Appearance, Hybrid Select, Hybrid Touring, Hybrid Touring L, L, LX, Limited, Pinnacle, Select, Touring, Touring L, Touring L Plus, Touring Plus | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts

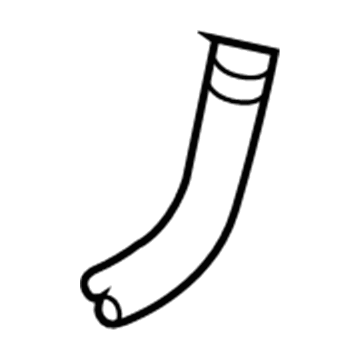

Chrysler Pacifica Filler Hose Part Number: 5103355AA
Product Specifications
- Other Name: Hose - Fuel Filler Tube; Fuel Filler Hose; Hose Fuel Filler Tube
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2004 Chrysler Pacifica | Base | 6 Cyl 3.5 L GAS
View related parts

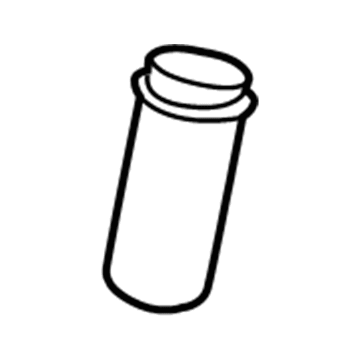

Chrysler Pacifica Filler Neck Part Number: 4809407AF
Product Specifications
- Other Name: Tube - Fuel Filler; Fuel Filler Hose; Fuel Tank Filler Neck; Fuel Filler Neck; Filler Tube; Filler Hose; Tube Fuel Filler
- Replaces: 4809407AD, 4809407AE, 4809407AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2004-2008 Chrysler Pacifica | Base, LX, Limited, Touring | 3.5L V6, 3.8L V6, 4.0L V6, 6 Cyl 3.5 L GAS, 6 Cyl 3.8 L GAS, 6 Cyl 4.0 L GAS

Chrysler Pacifica Fuel Filler Neck

Choose OEM Fuel Filler Neck that meet Chrysler factory standards. Chrysler designs and tests every component for precision and durability. Each Fuel Filler Neck follows strict manufacturing steps to lock in quality and fit. If your Chrysler Pacifica matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Pacifica parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

Chrysler Pacifica Fuel Filler Neck Parts and Q&A

Filler Hose
5103355AA
Q: How to Maintain a Fuel Filler Neck on Chrysler Pacifica?
A:
Start by using the Fuel Pressure Release Procedure and afterward remove the negative Battery Cable. Ensure the vehicle is lifted and steadied and afterward remove the left rear tire. After that, unscrew the three screws connecting the filler neck to the quarter panel and disconnect the vent line near the filler tube. Separate the fuel filler tube from the rubber hose at the Fuel Tank and get rid of the filler tube. At installation, start by sitting the filler tube in the right place and hold it with the three screws to the quarter panel. After that, reconnect the vent line to the filler tube and attach one end of the fuel filler tube to the rubber hose at the fuel tank. Bring the ground wire to the body, fit the left rear tire, slide the car down again and attach the negative wire to the battery.
Filler Neck
4809407AF
Q: How to Service and Repair a Fuel Filler Neck on Chrysler Pacifica?
A:
Before starting any work on the fuel filler neck, let go of the fuel pressure and cut the negative Battery Cable. Raise the vehicle, support it properly and then take off the left rear tire and the left rear splash shield. Then, remove 3 screws holding the filler neck to the quarter panel and take the vent line off the filler tube. Disconnect the rubber hose from the fuel filler tube on the Fuel Tank and then take out the filler tube. First, put the filler tube in its right place, next attach it to the quarter panel with the screws and finally link the vent line to the filler tube. Attach the fuel filler tube to the rubber line on the fuel tank, push the end of the ground wire into the body and fix the screws on the left rear splash shield and tire. When done, drive the car up on the ramps, reduce its height and attach the negative battery cable.
