How to Service and Repair a Fuel Level Sensor on Chrysler PT Cruiser?

To handle repairs for the fuel level sensor, the first step is to remove the fuel pump module. Press the retaining tab to unplug the fuel pump/level sensor connector from the bottom of the fuel pump module electrical connector. Pay attention that the top pump module harness on the flange cannot be removed. After that, take out the wedge lock that holds the electrical connector in place. Remove the level sensor terminal connectors with Special Tool C-4334 or a similar tool. Push against the tab and move the sensor to the bottom of the fuel pump module, then unseat the level sensor from the channel within the module. Wrap the wires into the groove at the back of the level sensor, then push the sensor into the channel, feeding the wire as you go, until a click tells you that it has latched properly. Lift the sensors into the connector housing and secure them in the correct position by pulling straight down. Finally, set the locking wedge in place, raise the connector up into the bottom of the fuel pump module electrical connector and place and lock the fuel pump module in place.

OEM Chrysler PT Cruiser Fuel Level Sensor

Gas Gauge Sensor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 Fuel Level Sensors found

View related parts
Chrysler PT Cruiser Fuel Pump Part Number: 5017204AE
$428.48 MSRP: $649.00
You Save: $220.52 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module Kit - Fuel Pump/Level Unit; Electric Fuel Pump Assembly; Fuel Sending Unit.; Module Kit Fuel Pump/Level Unit
- Replaces: RL017204AE, 5017204AD, 5017204AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2005 Chrysler PT Cruiser | Base, Dream, Limited, Touring | 2.4L L4, 4 Cyl 2.4 L GAS
View related parts
Chrysler PT Cruiser Fuel Pump Gasket Part Number: 68304753AA
$32.23 MSRP: $47.75
You Save: $15.52 (33%)
ADD TO CART
Product Specifications
- Other Name: O Ring - Fuel Pump And Level Unit; Fuel Pump Tank Seal; Fuel Pump Seal; Fuel Pump Assembly Seal; Gasket Fuel Pump
- Replaces: 57009306AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2004-2010 Chrysler PT Cruiser | 2.4L L4
View related parts

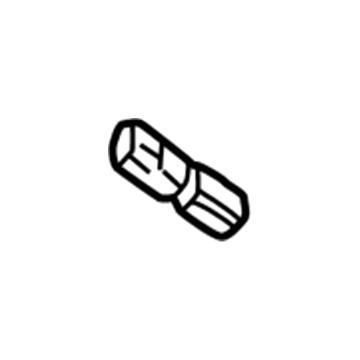

Chrysler PT Cruiser Fuel Gauge Sending Unit Part Number: 68027671AC
$120.10 MSRP: $177.00
You Save: $56.90 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Level Unit - Fuel; Fuel Tank Sending Unit; Fuel Level Sensor; Fuel Sending Unit; Oil Pressure Sending Unit; Sending Unit
- Replaces: 68027671AB, 68027671AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2008-2010 Chrysler PT Cruiser | Base, Classic, Couture Edition, LX, Limited, Touring | 2.4L L4, 4 Cyl 2.4 L GAS
View related parts
Chrysler PT Cruiser Fuel Gauge Sending Unit Part Number: 5114546AC
Product Specifications
- Other Name: Level Unit - Fuel; Fuel Sender and Hanger Assembly; Fuel Tank Sending Unit; Fuel Level Sensor; Fuel Sending Unit; Sending Unit; Level Unit Kit Fuel
- Replaces: 5114546AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2004-2008 Chrysler PT Cruiser | 2.4L L4
View related parts
Chrysler PT Cruiser Fuel Gauge Sending Unit Part Number: 5017205AC
Product Specifications
- Other Name: Level Kit - Fuel; Fuel Sender and Hanger Assembly; Fuel Tank Sending Unit; Fuel Level Sensor; Fuel Sending Unit; Sending Unit; Level Unit Kit Fuel
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2005 Chrysler PT Cruiser | Base, Dream, Dream Cruiser, GT, Limited, Street Cruiser, Touring | 4 Cyl 2.4 L GAS

Chrysler PT Cruiser Fuel Level Sensor

Choose OEM Fuel Level Sensor that meet Chrysler factory standards. Chrysler designs and tests every component for precision and durability. Each Fuel Level Sensor follows strict manufacturing steps to lock in quality and fit. If your Chrysler PT Cruiser matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine PT Cruiser parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

The Fuel Level Sensor of Chrysler PT Cruiser cars has a simple important role in the car, that is to indicate the degree of fullness of thefuel tank and when it is time for refueling. It works at high temperatures and comes with excellent accuracy in its reading even as it uses little power. The sensor usually has a float and an actuating rod and a resistor which helps in conveying the signals that are sent to the fuel gauge. There might be some differences in the PT Cruiser models from Chrysler with regards with their Fuel Level Sensor but the idea or the functioning of this part is similar. Well-working sensors avoid errors including a display of 'Full' status even after a long time ago refueling. In case there are problems with the Fuel Level Sensor, one has to call experts or have a general idea of the sensor and its parts for justification. In general, it can be established that the Fuel Level Sensor is very necessary in Chrysler PT Cruiser for accurate measurement of fuel quantity in automobiles.
