How to Service and Repair an Alternator on 2.0 and 2.4L Engines on Chrysler Sebring?

Before tending to the alternator on 2.0 and 2.4L engines, first take off and isolate the negative battery cable from the battery. Following that, unmount the right front wheel, together with the underbody air dam and the accessory drive shield. After that, remove the accessory drive idler pulley and loosen the lower mounting bolt. Free up the air conditioning compressor by pulling it down and running it towards the exterior side of the car to give yourself more room when removing the generator. detach the field circuit from the generator and after that, remove the B+ terminal and the wire. Once done, take out the upper and lower mounting bolts for the generator. Move the battery terminal to the other side of the A/C line so it is out of the way when you remove the generator. Spin your generator pulley so it rests at the bottom, then pull the generator out and out of the car.

How to Maintain and Fix an Alternator on a 2.0/2.4L Engine on Chrysler Sebring?

To work on or repair the alternator on a 2.0/2.4L engine, first disconnect the negative battery cable and then lift and hold up the vehicle. Start by taking off the right front wheel and next remove the underbody air dam and the accessory drive splash shield. Following that, remove the accessory drive idler pulley, loosen the lower mounting bolt and transport the compressor down and to the outside edge of the vehicle for more room to get out the generator. Separator the field circuit from the generator and next, take out the nut and wire attached to the B+ terminal, then the upper mounting bolt and finally the generator's lower mounting bolt. Remove the main fuse (3), switch the battery terminal (1) to the other side of the A/C line (2) and move the generator. Turn the generator pulley down and move the generator from inside the car.

OEM Chrysler Sebring Alternator

Generator

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

12 Alternators found

View related parts

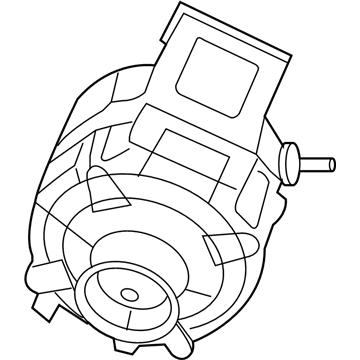

Chrysler Sebring Alternator Part Number: 5033756AB
$386.21 MSRP: $545.00
You Save: $158.79 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Alternator - Engine; Generator Engine
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2010 Chrysler Sebring | Base, LX, Limited, Touring | 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS
View related parts
Chrysler Sebring Alternator Part Number: 4801323AK
$536.40 MSRP: $812.00
You Save: $275.60 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Alternator, Engine; Alternators; Generator Engine
- Replaces: 4801323AB, 4801323AC, 4801323AD
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2010 Chrysler Sebring | Base, LX, Limited, Touring | 2.4L L4, 4 Cyl 2.4 L GAS
View related parts
Chrysler Sebring Alternator Part Number: 4801477AG
$378.81 MSRP: $848.00
You Save: $469.19 (56%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Alternator - Engine; Generator Engine
- Replaces: 4801477AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2010 Chrysler Sebring | LX, Limited, Touring | 2.4L L4, 4 Cyl 2.4 L GAS
View related parts
Chrysler Sebring Alternator Part Number: 4801858AA
$298.48 MSRP: $416.00
You Save: $117.52 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Alternator - Engine
- Replaces: 4606755AD, 4606755AC, 4606755AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2006 Chrysler Sebring | Base, GTC, LX, LXi, Limited, TSi, Touring | 2.4L L4, 2.7L V6, 4 Cyl 2.4 L GAS, 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS, 6 Cyl 3.0 L GAS
View related parts
Chrysler Sebring Alternator Part Number: MD362870
Product Specifications
- Other Name: Alternator - Engine; Generator Engine
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2005 Chrysler Sebring | Base, LX | 4 Cyl 2.4 L GAS
View related parts
Chrysler Sebring Alternator Part Number: MD373094
Product Specifications
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001 Chrysler Sebring | LX, LXi | 6 Cyl 3.0 L GAS
View related parts
Chrysler Sebring Alternator Part Number: MD373093
Product Specifications
- Other Name: Alternator - Engine; Generator Engine
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2005 Chrysler Sebring | LX, LXi, Limited | 6 Cyl 3.0 L GAS
View related parts
Chrysler Sebring Alternator Part Number: 4661998
Product Specifications
- Other Name: Alternators; Alternator, Non - Turbo; Generator Engine
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1995-1999 Chrysler Sebring | LX, LXi | 4 Cyl 2.0 L GAS, 6 Cyl 2.5 L GAS
View related parts
Chrysler Sebring Alternator Part Number: R4609075
Product Specifications
- Other Name: Alternator, Non - Turbo; Generator Engine
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1995-2000 Chrysler Sebring | JX, JXi, LX, LXi | 6 Cyl 2.5 L GAS
View related parts
Chrysler Sebring Alternator Part Number: 4671320
Product Specifications
- Other Name: Alternator - Engine; Alternators; Generator Engine
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1996-2000 Chrysler Sebring | JX, JXi | 4 Cyl 2.4 L GAS, 6 Cyl 2.5 L GAS
View related parts
Chrysler Sebring Alternator Part Number: R4609131AA
Product Specifications
- Other Name: Generator Engine
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1997-2000 Chrysler Sebring | LX, LXi | 6 Cyl 2.5 L GAS
View related parts

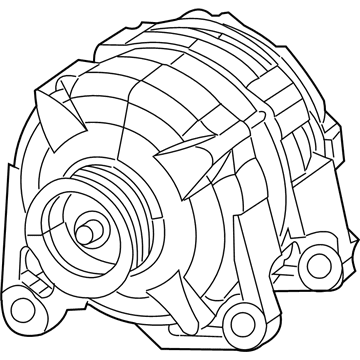

Chrysler Sebring Alternator Part Number: 5033759AB
Product Specifications
- Other Name: Alternator - Engine; Alternators; Generator Engine
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2010 Chrysler Sebring | Base, LX, Limited, Touring | 4 Cyl 2.4 L GAS, 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS

Chrysler Sebring Alternator

Choose OEM Alternator that meet Chrysler factory standards. Chrysler designs and tests every component for precision and durability. Each Alternator follows strict manufacturing steps to lock in quality and fit. If your Chrysler Sebring matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Sebring parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

An important electrical device of the Chrysler Sebring is alternator, this is because it acts as a charger of the vehicle's battery, as well as an on board generator that supplies power to the car's electrical system during vehicle movement. It works by generating electric power from mechanical energy generated by the engine, Create AC that is later regulated into DC to charge the battery and power assorted parts. The chrysler sebring vehicles have used various styles of alternators from the past and currently, the alternators use a two piece cast aluminum housing which contains the stator and rotor. The voltage generated by the alternator is well monitored to avoid deep under charging or over charging with modern automobiles having this as a feature of the PCM. For those who are looking for a higher electrical demand which is required for probably a customized vehicle or high end audio equipment, the need to use high output alternators can in fact help out in delivering the necessary amperage to make up for the additional parts needed.

Chrysler Sebring Alternator Parts and Q&A

Alternator
5033756AB
Q: How to Service and Repair an Alternator on 2.0 and 2.4L Engines on Chrysler Sebring?
A:
Before tending to the alternator on 2.0 and 2.4L engines, first take off and isolate the negative Battery Cable from the battery. Following that, unmount the right front wheel, together with the underbody air dam and the accessory drive shield. After that, remove the accessory drive idler pulley and loosen the lower mounting bolt. Free up the air conditioning compressor by pulling it down and running it towards the exterior side of the car to give yourself more room when removing the generator. detach the field circuit from the generator and after that, remove the B+ terminal and the wire. Once done, take out the upper and lower mounting bolts for the generator. Move the battery terminal to the other side of the A/C line so it is out of the way when you remove the generator. Spin your generator pulley so it rests at the bottom, then pull the generator out and out of the car.
Alternator
4801323AK
Q: How to Maintain and Fix an Alternator on a 2.0/2.4L Engine on Chrysler Sebring?
A:
To work on or repair the alternator on a 2.0/2.4L engine, first disconnect the negative Battery Cable and then lift and hold up the vehicle. Start by taking off the right front wheel and next remove the underbody air dam and the accessory drive splash shield. Following that, remove the accessory drive idler pulley, loosen the lower mounting bolt and transport the compressor down and to the outside edge of the vehicle for more room to get out the generator. Separator the field circuit from the generator and next, take out the nut and wire attached to the B+ terminal, then the upper mounting bolt and finally the generator's lower mounting bolt. Remove the main fuse (3), switch the battery terminal (1) to the other side of the A/C line (2) and move the generator. Turn the generator pulley down and move the generator from inside the car.
