How to Install the ABS Control Module on Dodge Journey?

The first step in installing the Anti-Lock Brake System Module on a left-hand drive vehicle is to clean any dirt off both the HCU and ABM. Never apply any type of lube to O-rings or solenoid valve stem seals when fitting them in. Make sure to replace all old solenoid valve seals, as rust and dirt can reach the valve if they are dirty. Replace the old pump/motor connector O-ring if it is not new and make certain it fits well inside the groove that holds it. Fit the components together and hold the ABM on the HCU before attaching it with the four screws and tightening them to 2 Nm (17 in. lbs.). Be sure that the seal is inserted and locked into the connector before inserting the ABM harness. Attach the socket connector of the ABM wiring harness to the matching socket on the ABM and snap the cover closed. Lift and hold the rear of the vehicle and then carefully allow the ICU assembly to slide down and swing so it hangs in position. Finish by installing and tightening the two bracket screws to 23 Nm (17 ft. lbs.). Place the car lower, set the fresh air plenum into position and put the two mounting screws in place. Affix the wheelhouse brace, then secure each side's four bolts to 48 Nm (35 ft. lbs.). Attach your cowl screen on the wheels with push-pins, position the center screw on the screen so it is pointing counterclockwise, then rotate it 90° to lock it into the wheelhouse brace. Connect the wiper arms, snap the cowl top screen into place and put in the rest of the push-pins. Set the engine appearance cover in place and then attach the negative terminal of the cable to the battery. After that, add the scan tool to initialize the ABM, clear front and rear ABS faults, do the ABS Verification Test and test the vehicle on the road.

How to Remove the ABS Control Module with Hill Start Assist on Dodge Journey?

Before you can take out the Hydraulic Control Unit on a vehicle with Hill Start Assist, you must disconnect and take apart the Integrated Control Unit, because the HCU can only be serviced separately.

OEM Dodge Journey ABS Control Module

Anti Lock Brake Control Module

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

11 ABS Control Modules found

View related parts

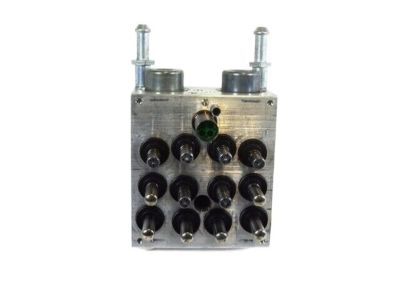

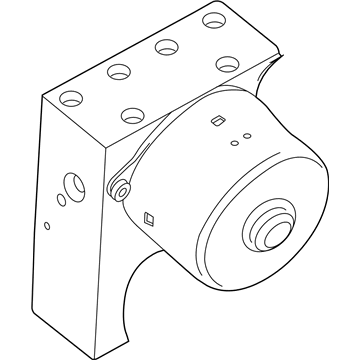

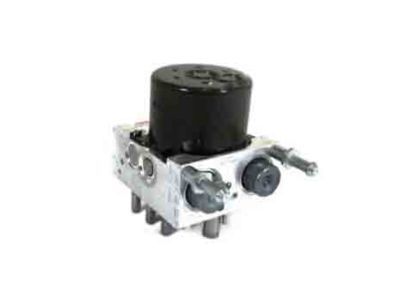

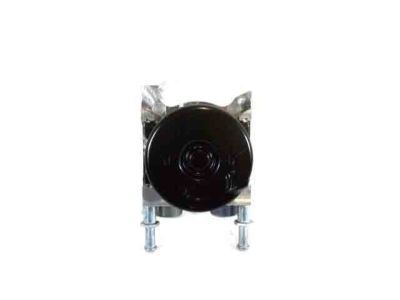

Dodge Journey Modulator Valve Part Number: 68067662AA
$691.58 MSRP: $1010.00
You Save: $318.42 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control - Anti-Lock Brake System; ABS Modulator Valve; ABS Control Module; Modulator; Hydraulic Control Unit Anti-Lock Brake System
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2010-2011 Dodge Journey | Base, Crew, Express, Lux, Mainstreet, R/T, SE, SXT | 4 Cyl 2.4 L GAS, 6 Cyl 3.5 L GAS, 6 Cyl 3.6 L FLEX
View related parts

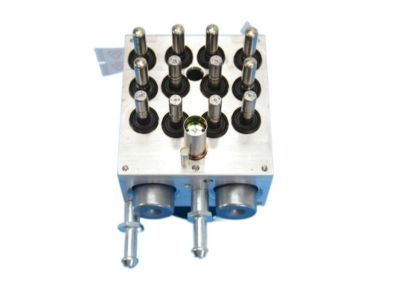

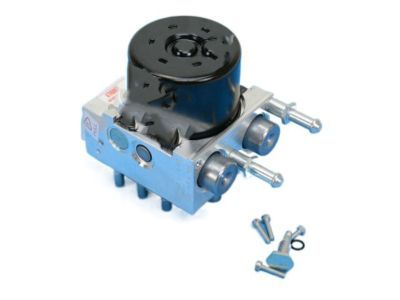

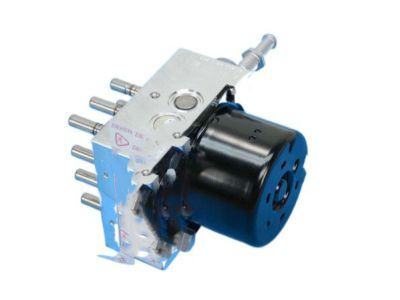

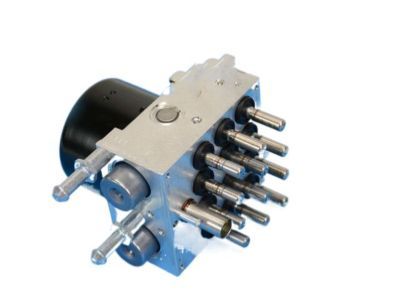

Dodge Journey Modulator Valve Part Number: 68164594AA
$481.78 MSRP: $727.00
You Save: $245.22 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control - Anti-Lock Brake System; ABS Control Module; Modulator; Hydraulic Control Unit Anti-Lock Brake System
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2012-2020 Dodge Journey | AVP, Crew, Crossroad, GT, Limited, R/T, SE, SE Value, SXT | 4 Cyl 2.4 L GAS, 6 Cyl 3.6 L FLEX
View related parts

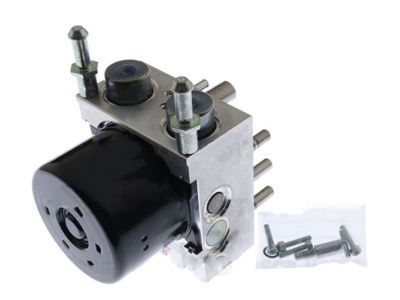

Dodge Journey Modulator Part Number: 68067671AA
$321.91 MSRP: $451.00
You Save: $129.09 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Control - Anti-Lock Brake System; ABS Modulator Valve; ABS Control Module; Hydraulic Control Unit Anti-Lock Brake System
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2012-2013 Dodge Journey | AVP, Crew, R/T, SE, SXT | 4 Cyl 2.4 L GAS, 6 Cyl 3.6 L FLEX
View related parts

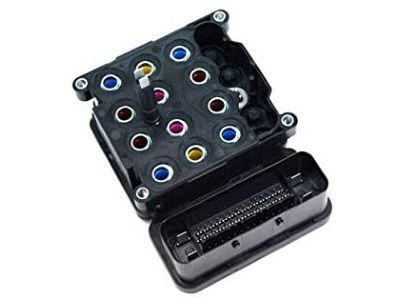

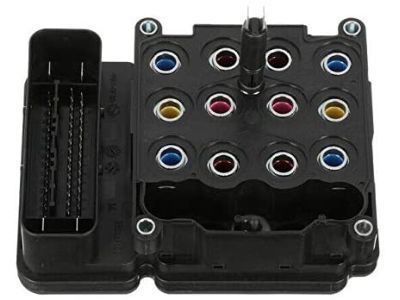

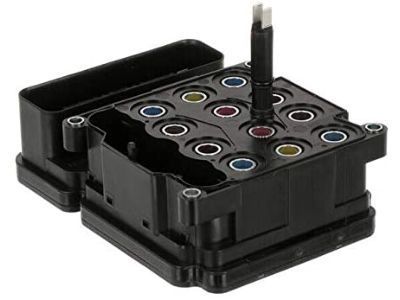

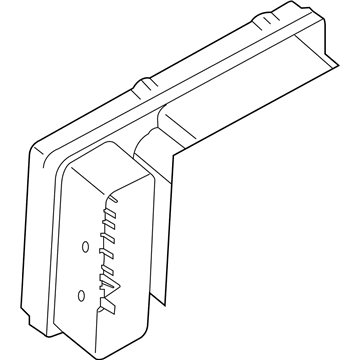

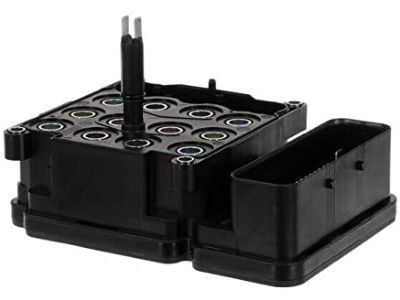

Dodge Journey Control Module Part Number: 68067661AA
Product Specifications
- Other Name: Module - Anti-Lock Brake System; ABS Control Module; Module Anti-Lock Brake System
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2010 Dodge Journey | Base, Crew, R/T, SE, SXT | 4 Cyl 2.4 L GAS, 6 Cyl 3.5 L GAS
View related parts

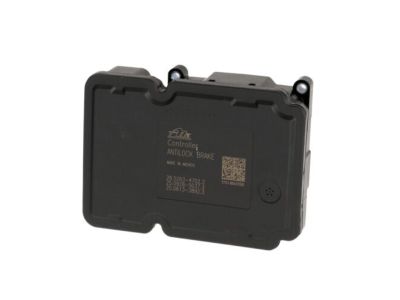

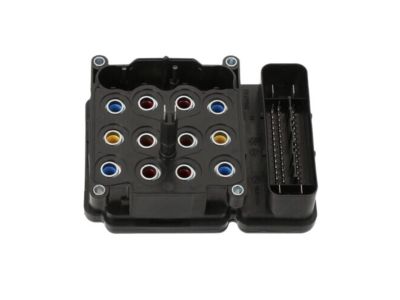

Dodge Journey Control Module Part Number: 68038226AC
$415.64 MSRP: $605.00
You Save: $189.36 (32%)
Product Specifications
- Other Name: None - Anti-Lock Brake System; ABS Control Module
- Replaces: 68038226AA, 68038226AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2009 Dodge Journey | R/T, SE, SXT | 2.4L L4, 2.7L V6, 3.5L V6, 4 Cyl 2.4 L GAS, 6 Cyl 3.5 L GAS
View related parts

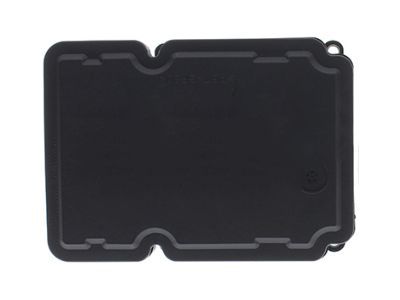

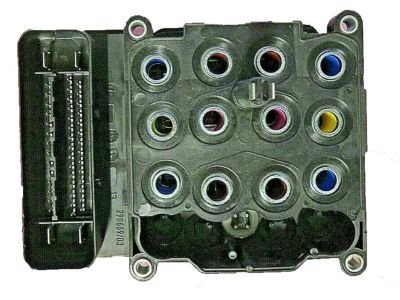

Dodge Journey Control Module Part Number: 68194693AF
$395.46 MSRP: $574.00
You Save: $178.54 (32%)
Product Specifications
- Other Name: Module - Anti-Lock Brake System; ABS Control Module; Modulator
- Replaces: 68194693AB, 68194693AE, 68174982AA, 68194693AA, 68159461AB, 68194693AC, 68194693AD, 68164595AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2012-2018 Dodge Journey | AVP, Crew, Crossroad, GT, Limited, R/T, SE, SXT | 2.4L L4, 3.6L V6, 4 Cyl 2.4 L GAS, 6 Cyl 3.6 L FLEX
View related parts

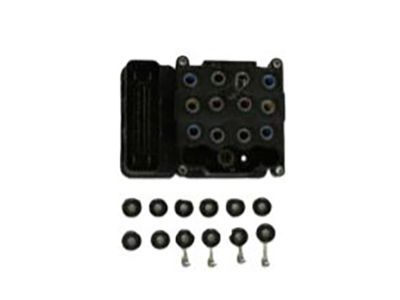

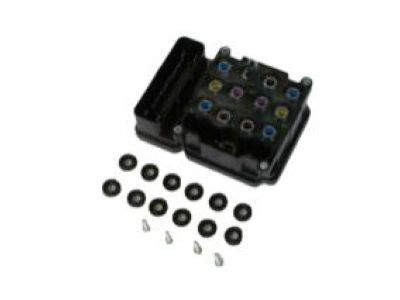

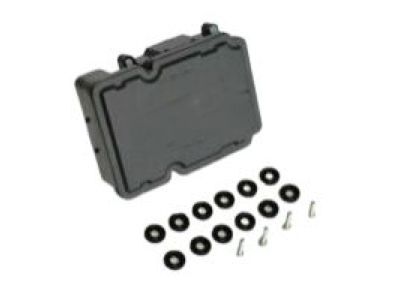

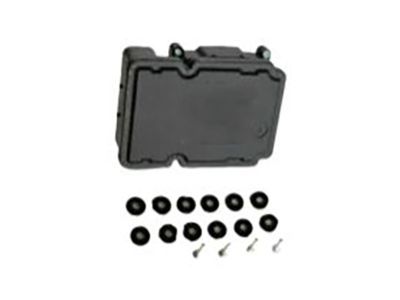

Dodge Journey Control Module Part Number: 68397222AA
Product Specifications
- Other Name: Module - Anti-Lock Brake System; ABS Control Module; Module Anti-Lock Brake System
- Replaces: 68397222AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2018-2020 Dodge Journey | Crossroad, GT, SE, SE Value, SXT | 2.4L L4, 3.6L V6, 4 Cyl 2.4 L GAS, 6 Cyl 3.6 L FLEX
View related parts

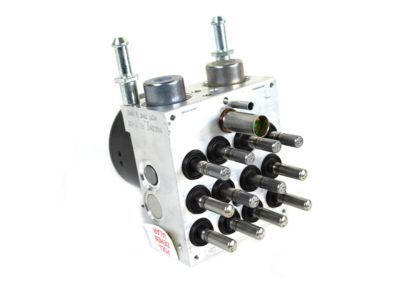

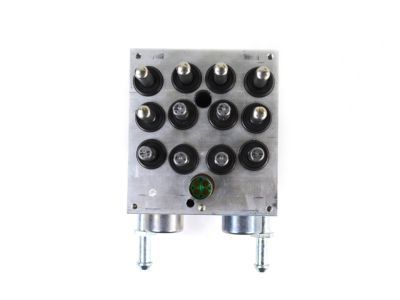

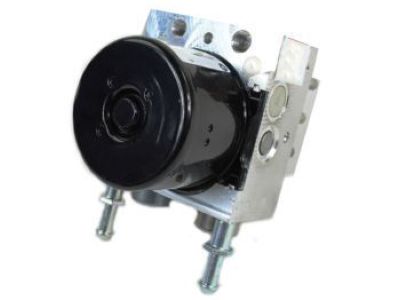

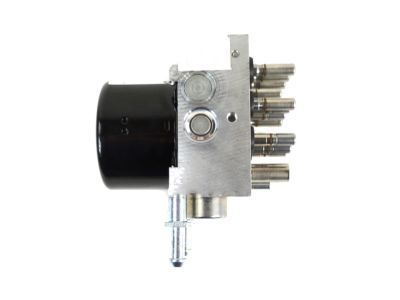

Dodge Journey Modulator Valve Part Number: 68038227AA
Product Specifications
- Other Name: Master Cylinder - Anti-Lock Brake System; ABS Modulator Valve; ABS Control Module; Modulator; Hydraulic Control Unit Anti-Lock Brake System
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2009 Dodge Journey | R/T, SE, SXT | 4 Cyl 2.4 L GAS, 6 Cyl 3.5 L GAS
View related parts
Dodge Journey Control Module Part Number: 68194695AG
Product Specifications
- Other Name: Module - Anti-Lock Brake System; ABS Control Module
- Replaces: 68194695AE, 68194695AF
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2011-2020 Dodge Journey | AVP, Crew, Crossroad, Express, GT, Limited, Lux, Mainstreet, R/T, SE, SE Value, SXT | 2.4L L4, 3.6L V6, 4 Cyl 2.4 L GAS, 6 Cyl 3.6 L FLEX
View related parts
Dodge Journey Module - Anti-Lock Brake System Part Number: 68194695AD
Product Specifications
- Other Name: MODULE-ANTI-LOCK BRAKE SYSTEM
- Replaced by: 68194695AG
- Replaces: 68089576AA, 68159462AB, 68164596AA, 68194695AC, 68194695AA, 68194695AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2011 Dodge Journey | Crew, Express, Lux, Mainstreet, R/T | 4 Cyl 2.4 L GAS, 6 Cyl 3.6 L FLEX
View related parts

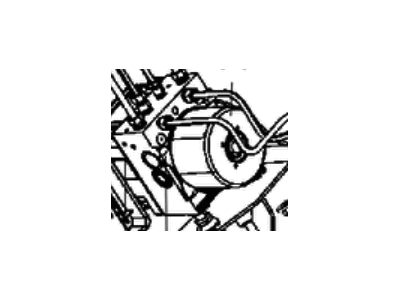

Dodge Journey Modulator Valve Part Number: 68164597AA
Product Specifications
- Other Name: Control - Anti-Lock Brake System; Hydraulic Control Unit Anti-Lock Brake System
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2016-2020 Dodge Journey | Crossroad, GT, R/T, SE, SE Value, SXT | 4 Cyl 2.4 L GAS, 6 Cyl 3.6 L FLEX

Dodge Journey ABS Control Module

Choose OEM ABS Control Module that meet Dodge factory standards. Dodge designs and tests every component for precision and durability. Each ABS Control Module follows strict manufacturing steps to lock in quality and fit. If your Dodge Journey matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Journey parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

This has major impact on the over all braking system of Dodge Journey and for this reason, Dodge Journey ABS Control Module is a very important component. This particular module can be said to facilitate the proper working of the anti-lock braking system to help prevent wheel lock while providing the appropriate amount of traction at the same time during a heavy braking. Dodge Journey ABS Control Module features a significant function of integrating the sophisticated diagnostics along with controlling of the ABS modulator that fulfills the tasks of improving both efficiency and safety aspects of the automobile. Fitting this module to a multitude of Dodge Journey models, this gadget includes the system of the wheel speed sensors, valves and pump that in turn change brake pressure depending on the signals received. Also, most Dodge Journey vehicles with this ABS Control Module are fitted with the electronic stability control and traction control, enhancing vehicle safety in various road conditions. The Dodge Journey has been appreciated for the spacious and affordable vehicle since it first launched in 2009, and thus, the dependability of the ABS Control Module of the car has supported a sound reputation in the automobile industry. Notably, the Dodge Journey ABS Control Module is of high constructiveness and comes with features that enhance this vehicle's compatibility with the modern safety systems, having ensured that the driver can maneuver with ease. In general, the concept of Dodge Journey ABS Control Module is the vivid example of Dodge's striving to produce cars with maximum safety, optimal performance and customers' satisfaction.

Dodge Journey ABS Control Module Parts and Q&A

Modulator Valve
68038227AA
Q: How to Install the ABS Control Module on Dodge Journey?
A:
The first step in installing the Anti-Lock Brake System Module on a left-hand drive vehicle is to clean any dirt off both the HCU and ABM. Never apply any type of lube to O-rings or solenoid Valve Stem Seals when fitting them in. Make sure to replace all old solenoid valve seals, as rust and dirt can reach the valve if they are dirty. Replace the old pump/motor connector O-ring if it is not new and make certain it fits well inside the groove that holds it. Fit the components together and hold the ABM on the HCU before attaching it with the four screws and tightening them to 2 Nm (17 in. lbs.). Be sure that the seal is inserted and locked into the connector before inserting the ABM harness. Attach the socket connector of the ABM wiring harness to the matching socket on the ABM and snap the cover closed. Lift and hold the rear of the vehicle and then carefully allow the ICU assembly to slide down and swing so it hangs in position. Finish by installing and tightening the two bracket screws to 23 Nm (17 ft. lbs.). Place the car lower, set the fresh air plenum into position and put the two mounting screws in place. Affix the wheelhouse brace, then secure each side's four bolts to 48 Nm (35 ft. lbs.). Attach your cowl screen on the wheels with push-pins, position the center screw on the screen so it is pointing counterclockwise, then rotate it 90° to lock it into the wheelhouse brace. Connect the Wiper Arms, snap the cowl top screen into place and put in the rest of the push-pins. Set the engine appearance cover in place and then attach the negative terminal of the cable to the battery. After that, add the scan tool to initialize the ABM, clear front and rear ABS faults, do the ABS Verification Test and test the vehicle on the road.
Control Module
68038226AC
Q: How to Remove the ABS Control Module with Hill Start Assist on Dodge Journey?
A:
Before you can take out the Hydraulic Control Unit on a vehicle with Hill Start Assist, you must disconnect and take apart the Integrated Control Unit, because the HCU can only be serviced separately.
