OEM Dodge Nitro Oil Pan

Dodge Nitro Oil Pan Parts and Q&A

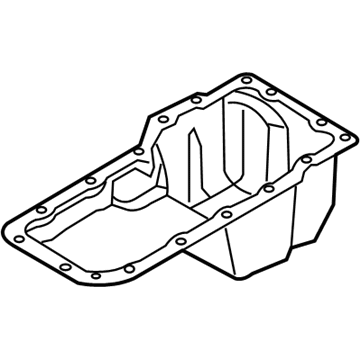

• Oil Pan
  53021779AC
  Q: How to Remove and Replace the Oil Pan on Dodge Nitro?

  A:

  Before anything else, you should unhook the battery and add Engine Support Fixture 8534B. Lift and support the automobile, then take out the front wheel and tire groups and if there is one, also the skid plate. Extract the engine oil, remove the transmission engine structural cover if fitted and eliminate the oil cooler line bracket from the transmission. After that, remove the front axle assembly and make sure to loosen both engine mount through bolts before you lower the vehicle. You don't have to disassemble the viscous fan or fan shroud while replacing the oil pan. Move the engine up a little using Engine Support Fixture 8534B, so the viscous fan is almost touching the fan shroud, then raise the whole vehicle. Lift the engine up one more time, remove the bolts and separate the oil pan from the engine. Get rid of the nuts and bolt under the oil pump pick-up tube, keeping in mind you may need to slide the oil pan to and fro to get at the nuts and bolt. After that, add the oil pump pick-up tube to the oil pan and take out the oil pan, pick-up tube and windage tray as a group from the front.

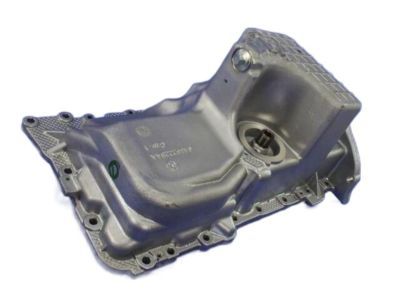

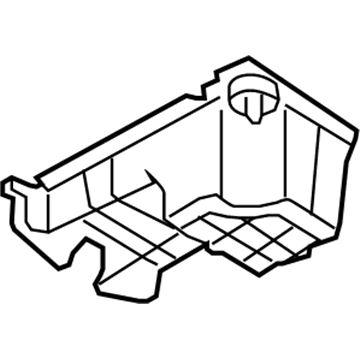

• Oil Pan
  4892228AB
  Q: How to Install an Oil Pan on Dodge Nitro?

  A:

  When pulling out your 4x2, first wipe clean the surface on the bedplate and the oil pan gasket, as well as the gasket surfaces on the oil pan and block. Check the oil pan gasket that is part of the engine and replace it if it is damaged. Following this, put the oil pump pick-up tube into the oil pan and assemble the oil pan, pick-up tube and windage tray before you install them from the front of the vehicle. Place the windage tray inside; then screw on the oil pump pick-up tube, making sure it is secure with the two nuts and one bolt as you rotate the oil pan for clear access to all the fasteners. Secure the pick-up tube fasteners first and after that put in and tighten the oil pan bolts. If you have the engine and transmission cover, install the engine to the transmission structural cover. Lower the engine and get rid of Engine Support 8534B and now bring the car down from the lift. With 8534B Engine Support Fixture, lower your engine and then take it out. Lift the vehicle and tighten all engine mount through bolts. Put in the transmission oil cooler line bracket, bring the car down onto the lift again, add more engine oil, attach the battery and check for any leaks.
