How to Remove and Install a Camshaft Bearing on Dodge Ram 3500?

Before you remove the camshaft bearing, ensure the engine is completely taken apart and drive out the core plug at the rear cam bearing. Then, attach the correct size adapters and horseshoe washers found in the Camshaft Bearing Remover/Installer Tool C-3132-A to the back of every bearing shell and use them to remove the bearing shells. For installation, position the new shell on the adapter, use the Camshaft Bearing Remover/Installer Tool C-3132-A, lock the rear bearing and secure the horseshoe. Ease the bearing shell into the bushelled area of the crankcase with the direction reversed, then align each bearing to make their holes fit properly with the oil holes in the main bearing. If the holes where you mount the oil nozzles are not sitting exactly right, try fixing them. It is vital to tighten a core hole plug at the rear of the camshaft and check that it seals properly.

How to Service and Repair Camshaft Bearings on Dodge Ram 3500?

Start by measuring each bore; if the first or rear cam bushing's bore is worn too much, replace the service bushing and check the remaining bores for damage or excessive wear. If a bore without a bushing wears past its limit, the engine must be removed to machine it and install service bushings and if it is very worn, the cylinder block should be replaced. Remove the camshaft before using a universal cam bushing tool to move the bushing out of the No.1 bore and No.7. While doing this, position a mark on the cylinder block to make sure the oil hole aligns with the bushing's oil hole. When installing the new bushing, put Loctite 640 on its backside so that no adhesive gets into the oil hole. Fix the front bushing with a universal cam flush to the front block face so that the rodhole for the oil can coincide with a 3.2 mm (0.128 in.) diameter rod passage. Carefully slide the rear camshaft bushing onto the block with the oil hole lined up, as a 3.2 mm (0.128 in.) rod should also clear the hole. Be sure at the end to measure the bore inside diameters of the bushings at both the front and rear bushings so that the minimum is 54.083mm (2.1293in.) and the maximum is 54.147mm (2.1318in.).

OEM Dodge Ram 3500 Camshaft Bearing

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

11 Camshaft Bearings found

View related parts
Dodge Ram 3500 Camshaft Bearings Part Number: 4179777
Product Specifications
- Other Name: Bearing - Camshaft; Bearings; Bearing, Camshaft No. 1; Bearing, Camshaft #1; Bearing Camshaft #3; Bearing, Camshaft
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1994-2002 Dodge Ram 3500 | Base | 8 Cyl 5.9 L GAS
View related parts
Dodge Ram 3500 Camshaft Bearings Part Number: 4179776
Product Specifications
- Other Name: Bearing - Camshaft; Camshaft Bearing; Bearings; Bearing, Camshaft No. 1; Bearing, Camshaft #1; Bearing Camshaft #2; Bearing, Camshaft
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1994-2002 Dodge Ram 3500 | Base | 8 Cyl 5.9 L GAS
View related parts
Dodge Ram 3500 Camshaft Bearings Part Number: 1632526
Product Specifications
- Other Name: Bearing - Camshaft; Camshaft Bearing; Bearings; Bearing Camshaft #4 Or #5; Bearing, Camshaft No. 1; Bearing, Camshaft #1; Bearing, Camshaft
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1994-2002 Dodge Ram 3500 | Base | 8 Cyl 5.9 L GAS
View related parts
Dodge Ram 3500 Bearings Part Number: 4741480
Product Specifications
- Other Name: Bearing - Camshaft; Camshaft Bearing; Bearing Camshaft #6; Bearing, Camshaft
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1994-2003 Dodge Ram 3500 | Base, Laramie, SLT, ST | 10 Cyl 8.0 L GAS
View related parts
Dodge Ram 3500 Bearings Part Number: 4741479
Product Specifications
- Other Name: Bearing - Camshaft; Camshaft Bearing; Bearing Camshaft #5; Bearing, Camshaft
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1994-2003 Dodge Ram 3500 | Base, Laramie, SLT, ST | 10 Cyl 8.0 L GAS
View related parts
Dodge Ram 3500 Bearings Part Number: 4741478
Product Specifications
- Other Name: Bearing - Camshaft; Camshaft Bearing; Bearing Camshaft #4; Bearing, Camshaft
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1994-2003 Dodge Ram 3500 | Base, Laramie, SLT, ST | 10 Cyl 8.0 L GAS
View related parts
Dodge Ram 3500 Bearings Part Number: 4741477
Product Specifications
- Other Name: Bearing - Camshaft; Camshaft Bearing; Bearing Camshaft #3; Bearing, Camshaft
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1994-2003 Dodge Ram 3500 | Base, Laramie, SLT, ST | 10 Cyl 8.0 L GAS
View related parts
Dodge Ram 3500 Bearings Part Number: 4741476
Product Specifications
- Other Name: Bearing - Camshaft; Camshaft Bearing; Bearing Camshaft #2; Bearing, Camshaft
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1994-2003 Dodge Ram 3500 | Base, Laramie, SLT, ST | 10 Cyl 8.0 L GAS
View related parts

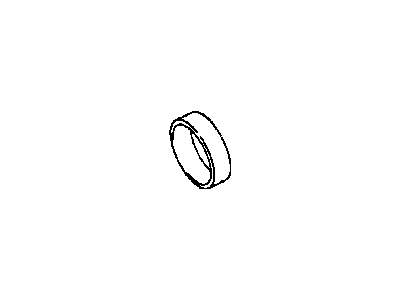

Dodge Ram 3500 Bearings Part Number: 4741475
Product Specifications
- Other Name: Bearing - Camshaft; Camshaft Bearing; Bearing Camshaft #1; Bearing, Camshaft
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1994-2003 Dodge Ram 3500 | Base, Laramie, SLT, ST | 10 Cyl 8.0 L GAS
View related parts
Dodge Ram 3500 Camshaft Bearings Part Number: 4179778
Product Specifications
- Other Name: Bearing - Camshaft; Camshaft Bearing; Bearings; Bearing Camshaft #3 Or #4; Bearing, Camshaft No. 1; Bearing, Camshaft #1; Bearing, Camshaft
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1994-2002 Dodge Ram 3500 | Base | 8 Cyl 5.9 L GAS
View related parts
Dodge Ram 3500 Camshaft Bearings Part Number: 3830603
Product Specifications
- Other Name: Bearing - Camshaft; Camshaft Bearing; Bearings; Bearing, Camshaft No. 1; Bearing, Camshaft #1; Bearing Camshaft #1; Bearing, Camshaft
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1994-2002 Dodge Ram 3500 | Base | 8 Cyl 5.9 L GAS

Dodge Ram 3500 Camshaft Bearing

Choose OEM Camshaft Bearing that meet Dodge factory standards. Dodge designs and tests every component for precision and durability. Each Camshaft Bearing follows strict manufacturing steps to lock in quality and fit. If your Dodge Ram 3500 matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Ram 3500 parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

Dodge Ram 3500 Camshaft Bearing Parts and Q&A

Camshaft Bearings
1632526
Q: How to Remove and Install a Camshaft Bearing on Dodge Ram 3500?
A:
Before you remove the camshaft bearing, ensure the engine is completely taken apart and drive out the core plug at the rear cam bearing. Then, attach the correct size adapters and horseshoe washers found in the Camshaft Bearing Remover/Installer Tool C-3132-A to the back of every bearing shell and use them to remove the bearing shells. For installation, position the new shell on the adapter, use the Camshaft Bearing Remover/Installer Tool C-3132-A, lock the rear bearing and secure the horseshoe. Ease the bearing shell into the bushelled area of the crankcase with the direction reversed, then align each bearing to make their holes fit properly with the oil holes in the main bearing. If the holes where you mount the oil nozzles are not sitting exactly right, try fixing them. It is vital to tighten a core hole plug at the rear of the camshaft and check that it seals properly.
Bearings
4741475
Q: How to Service and Repair Camshaft Bearings on Dodge Ram 3500?
A:
Start by measuring each bore; if the first or rear cam bushing's bore is worn too much, replace the service bushing and check the remaining bores for damage or excessive wear. If a bore without a bushing wears past its limit, the engine must be removed to machine it and install service bushings and if it is very worn, the cylinder block should be replaced. Remove the Camshaft before using a universal cam bushing tool to move the bushing out of the No.1 bore and No.7. While doing this, position a mark on the cylinder block to make sure the oil hole aligns with the bushing's oil hole. When installing the new bushing, put Loctite 640 on its backside so that no adhesive gets into the oil hole. Fix the front bushing with a universal cam flush to the front block face so that the rodhole for the oil can coincide with a 3.2 mm (0.128 in.) diameter rod passage. Carefully slide the rear camshaft bushing onto the block with the oil hole lined up, as a 3.2 mm (0.128 in.) rod should also clear the hole. Be sure at the end to measure the bore inside diameters of the bushings at both the front and rear bushings so that the minimum is 54.083mm (2.1293in.) and the maximum is 54.147mm (2.1318in.).
