How to Maintain and Fix a Fan Blade on Dodge Ram 3500?

The first thing to do is take out the negative battery cable and pull out the top throttle cable before servicing or repairing the fan blade. Only for the 8.0L V10, do not unsnap the coolant reserve or overflow tank from the fan shroud. To remove the thermal viscous fan drive/fan blade assembly, turn the mounting nut counterclockwise, using a Snap-On 36 Mm Fan Wrench, a Special Tool 6958 Spanner Wrench and Adapter Pins 8346 to secure the pulley in place. Do not take out the viscous fan drive or remove bolts from the fan blade right now. Remove the fan shroud and fan blade/viscous fan drive assembly by taking the four fan shroud-to-radiator mounting bolts. Suggest that the viscous fan drive is not kept flat on its side to protect the lubricant from being contaminated by silicone fluid. Do not take out the water pump pulley-to-water pump bolts; leave the spring tension in place. Loosen the bolts on the fan, remembering that you may find the word Reverse printed on the viscous fan drive or the fan in a vehicle with a serpentine drive belt. Dust away any dirt from the fan's blades with your hands, followed by a wash in plain water and mild soap. If the fan assembly is changed because of mechanical damage, check both the water pump and the viscous fan drive for signs of being affected by the excessive vibration. After removing the fan blade assembly from the viscous fan drive unit, lay it flat with its leading edge down. When the gap between the blades and the surface is larger than 2.0 mm (0.090 Inch) or when the assembly rocks more than 2.0 mm (0.090 Inch), the fan needs to be changed. Inspect the blades for cracks, bends, loose rivets or damage to welds. If anything is found, change the fan out. During installation, fasten the fan blade assembly to the viscous fan drive, each bolt tightened to 23 Nm (17 Ft. lbs.) torque. Incorporate the entire assembly formed by the fan shroud and fan blade/viscous fan drive into the vehicle and then fit the shroud. Place the fan blade/viscous fan drive on the water pump shaft, put back the fluid reserve/tank for every engine aside from the 8.0L V10 and connect the throttle cable. To finish, connect the battery's negative cable. After putting in the viscous fan drive, run the engine at about 2000 rpm for around two minutes to allow the fluid in the drive to spread evenly.

OEM Dodge Ram 3500 Fan Blade

Fan Propeller Blade

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

12 Fan Blades found

View related parts
Dodge Ram 3500 Fan Blade Part Number: 55056937AA
$108.77 MSRP: $160.00
You Save: $51.23 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fan - Cooling; Radiator Fan Assembly; Fan Cooling
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2010 Dodge Ram 3500 | Laramie, SLT, ST, SXT | 6 Cyl 6.7 L DIESEL
View related parts
Dodge Ram 3500 Fan Blade Part Number: 68031871AA
$47.44 MSRP: $68.30
You Save: $20.86 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Fan - Cooling; A/C Condenser Fan Assembly; Engine Cooling Fan Blade; Dual Radiator Fan Assembly.; Fan Assembly; Fan Cooling Includes: Nut; Fan Cooling
- Replaces: 5104787AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2004-2009 Dodge Ram 3500 | Laramie, SLT, ST, SXT, Sport, TRX4 | 5.7L V8, 6 Cyl 5.9 L DIESEL, 6 Cyl 6.7 L DIESEL, 8 Cyl 5.7 L GAS
View related parts
Dodge Ram 3500 Cooling Fan, Front Part Number: 55056947AA
$167.33 MSRP: $249.00
You Save: $81.67 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fan - Cooling; Engine Cooling Fan Clutch Blade, Front; Radiator Fan Assembly; Fan Blade; Fan Cooling
- Position: Front
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2009 Dodge Ram 3500 | Laramie, SLT, ST, SXT | 8 Cyl 5.7 L GAS
View related parts
Dodge Ram 3500 Fan Blade Part Number: 52027846AB
$241.33 MSRP: $356.00
You Save: $114.67 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fan - Cooling; Engine Cooling Fan Clutch Blade; Radiator Fan Assembly; Fan Cooling
- Replaced by: 52027846AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2006-2008, 2000-2002 Dodge Ram 3500 | Base, Laramie, SLT, ST, SXT, Sport | 8 Cyl 5.7 L GAS, 8 Cyl 5.9 L GAS
View related parts

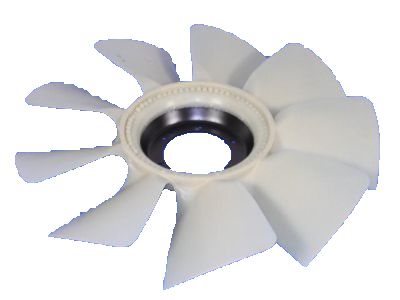

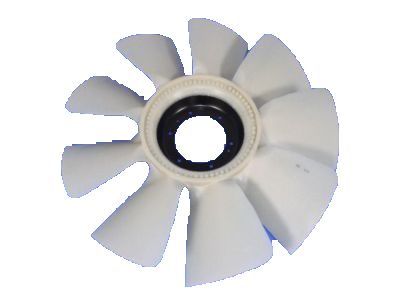

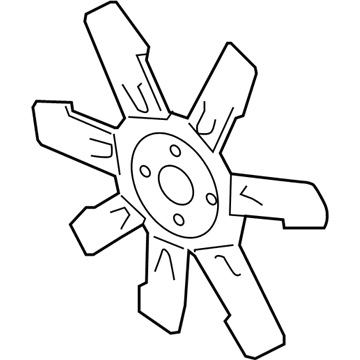

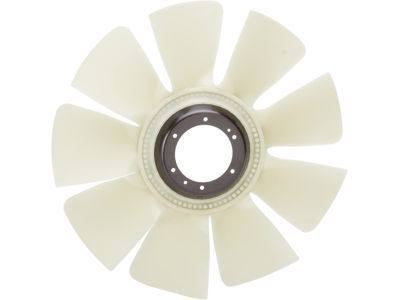

Dodge Ram 3500 Fan Blade Part Number: 52028878AB
$126.93 MSRP: $166.00
You Save: $39.07 (24%)
ADD TO CART
Product Specifications
- Other Name: Fan - Cooling; Engine Cooling Fan Clutch Blade; Engine Cooling Fan Blade; Radiator Fan Assembly; Fan Cooling
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003-2009 Dodge Ram 3500 | Laramie, SLT, ST, SXT, Sport, TRX4 | 6 Cyl 5.9 L DIESEL, 6 Cyl 6.7 L DIESEL
View related parts

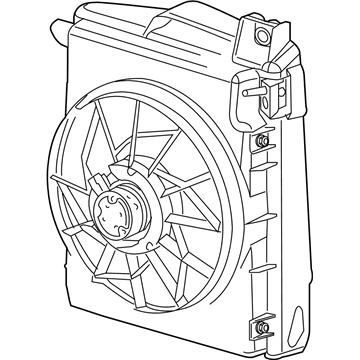

Dodge Ram 3500 Fan Assembly Part Number: 68004163AB
$252.66 MSRP: $374.00
You Save: $121.34 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fan Module - Condenser Cooling; A/C Condenser Fan Assembly; Radiator Fan Assembly; Cooling Fan Blade.; Fan Module; Cooling Module
- Replaces: 68004163AA, 68044159AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2008 Dodge Ram 3500 | Laramie, SLT, ST, SXT, Sport, TRX4 | 5.7L V8, 6 Cyl 5.9 L DIESEL, 6 Cyl 6.7 L DIESEL, 8 Cyl 5.7 L GAS
View related parts
Dodge Ram 3500 Fan Blade Part Number: 52027999AC
$549.67 MSRP: $719.00
You Save: $169.33 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fan - Cooling; Engine Cooling Fan Clutch Blade; Radiator Fan Assembly; Fan
- Replaces: 52027999AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1994-2008 Dodge Ram 3500 | Base, Laramie, SLT, ST, SXT, Sport | 5.7L V8, 8 Cyl 5.7 L GAS, 8 Cyl 5.9 L GAS
View related parts
Dodge Ram 3500 Fan Blade Part Number: 52027846AC
Product Specifications
- Other Name: Fan - Cooling
- Replaces: 52027846AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2000-2008 Dodge Ram 3500
View related parts

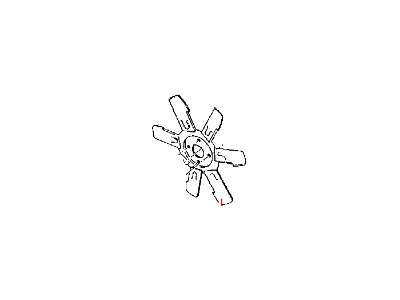

Dodge Ram 3500 Fan Blade Part Number: 52028893AA
Product Specifications
- Other Name: Fan - Cooling; Radiator Fan Assembly; Fan Cooling
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2000-2002 Dodge Ram 3500 | Base | 6 Cyl 5.9 L DIESEL
View related parts
Dodge Ram 3500 Fan Blade Part Number: 52027709
Product Specifications
- Other Name: Fan - Cooling; Radiator Fan Assembly; Fan Cooling; Fan
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1994-2002 Dodge Ram 3500 | Base | 10 Cyl 8.0 L GAS
View related parts
Dodge Ram 3500 Fan Blade Part Number: 52028756AB
Product Specifications
- Other Name: Fan - Cooling; Engine Cooling Fan Clutch Blade; Engine Cooling Fan Blade; Radiator Fan Assembly
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003 Dodge Ram 3500 | Laramie, SLT, ST | 10 Cyl 8.0 L GAS
View related parts
Dodge Ram 3500 Transmission Cooler Part Number: 52028916AC
Product Specifications
- Other Name: Fan - Cooling; Engine Cooling Fan Clutch Blade; Radiator Fan Assembly; Fan Blade; Fan Cooling
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2009 Dodge Ram 3500 | Laramie, SLT, ST, SXT, Sport | 6 Cyl 6.7 L DIESEL

Dodge Ram 3500 Fan Blade

Choose OEM Fan Blade that meet Dodge factory standards. Dodge designs and tests every component for precision and durability. Each Fan Blade follows strict manufacturing steps to lock in quality and fit. If your Dodge Ram 3500 matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Ram 3500 parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

Dodge Ram 3500 Fan Blade is another essential part that is trusted and ensures the improved stability and general standard of vehicles in the market. This Fan Blade is custom-made for numerous models of the Dodge Ram 3500, and because of this, it is crucial in regulating the functions of the automobile cooling systems, particularly the radiator, engine, and air conditioning. Since cool air can significantly improvise and sustain the operations of these components, the Dodge Ram 3500 Fan Blade is very crucial for enhancing the performance and safety of the vehicle for intensive and huge jobs. The cohesiveness with various Ram 3500 models in the past years inspires its versatility and flexibility in satisfying those truck lovers and customers. Concerning the Fan Blade, efficiency in the flow of air is the key goal; it serves both as a cooling method and an element for supporting the durability of the engine or rather any vital equipment on the vehicle. Also, the Dodge Ram Fan blade is unique in construction, as the manufacturers focused on the aspect of durability to meet any conditions as required. This reliability is the trademark of Dodge brand; this solidifies the Ram 3500 as a reliable working utility truck. Therefore, with superior features and importance in the aim of boosting the efficiency of vehicles and safety Dodge Ram 3500 Fan Blade adds the value in Dodge Ram 3500 series that make the vehicles outstanding and preferred by consumers in the market.

Dodge Ram 3500 Fan Blade Parts and Q&A

Fan Blade
52027846AB
Q: How to Maintain and Fix a Fan Blade on Dodge Ram 3500?
A:
The first thing to do is take out the negative Battery Cable and pull out the top Throttle Cable before servicing or repairing the fan blade. Only for the 8.0L V10, do not unsnap the coolant reserve or overflow tank from the fan shroud. To remove the thermal viscous fan drive/fan blade assembly, turn the mounting nut counterclockwise, using a Snap-On 36 Mm Fan Wrench, a Special Tool 6958 Spanner Wrench and Adapter Pins 8346 to secure the pulley in place. Do not take out the viscous fan drive or remove bolts from the fan blade right now. Remove the fan shroud and fan blade/viscous fan drive assembly by taking the four fan shroud-to-radiator mounting bolts. Suggest that the viscous fan drive is not kept flat on its side to protect the lubricant from being contaminated by silicone fluid. Do not take out the Water Pump pulley-to-water pump bolts; leave the spring tension in place. Loosen the bolts on the fan, remembering that you may find the word Reverse printed on the viscous fan drive or the fan in a vehicle with a serpentine Drive Belt. Dust away any dirt from the fan's blades with your hands, followed by a wash in plain water and mild soap. If the fan assembly is changed because of mechanical damage, check both the water pump and the viscous fan drive for signs of being affected by the excessive vibration. After removing the fan blade assembly from the viscous fan drive unit, lay it flat with its leading edge down. When the gap between the blades and the surface is larger than 2.0 mm (0.090 Inch) or when the assembly rocks more than 2.0 mm (0.090 Inch), the fan needs to be changed. Inspect the blades for cracks, bends, loose rivets or damage to welds. If anything is found, change the fan out. During installation, fasten the fan blade assembly to the viscous fan drive, each bolt tightened to 23 Nm (17 Ft. lbs.) torque. Incorporate the entire assembly formed by the fan shroud and fan blade/viscous fan drive into the vehicle and then fit the shroud. Place the fan blade/viscous fan drive on the water pump shaft, put back the fluid reserve/tank for every engine aside from the 8.0L V10 and connect the throttle cable. To finish, connect the battery's negative cable. After putting in the viscous fan drive, run the engine at about 2000 rpm for around two minutes to allow the fluid in the drive to spread evenly.
