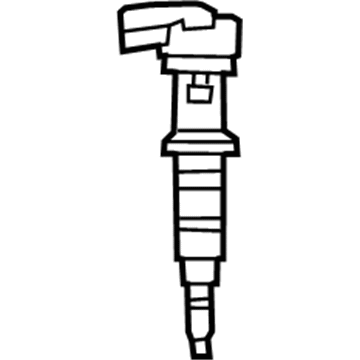

OEM Dodge Viper Camshaft Position Sensor

Dodge Viper Camshaft Position Sensor Parts and Q&A

• Camshaft Position Sensor
  5149054AC
  Q: How Is the Camshaft Position Sensor Installed on Dodge Viper?

  A:

  Apply a little engine oil to the O-ring and use a hand to start the bolt to prevent problems during the installation. Use caution to twist and push the camshaft position sensor deep into the engine block. After that, fit the sensor mounting bolt and tighten it to 10 Nm. Link the electrical connector from the camshaft position sensor. The wiper cowl panel is the next piece to install after the windshield. After that, attach the negative Battery Cable and fasten the nut until it reaches 5 Nm.
• Camshaft Position Sensor
  5245084
  Q: How to Locate and Replace a Camshaft Position Sensor on Dodge Viper?

  A:

  Found on top of the timing chain case, with the Water Pump below and the Throttle Body above, is the camshaft position sensor. First, separate the sensor harness from the connector, draw a line at the depth where the sensor mounts and then loosen the bolt. Gently lift out the sensor from the timing chain cover and get it out of the vehicle with two small screwdrivers. Examine the o-ring of the sensor and coat it with a little engine oil before adding it to the engine. Set the sensor properly to be at its correct depth so that it doesn't come into contact with the camshaft gear when installed in the engine. Turn the rotating cam gear as required to place the high machined area near the sensor mounting hole opening. Set the metal ruler to 1/2 wide and measure from the cam gear to the face of the sensor hole; when the distance is roughly 1-15/32 inches, the sensor can be installed. With a dimension of 1-5/8 inches or more, rotate the engine using the plate bolt socket to get the crankshaft ignition 1-15/32 inch dimension. Replace the sensor inside the timing case/cover by rocking it until it lines up exactly with the scribe dot, with a paper spacer for a used sensor. After that, mount the sensor using the bolt, ensuring it is tightened to 10.7 Nm (95 in. lbs.) torque and connect the needed engine wiring harness.
