Question 1

How to Maintain a Seat Switch on Jeep Liberty?

Accepted Answer

You must first disconnect the negative battery cable before working on the power seat switch. To remove the power seat switch control knobs, push them off with a push pin remover or a wide flat-bladed tool. Then, undo the two forward screws holding the shield to the back of the forward cushion and remove the screw securing the recliner handle. Start by pulling the outboard side shield away from the seat frame to reach the power seat wire harness and its strap, then cut the strap if it is in place. By pushing on the retaining tab and pulling, take out the main power seat wire harness from the power switch receptacle. Take out the two screws holding the power seat switch inside the shield using a very short Phillips-headed screwdriver, then get rid of the switch. Connect the power seat wire harness connector to the power seat switch connector receptacle and place the power seat switch on the outboard side shield with the dowel guide fitted into its corresponding hole. Fix the two power seat switch screws through the inside of the shield and tighten them to 1.5 N.m (14 in.lbs.), finally position the shield on the seat cushion frame and secure it with other two screws tightened to 1.5 N.m (14 in.lbs.). Replace the recliner handle and retaining screw, tighten to 1.5 N.m (14 in.lbs.) and press the power seat switch knob onto the switch control levers until it snaps in. In the end, attach the negative battery cable.

Question 2

How to Perform a Seat Switch Replacement on the Left Power Seat on Jeep Liberty?

Accepted Answer

It is important to disconnect and detach the negative battery cable before handling the left power seat switch. Expertise in using a push pin remover or a suitable flat-bladed tool to carefully lift the power seat switch knob off its duodecape from the control lever. Take out the two screws on the front of the outboard cushion side support that hold it to the seat cushion frame and then remove the recliner handle following its single screw. Pull the shield covering the outboard seat cushion away to gain access to the power seat switch wire and harness, removing any tiestrap you see. Press down the tab at the top of the connector and gently pull it away from the switch connector receptacle to take out the wire harness connector. Open the outboard seat cushion side shield and, by using a small Phillips screwdriver, take the two screws and the switch out. To install, join the power seat wire harness connector to the power seat switch connector receptacle, lay the power seat switch onto the outboard cushion side shield so that the alignment dowel fits into its hole and screw in and tighten both screws to 1.5 Nm (14 in. lbs.). Place the outboard seat cushion side shield over the seat cushion frame and fix it in place using two screws tightened to between 14 and 14.5 in. lbs. Place the reclining handle and backing screw back in the chair, secure everything with 1.5 Nm (14 in. lbs.) of pressure and press the power seat switch knob onto the levers until it clicks in. The last step is to attach the negative battery cable again.

OEM Jeep Liberty Seat Switch

7 Seat Switches found

Jeep Liberty Switch Part Number: 5GW44DX9AC

Jeep Liberty Seat Switch, Driver Side Part Number: 56049429AF

Jeep Liberty Memory Switch, Front Passenger Side Part Number: 4602777AB

Jeep Liberty Seat Switch, Front Driver Side Part Number: 4602791AC

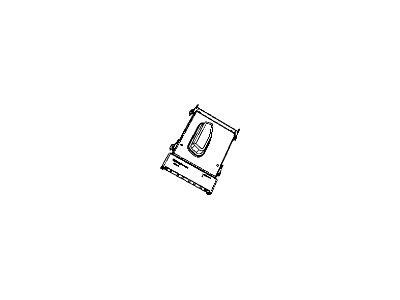

Jeep Liberty Switch Part Number: 4602790AC

Jeep Liberty Seat Switch Part Number: 4602628AC

Jeep Liberty Seat Switch Part Number: 55352782AB

Jeep Liberty Seat Switch
