How to Install a Trailing Arm in the Rear Suspension on 2009 Jeep Compass?

To install the rear suspension trailing link, screw it two bolts at 110Nms. Attach the upper and lower control arms, and the toe link (all at 95 Nm) Install parking brake cable, wheel speed sensor, hub, brake rotor, caliper and brake components, tightening as indicated. Finally the tire is installed and the wheel alignment is performed.

OEM 2009 Jeep Compass Trailing Arm

Trailing Control Arm

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

3 Trailing Arms found

View related parts

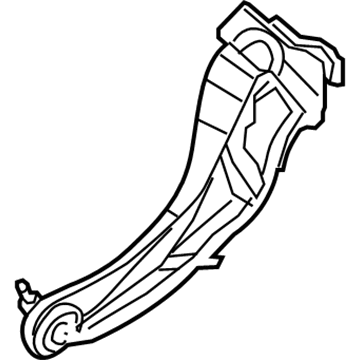

2009 Jeep Compass Trailing Arm, Rear Driver Side Part Number: 5272715AD
$328.57 MSRP: $489.00
You Save: $160.43 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Link - Trailing Arm; Suspension Trailing Arm, Rear Left; Link Trailing Rear Suspension; Link Trailing Arm; Link
- Position: Rear Driver Side
- Replaces: 5272715AA, 5272715AB, 5272715AC
- Item Weight: 13.20 Pounds
- Item Dimensions: 5.5 x 11.4 x 24.9 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 5272715AD
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
More Info
Fits the following 2009 Jeep Compass Submodels:
- 75th Anniversary, Altitude, Base, High Altitude, Latitude, Limited, Sport | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
2009 Jeep Compass Trailing Arm, Rear Passenger Side Part Number: 5105930AB
$328.57 MSRP: $489.00
You Save: $160.43 (33%)
ADD TO CART
Product Specifications
- Other Name: Link - Trailing Arm; Suspension Trailing Arm, Rear Right; Link Trailing Rear Suspension; Link Trailing Arm; Link
- Position: Rear Passenger Side
- Replaces: 5105930AA, 5272714AD, 5272714AB, 5272714AC, 5272714AA
- Item Weight: 13.70 Pounds
- Item Dimensions: 6.7 x 11.2 x 26.3 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 5105930AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
More Info
Fits the following 2009 Jeep Compass Submodels:
- 75th Anniversary, Altitude, Base, High Altitude, Latitude, Limited, Sport | 2.0L L4, 2.4L L4, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
2009 Jeep Compass Trailing Arm, Rear Driver Side Part Number: 5105927AB
$328.57 MSRP: $489.00
You Save: $160.43 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Link - Trailing Arm; Suspension Trailing Arm, Rear Left; Link Trailing Rear Suspension; Link Trailing Arm; Link
- Position: Rear Driver Side
- Replaces: 5105927AA
- Item Weight: 13.50 Pounds
- Item Dimensions: 6.9 x 11.2 x 26.3 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 5105927AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
More Info
Fits the following 2009 Jeep Compass Submodels:
- 75th Anniversary, Altitude, Base, High Altitude, Latitude, Limited, Sport | 2.0L L4, 2.4L L4, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS

2009 Jeep Compass Trailing Arm Parts and Q&A

Q: How to Install a Trailing Arm in the Rear Suspension on 2009 Jeep Compass?
A: To install the rear suspension trailing link, screw it two bolts at 110Nms. Attach the upper and lower control arms, and the toe link (all at 95 Nm) Install parking brake cable, wheel speed sensor, hub, brake rotor, caliper and brake components, tightening as indicated. Finally the tire is installed and the wheel alignment is performed.
