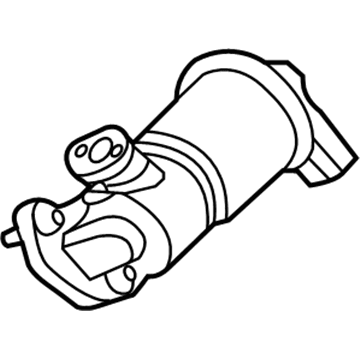

OEM Chrysler Prowler EGR Valve

Chrysler Prowler EGR Valve Parts and Q&A

• EGR Valve
  5145611AA
  Q: How to Effectively Service and Repair an EGR Valve on Chrysler Prowler?

  A:

  The first step to servicing or repairing the EGR valve is to shut off the negative Battery Cable and remove the air intake duct. Following this, remove the clips that mount the EGR Tube onto the intake manifold plenum and afterward take out the plenum. Take the EGR tube off by unscrewing the mounting screws on the EGR valve, after making sure none of the silicone rubber seals fall down the intake manifold. Wash away any debris from the gasket surfaces, as loose bits may result in leaks that lower the engine's idle speed and the air pressure in the manifold. Since the EGR valve is at the rear of the right cylinder head, get rid of the mounting screws and take out the old gasket, if you have to clean the EGR pathways. locally set in place the gasket and EGR valve, only finger tighten the tube with new gaskets and screws. Make sure that the EGR tube screws into the EGR valve securely at a torque of 11 Nm (95 in. lbs.), then add rubber silicone seals to the opening of the EGR tube inside the engine at the intake manifold. Hook up the electrical connector to the solenoid, set the tube from the intake manifold into the valve body ensuring the gaskets are unbroken. Attach the intake plenum back in place, snap the EGR tube clips to the plenum and secure all the screws between the EGR valve and cylinder head to 22 Nm (200 in. lbs.) torque. After that, put back the air intake duct and hook up the negative battery cable.
