OEM Chrysler PT Cruiser Throttle Body

Chrysler PT Cruiser Throttle Body Parts and Q&A

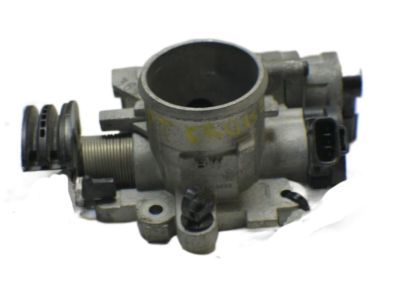

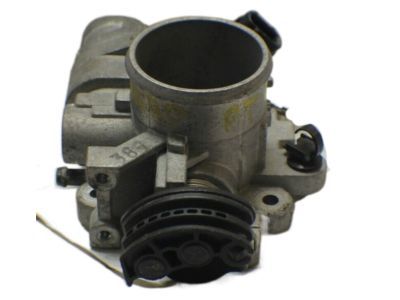

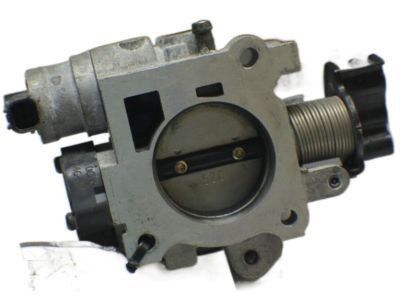

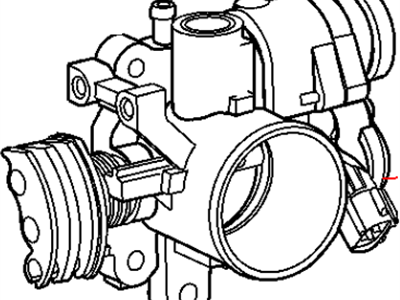

• Throttle Body
  4891513AA
  Q: How to Service and Repair a Throttle Body on Chrysler PT Cruiser?

  A:

  First, take off the air cleaner lid, separate the inlet air temperature sensor and its hose and finally disconnect the negative Battery Cable. Remove the engine cover or throttle control shield if your machine has them. After that, pull the Throttle Cable from the throttle body lever, lift the tabs holding the cable in place and remove it from the bracket. Should speed control be included, take off the speed control cable by sliding it out from the hole in the throttle lever. Pull the EVAP purge hose away from the throttle body nipple and then take off the electrical connectors from the Throttle Position Sensor and idle air control motor. Separate the two screws that hold the cable mounting bracket and support bracket and then the bolts that hold the throttle body. Raise the throttle body straight upward to release it. While installing, fit the electrical connectors onto the idle air control motor and throttle position sensor and be sure to have the throttle body gasket fitted in the manifold. Install the throttle body on the intake and put the mounting bolts in place, but don't tighten them at this moment. Fix the throttle cable bracket into place and do not tighten the bolts just yet. First, tighten the throttle body bolts between 11.75 ± 2.25 Nm (105 ± 20 in. lbs.) and then repeat the same tightening for the throttle cable bracket bolts. Screw the EVAP purge hose onto the throttle body nipple, secure the housing retainer tabs by snapping them into the bracket and turn the throttle lever forward to lengthen the throttle body cables. Put in the throttle control shield, connect the negative battery cable and return the air cleaner lid with the inlet air temperature sensor and makeup air hose.

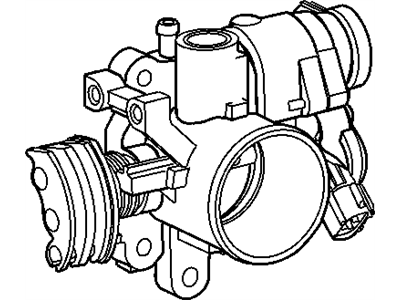

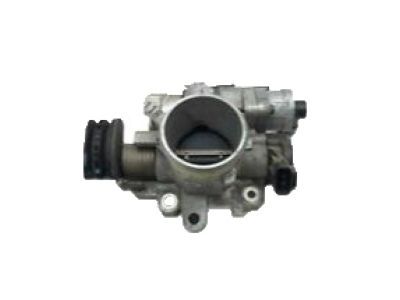

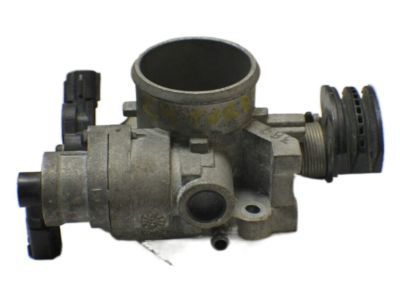

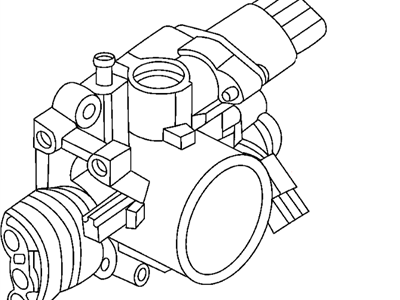

• Throttle Body
  5114402AA
  Q: How to Install a Throttle Body on a 2.4L Engine on Chrysler PT Cruiser?

  A:

  Remove the plastic protector from the manifold. Attach the idle air control motor and the Throttle Position Sensor electrical connectors and place the throttle body in the manifold with the gasket correctly aligned. Then, attach the throttle body to the intake and secure it with the bolts without fastening them tightly at this step. While leaving the bolts of the Throttle Cable bracket loose, install it on the bike. Turn the throttle body bolts to 12 ±2.25 Nm (105 ±20 in. lbs.) first and then tighten the throttle cable bracket bolts to the same level. Take the EVAP purge hose and place it on the throttle body nipple while making sure the cable retainer tabs are fitted into the bracket. Rotate the throttle cam to the wide open position after that, then set up the throttle body cables and attach the throttle control shield as well. After that, attach the negative Battery Cable back and put the air cleaner lid on, attaching the inlet air temperature sensor and the makeup air hose.
