How to Safely Service the Air Duct and Remove the Instrument Panel on Chrysler Sebring?

Make sure you disable the air bag system prior to any work on the air duct by isolating the negative battery cable and ensure you wait at least two minutes after unplugging the negative battery cable, so the capacitor is completely discharged and the accidental air bag can't deploy. Don't damage the front area of the panel while performing this work. Start with removing the instrument panel from the car and placing it on a bench, after that, take off both interior air outlets, the two outer ducts and the top pad. Then, open the demister ducts and remove the three screws connecting the defroster duct to the instrument panel main cover. In the end, move the defroster duct ahead so it comes off the instrument panel top cover and remove the duct.

How to Install and Secure an Air Duct on Chrysler Sebring?

Place the defroster duct onto the instrument cover and fix the duct to the cover. Bolster the duct to the instrument panel top cover by adding three screws and tighten each to 2.2 Nm (20 in. lbs.). After that, add the demister ducts and next put on the instrument panel top pad. Start by fitting the outer instrument panel ducts, then attach the left and right instrument panel air outlets and next, put in the instrument panel.

OEM Chrysler Sebring Air Duct

Air Hose

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

16 Air Ducts found

View related parts
Chrysler Sebring Air Duct, Front Part Number: 4891633AD
$12.03 MSRP: $77.20
You Save: $65.17 (85%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Duct - Fresh Air; Engine Air Intake Hose, Front; Intake Coupling; Duct Fresh Air; Air Intake Hose
- Position: Front
- Replaces: 4891633AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2010 Chrysler Sebring | Base, LX, Limited, Touring | 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS
View related parts
Chrysler Sebring Air Hose Part Number: 4891636AD
$44.89 MSRP: $51.50
You Save: $6.61 (13%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose - Clean Air; Engine Air Intake Hose; Intake Coupling; Hose Clean Air; Air Intake Hose
- Replaces: 4891636AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2010 Chrysler Sebring | Base, LX, Touring | 2.7L V6, 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS
View related parts
Chrysler Sebring Floor Duct, Driver Side Part Number: 5058549AA
$4.02 MSRP: $8.50
You Save: $4.48 (53%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Duct - Floor; HVAC Duct Adapter, Left; Duct Floor Rear
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2010 Chrysler Sebring | Base, LX, Limited, Touring | 4 Cyl 2.4 L GAS, 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS
View related parts
Chrysler Sebring Floor Duct, Passenger Side Part Number: 5058548AA
$4.02 MSRP: $8.50
You Save: $4.48 (53%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Duct - Floor; HVAC Duct Adapter, Right; Duct Floor Rear
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2010 Chrysler Sebring | Base, LX, Limited, Touring | 4 Cyl 2.4 L GAS, 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS
View related parts

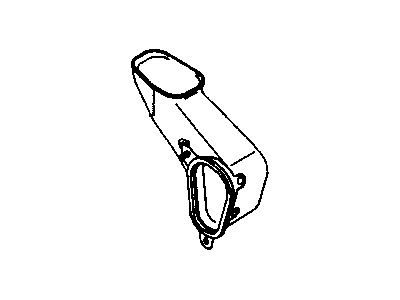

Chrysler Sebring Air Duct Part Number: MB925160
$10.94 MSRP: $13.87
You Save: $2.93 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Duct Fresh Air; Duct, Air Cleaner, Intake
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1995-2000 Chrysler Sebring | LX, LXi | 4 Cyl 2.0 L GAS, 6 Cyl 2.5 L GAS
View related parts
Chrysler Sebring Intake Duct, Front Part Number: 4591461AA
$47.60 MSRP: $60.35
You Save: $12.75 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Duct - Fresh Air; Engine Air Intake Hose, Front; Intake Coupling; Front Duct; Duct Fresh Air; Air Intake Hose
- Position: Front
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2006 Chrysler Sebring | Base, GTC, LX, LXi, Limited, Touring | 4 Cyl 2.4 L GAS, 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS
View related parts
Chrysler Sebring Air Duct, Front Part Number: 4891632AD
$82.12 MSRP: $105.00
You Save: $22.88 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Duct - Fresh Air; Engine Air Intake Hose, Front; Intake Coupling; Duct Fresh Air; Air Intake Hose
- Position: Front
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2010 Chrysler Sebring | Base, LX, Limited, Touring | 4 Cyl 2.4 L GAS
View related parts
Chrysler Sebring Air Inlet Duct Part Number: MR323263
Product Specifications
- Other Name: Hose - Air Cleaner; Engine Air Intake Hose; Air Inlet Tube; Duct Air Cleaner
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2005 Chrysler Sebring | Base, LX | 4 Cyl 2.4 L GAS
View related parts
Chrysler Sebring Hose & Tube Assembly, Front Part Number: 5017002AA
Product Specifications
- Other Name: Hose - Air Cleaner; Engine Air Intake Hose, Front; Intake Coupling; Hose; Hose Air Cleaner; Air Intake Hose
- Position: Front
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2006 Chrysler Sebring | Base, GTC, LX, LXi, Limited, TSi, Touring | 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS, 6 Cyl 3.0 L GAS
View related parts
Chrysler Sebring Hose & Tube Assembly, Front Part Number: 5017000AA
Product Specifications
- Other Name: Hose - Air Cleaner; Engine Air Intake Hose, Front; Intake Coupling; Hose; Hose Air Cleaner; Air Intake Hose
- Position: Front
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2006 Chrysler Sebring | Base, GTC, LX, LXi, Limited, Touring | 4 Cyl 2.4 L GAS, 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS
View related parts
Chrysler Sebring Air Inlet Duct, Front Part Number: MR355479
Product Specifications
- Other Name: Duct - Fresh Air Intake; Engine Air Intake Hose, Front; Intake Coupling; Air Outlet Duct; Duct Fresh Air Intake; Air Intake Hose
- Position: Front
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2005 Chrysler Sebring | LX, LXi, Limited | 6 Cyl 3.0 L GAS
View related parts
Chrysler Sebring Air Inlet Duct, Front Part Number: MR355476
Product Specifications
- Other Name: Duct - Fresh Air Intake; Engine Air Intake Hose, Front; Intake Coupling; Air Outlet Duct; Duct Fresh Air Intake; Air Intake Hose
- Position: Front
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2005 Chrysler Sebring | Base, LX | 4 Cyl 2.4 L GAS
View related parts
Chrysler Sebring Air Inlet Duct Part Number: MR323265
Product Specifications
- Other Name: Hose - Air Cleaner; Engine Air Intake Hose; Intake Coupling; Air Inlet Tube; Duct Air Cleaner; Air Intake Hose
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2005 Chrysler Sebring | LX, LXi, Limited | 6 Cyl 3.0 L GAS
View related parts
Chrysler Sebring Air Duct Part Number: MB925152
Product Specifications
- Other Name: Hose Air Cleaner; Air Intake Hose; Intake Coupling; Duct, Air Cleaner To Throttle Body; Duct Air Cleaner
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1995-2000 Chrysler Sebring | LX, LXi | 6 Cyl 2.5 L GAS
View related parts
Chrysler Sebring Hose & Tube Assembly Part Number: 4663327
Product Specifications
- Other Name: Hose - Air Cleaner To Throttle Body; Air Intake Hose; Intake Coupling; Hose; Hose Assembly, Air Cleaner To Throttle Body, 2.5L Engine; Hose Air Cleaner To Throttle Body
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1996-2000 Chrysler Sebring | JX, JXi | 6 Cyl 2.5 L GAS
View related parts
Chrysler Sebring Air Hose Part Number: 4891825AB
Product Specifications
- Other Name: Hose - Clean Air; Engine Air Intake Hose; Intake Coupling; Hose Clean Air; Air Intake Hose
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2010 Chrysler Sebring | LX, Limited, Touring | 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS

Chrysler Sebring Air Duct

Choose OEM Air Duct that meet Chrysler factory standards. Chrysler designs and tests every component for precision and durability. Each Air Duct follows strict manufacturing steps to lock in quality and fit. If your Chrysler Sebring matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Sebring parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

Chrysler Sebring Air Duct Parts and Q&A

Air Hose
4891636AD
Q: How to Safely Service the Air Duct and Remove the Instrument Panel on Chrysler Sebring?
A:
Make sure you disable the air bag system prior to any work on the air duct by isolating the negative Battery Cable and ensure you wait at least two minutes after unplugging the negative battery cable, so the capacitor is completely discharged and the accidental air bag can't deploy. Don't damage the front area of the panel while performing this work. Start with removing the instrument panel from the car and placing it on a bench, after that, take off both interior air outlets, the two outer ducts and the top pad. Then, open the demister ducts and remove the three screws connecting the defroster duct to the instrument panel main cover. In the end, move the defroster duct ahead so it comes off the instrument panel top cover and remove the duct.
Air Duct, Front
4891633AD
Q: How to Install and Secure an Air Duct on Chrysler Sebring?
A:
Place the defroster duct onto the instrument cover and fix the duct to the cover. Bolster the duct to the instrument panel top cover by adding three screws and tighten each to 2.2 Nm (20 in. lbs.). After that, add the demister ducts and next put on the instrument panel top pad. Start by fitting the outer instrument panel ducts, then attach the left and right instrument panel air outlets and next, put in the instrument panel.
