How to Remove the ABS Control Module's Hydraulic Control Unit (HCU) on Dodge Caliber?

First, the Integrated Control Unit (ICU) has to be taken out and dismantled according to the instructions for the Overhaul/Integrated Control Unit (ICU) - Disassembly.

How to Install the ABS Control Module for a Gas Engine on Dodge Caliber?

The ICU must be placed again, using the original bracket 1, through the gap between the air conditioner lines and the exhaust manifold and installed in the same way it was taken out. Put the ICU mounting bracket over screws 2 and secure it using the screwdriver to 23 Nm (17 ft. lbs.). Lock and install the seal properly on the ABM harness connector before you insert the ABM wiring harness connector into the socket. Add the four chassis brake tubes to the ICU hydraulic control unit and tighten the tube nuts to 17 Nm (150 in. lbs.). Then put the primary and secondary brake tubes on the unit and tighten their tube nuts to 17 Nm (150 in. lbs.). Loosen the connecting screw on the carburetor, lace its spark plug wire up through the gap in the power steering pressure hose and then tighten the clamp on the exhaust manifold to 9 Nm (80 in. lbs.). Place the brake tube bundle routing clips onto the studs on the dash panel, add the heat shield there and then tighten the lower and upper mounting nuts. Take off the brake pedal holding tool, add the engine cover and reconnect the battery negative cable to its post. After that, join the scan tool to kick off the ABM process, fix any stored faults, ensure the master cylinder is topped off with the correct amount, bleed both base and ABS hydraulic systems, check for leaks and handle an ABS Verification Test.

OEM Dodge Caliber ABS Control Module

Anti Lock Brake Control Module

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

19 ABS Control Modules found

View related parts
Dodge Caliber Modulator Valve Part Number: 68067060AA
$896.63 MSRP: $1350.00
You Save: $453.37 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control - Anti-Lock Brake System; ABS Control Module; ABS Control Unit; Modulator; Hydraulic Control Unit Anti-Lock Brake System
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2010-2012 Dodge Caliber | Express, Heat, Mainstreet, R/T, Rush, SE, SXT, SXT Plus, Uptown | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Dodge Caliber Modulator Valve Part Number: 5179854AA
$916.03 MSRP: $1305.00
You Save: $388.97 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Master Cylinder - Anti-Lock Brake System; ABS Modulator Valve; ABS Control Module; Modulator; Hydraulic Control Unit Anti-Lock Brake System
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2010 Dodge Caliber | Express, Heat, Mainstreet, R/T, Rush, SE, SRT-4, SXT, Uptown | 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Dodge Caliber Control Module Part Number: 5179865AA
$397.63 MSRP: $720.00
You Save: $322.37 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Master Cylinder - Anti-Lock Brake System; ABS Control Module; Modulator Valve; ABS Control Unit
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007 Dodge Caliber | R/T, SE, SXT | 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Dodge Caliber Control Module Part Number: 68044938AB
Product Specifications
- Other Name: Module - Anti-Lock Brake System; ABS Control Module; Modulator Valve; Module Anti-Lock Brake System
- Replaces: 68038072AA, 68044938AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2008-2009 Dodge Caliber | R/T, SE, SRT-4, SXT | 1.8L L4, 2.0L L4, 2.4L L4, 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Dodge Caliber Control Module Part Number: 68021920AC
Product Specifications
- Other Name: Module - Anti-Lock Brake System; ABS Control Module; Modulator Valve; ABS Control Unit
- Replaces: 68021920AB, 68021920AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2009 Dodge Caliber | R/T, SE, SRT-4, SXT | 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Dodge Caliber Modulator Valve Part Number: 5179862AA
Product Specifications
- Other Name: Master Cylinder - Anti-Lock Brake System; ABS Control Module; ABS Control Unit; Hydraulic Control Unit Anti-Lock Brake System
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007 Dodge Caliber | R/T, SE, SXT | 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts

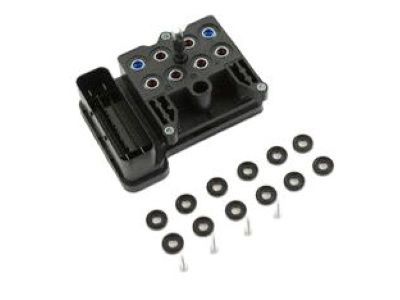

Dodge Caliber Control Module Part Number: 68038074AA
Product Specifications
- Other Name: Module - Anti-Lock Brake System; ABS Control Module; Sensor Dynamics Lateral Acceleration And Yaw Rate; Module Anti-Lock Brake System
- Replaces: 68044219AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2008-2012 Dodge Caliber | Express, Heat, Mainstreet, R/T, Rush, SE, SRT-4, SXT, Uptown | 1.8L L4, 2.0L L4, 2.4L L4, 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts

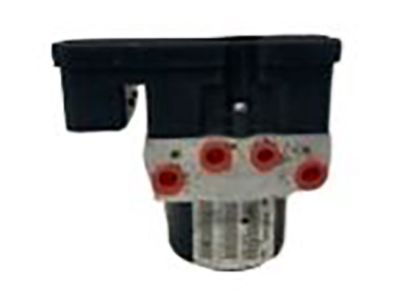

Dodge Caliber Control Module Part Number: 68031385AD
Product Specifications
- Other Name: Module - Anti-Lock Brake System; ABS Control Module
- Replaces: 68031385AA, 68031385AC, 68031385AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2008-2009 Dodge Caliber | R/T, SE, SRT-4, SXT | 1.8L L4, 2.0L L4, 2.4L L4, 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Dodge Caliber Control Module Part Number: 68067059AB
Product Specifications
- Other Name: Module - Anti-Lock Brake System; ABS Control Module; Module Anti-Lock Brake System
- Replaces: 68067059AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2010-2012 Dodge Caliber | Express, Heat, Mainstreet, R/T, Rush, SE, SXT, Uptown | 1.8L L4, 2.0L L4, 2.4L L4, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Dodge Caliber Control Module Part Number: 68089568AC
Product Specifications
- Other Name: Module - Anti-Lock Brake System; ABS Control Module; Module Anti-Lock Brake System
- Replaces: 68089568AA, 68067063AA, 68067063AC, 68089568AB, 68067063AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2010-2012 Dodge Caliber | Express, Heat, Mainstreet, R/T, Rush, SE, SXT, SXT Plus, Uptown | 1.8L L4, 2.0L L4, 2.4L L4, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Dodge Caliber Control Module Part Number: 68089567AC
Product Specifications
- Other Name: Module - Anti-Lock Brake System; ABS Control Module; Module Anti-Lock Brake System
- Replaces: 68089567AA, 68089567AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2011-2012 Dodge Caliber | Express, Heat, Mainstreet, Rush, SE, SXT, SXT Plus, Uptown | 2.0L L4, 2.4L L4, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Dodge Caliber Modulator Valve Part Number: 68038073AA
Product Specifications
- Other Name: Master Cylinder - Anti-Lock Brake System; ABS Control Module; ABS Control Unit; Hydraulic Control Unit Anti-Lock Brake System; Control Unit Anti-Lock Brake
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2008-2009 Dodge Caliber | R/T, SE, SRT-4, SXT | 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts

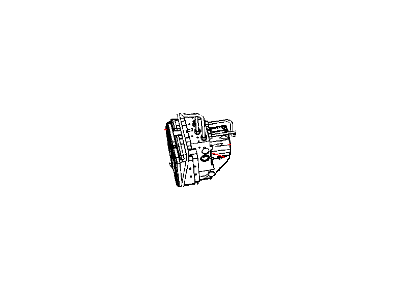

Dodge Caliber Control Module Part Number: 5179857AA
Product Specifications
- Other Name: Master Cylinder - Anti-Lock Brake System; ABS Control Module
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007 Dodge Caliber | R/T, SE, SXT | 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Dodge Caliber Control Module Part Number: 5179856AA
Product Specifications
- Other Name: Module - Anti-Lock Brake System; ABS Control Module; Module Anti-Lock Brake System
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007 Dodge Caliber | R/T, SE, SXT | 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Dodge Caliber Control Module Part Number: 68038075AB
Product Specifications
- Other Name: Module - Anti-Lock Brake System; ABS Control Module; Module Anti-Lock Brake System
- Replaces: 68038075AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2008 Dodge Caliber | R/T, SE, SRT-4, SXT | 2.4L L4, 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Dodge Caliber Control Module Part Number: 5179860AC
Product Specifications
- Other Name: Module - Anti-Lock Brake System; ABS Control Module; Module Anti-Lock Brake System
- Replaces: 5179860AB, 5179860AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007 Dodge Caliber | R/T, SE, SXT | 2.4L L4, 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts

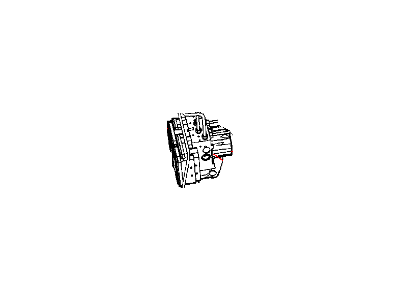

Dodge Caliber Control Module Part Number: 68060259AA
Product Specifications
- Other Name: Module - Anti-Lock Brake System; ABS Control Module
- Replaces: 68044937AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2009 Dodge Caliber | R/T, SE, SRT-4, SXT | 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Dodge Caliber Control Module Part Number: 68028343AA
Product Specifications
- Other Name: Module - Anti-Lock Brake System; ABS Control Module; Modulator Valve; ABS Control Unit; Hydraulic Control Unit for Anti-Lock Brake System.
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2008-2009 Dodge Caliber | R/T, SE, SRT-4, SXT | 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Dodge Caliber Modulator Valve Part Number: 68067065AA
Product Specifications
- Other Name: Control - Anti-Lock Brake System; ABS Control Module; ABS Control Unit; Modulator; Hydraulic Control Unit Anti-Lock Brake System
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2011-2012 Dodge Caliber | Express, Heat, Mainstreet, Rush, SE, SXT, SXT Plus, Uptown | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS

Dodge Caliber ABS Control Module

Choose OEM ABS Control Module that meet Dodge factory standards. Dodge designs and tests every component for precision and durability. Each ABS Control Module follows strict manufacturing steps to lock in quality and fit. If your Dodge Caliber matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Caliber parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

Dodge Caliber ABS Control Module is one of the most relevant parts in the Dodge Caliber cars that help to increase safety during operation and optimal performance. Famous for its efficiency, this ABS Control Module eliminates the lock-up situation of wheels during concentrated braking and grants the drivers decent traction on the roads. Together with the ABS modulator, the module consists of wheels speed sensors, valves, pump and controller to automatically change the pressure of the brake according to the necessity sensed by the sensor. This functionality is very essential for combating skidding and general stability of the car. The Dodge Caliber was manufactured between 2007 and 2012, and the models supported the modifications include SE and SXT; Installing the ABS control module is a great solution for persons who own a Dodge Caliber and would wish to have better features of safety. Moreover, a lot of today's ABS systems, also fitted in Dodge Caliber, are equipped with a function of electronic stability control and traction control, which adds to the safety level. The Dodge Caliber ABS Control Module can be defined as unique in the context of the automotive market in view of the fact that it is built and performs with serious, high-calibre specifications while at the same time contributing to the successfully high results posted by the vehicle in the crash tests conducted by the Insurance Institute for Highway Safety. By way of integrating hi-tech features and sound performance history, the Dodge Caliber ABS Control Module is a pivotal piece in helping the Dodge Caliber stay a secure and effective ride.

Dodge Caliber ABS Control Module Parts and Q&A

Modulator Valve
68067060AA
Q: How to Remove the ABS Control Module's Hydraulic Control Unit (HCU) on Dodge Caliber?
A:
First, the Integrated Control Unit (ICU) has to be taken out and dismantled according to the instructions for the Overhaul/Integrated Control Unit (ICU) - Disassembly.
Modulator Valve
5179854AA
Q: How to Install the ABS Control Module for a Gas Engine on Dodge Caliber?
A:
The ICU must be placed again, using the original bracket 1, through the gap between the air conditioner lines and the Exhaust Manifold and installed in the same way it was taken out. Put the ICU mounting bracket over screws 2 and secure it using the screwdriver to 23 Nm (17 ft. lbs.). Lock and install the seal properly on the ABM harness connector before you insert the ABM wiring harness connector into the socket. Add the four chassis brake tubes to the ICU hydraulic control unit and tighten the tube nuts to 17 Nm (150 in. lbs.). Then put the primary and secondary brake tubes on the unit and tighten their tube nuts to 17 Nm (150 in. lbs.). Loosen the connecting screw on the carburetor, lace its spark plug wire up through the gap in the power steering pressure hose and then tighten the clamp on the exhaust manifold to 9 Nm (80 in. lbs.). Place the brake tube bundle routing clips onto the studs on the dash panel, add the heat shield there and then tighten the lower and upper mounting nuts. Take off the brake pedal holding tool, add the engine cover and reconnect the battery negative cable to its post. After that, join the scan tool to kick off the ABM process, fix any stored faults, ensure the master cylinder is topped off with the correct amount, bleed both base and ABS hydraulic systems, check for leaks and handle an ABS Verification Test.
