How to Install a Tie Rod End on Dodge Caliber?

The first step for installing the outer tie rod end is to put the jam nut on the inner tie rod threads if it is off. As before, install the outer tie rod onto the inner tie rod with nearly the same revolutions. Following that, thread the inner tie rod down as far as it will fit without locking the outer tie rod. Fit the connection post into the hole in the knuckle arm, thread on a tie rod mounting nut and keep the lock nut inside the knuckle arm until later. Tighten the nut to 132 Nm (97 ft. lbs.) when you are holding the tie rod end stud together with a wrench. After that, put in the tire and wheel assembly and fasten the wheel mounting nuts to 135 Nm (100 ft. lbs.). Park the vehicle in neutral and twist the front wheel toe nut until the alignment is correct. After the wheels are toed, tighten the tie rod jam nut to 75 Nm (55 ft. lbs.).

OEM Dodge Caliber Tie Rod End

Steering Rod End

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

1 Tie Rod End found

View related parts

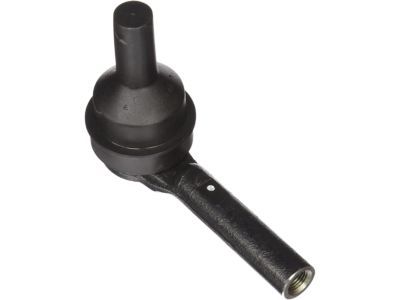

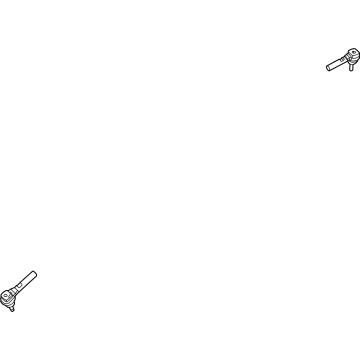

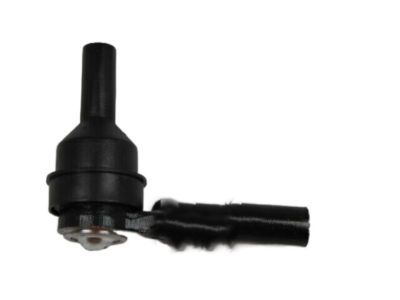

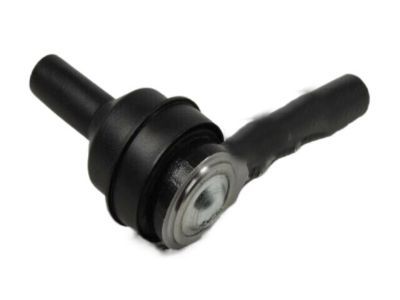

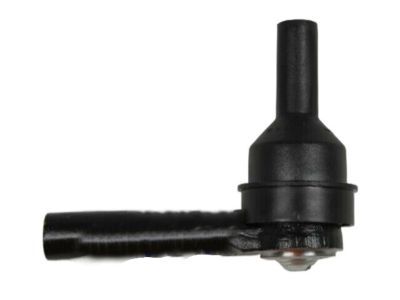

Dodge Caliber Outer Tie Rod Part Number: 5183761AD
$67.98 MSRP: $100.00
You Save: $32.02 (33%)
ADD TO CART
Product Specifications
- Other Name: Tie Rod - Outer; Steering Tie Rod End, Outer; Drag Link Repair Kit; Outer Tie Rod End; Tie Rod End Outer; Tie Rod End
- Position: Outer
- Replaces: 5183761AC, 5183761AB, 68014944AA, 5183761AA, 68141058AA, 5103320AB, 5103320AA, 68033477AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2012 Dodge Caliber | Express, Heat, Mainstreet, R/T, Rush, SE, SRT-4, SXT, SXT Plus, Uptown | 1.8L L4, 2.0L L4, 2.4L L4, 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS

Dodge Caliber Tie Rod End

Choose OEM Tie Rod End that meet Dodge factory standards. Dodge designs and tests every component for precision and durability. Each Tie Rod End follows strict manufacturing steps to lock in quality and fit. If your Dodge Caliber matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Caliber parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

The Tie Rod End is a piece that has a very important role in increasing the Dodge Caliber vehicles' dependability and stability. Locally connected between the steering rack and the steering knuckles, the Tie Rod End plays an important part in providing stability and accurate control of the car's direction which is vital in any transport activity. This particular component of the Dodge Caliber includes the inner and outer tie rod ends and basically the entire system's responsibility is to enable efficient and fluent steering maneuvers. Available, for instance, in the SE and the SXT models of Dodge Caliber, Tie Rod End is developed with a precise regard to address the requirements of every model for the most efficient outcome. The Dodge Caliber is recognized to be very safe; in fact, the Insurance Institute for Highway Safety has given it a very favorable rating after performing crash tests; the Tie Rod End enables the car to give a responsive handling. Statically speaking, the Tie Rod End is designed to endure the test of time: the material quality of this automotive part is only second to none. Combined with its effect of raising performance and safety of Dodge Caliber, the Tie Rod End is a must-have for every driver, who owns the car, so they will have a comfortable and effective ride.

Dodge Caliber Tie Rod End Parts and Q&A

Outer Tie Rod
5183761AD
Q:
How to Install a Tie Rod End on Dodge Caliber?
A:
The first step for installing the outer tie rod end is to put the jam nut on the inner tie rod threads if it is off. As before, install the outer tie rod onto the inner tie rod with nearly the same revolutions. Following that, thread the inner tie rod down as far as it will fit without locking the outer tie rod. Fit the connection post into the hole in the knuckle arm, thread on a tie rod mounting nut and keep the lock nut inside the knuckle arm until later. Tighten the nut to 132 Nm (97 ft. lbs.) when you are holding the tie rod end stud together with a wrench. After that, put in the tire and wheel assembly and fasten the wheel mounting nuts to 135 Nm (100 ft. lbs.). Park the vehicle in neutral and twist the front wheel toe nut until the alignment is correct. After the wheels are toed, tighten the tie rod jam nut to 75 Nm (55 ft. lbs.).
