How to Prepare and Install an A/C Condenser to Ensure Compressor Reliability on Dodge Caravan?

Remove all the refrigerant from the system before beginning the operation because moisture in the components may cause the compressor to fail. You should start by collecting the component for your A/C into a recovery bin. Soak the liquid line at the filter-drier and then take out the bolts holding the filter-drier to the radiator module. Then, get rid of the upper radiator crossmember and pull the radiator back and up. Remove the upper discharge line from the condenser next and then remove the lower liquid line through the filter-drier from the fascia. Loosen the condenser's upper and lower bolts and take it from the vehicle. As you install the Cooling Module, carefully evaluate the seals and make sure they are able to be installed again. Change all your O-rings and gaskets, use approved non-waxed refrigerant oil on all sealing surfaces and follow the steps for putting the car back together. Turn the torque on the liquid line at the filter/drier to 45 in. lbs. ± 10, the upper discharge line at the condenser to 180 in. lbs. ± 20, the lower liquid line to the condenser also to 180 in. lbs. ± 20, the lower condenser mounting bolts to 45 in. lbs. ± 10, the upper condenser mounting bolts to 45 in. lbs. ± 10 and the turbo 5. After that, perform a system evacuation and charging.

How to Remove the A/C Condenser from 2.4L, 3.3L, or 3.8L Engines on Dodge Caravan?

To take the A/C condenser out of a 2.4L, 3.3L or 3.8L engine, read all the cautions carefully first to protect yourself. First, locate the position of the air seals around the radiator and condenser, because they are necessary for proper A/C condenser and radiator airflow and you need to fit them correctly. Go ahead by collecting the refrigerant from the system, then take out the front fascia. Detaching the quick-connect fittings from the transmission oil cooler tapping block when removing the transmission oil cooler lines from the cooler is not essential. Afterward, remove the transmission oil cooler lines from the left-side quick-connect fittings on the A/C condenser and also unplug the A/C discharge line and the A/C liquid line from the right side of the condenser. After that, cover the open fittings on the discharge and liquid line, as well as the ports on the condenser, with plugs or tape. Open each retaining clip that holds the upper A/C condenser brackets to the radiator, then lift the entire condensers up so it comes loose from the lower brackets and can be removed from above the engine.

OEM Dodge Caravan A/C Condenser

Air Conditioning Condenser

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

10 A/C Condensers found

View related parts
Dodge Caravan Condenser Part Number: 4809195AB
$50.23 MSRP: $319.00
You Save: $268.77 (85%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: A/C; A/C Condenser
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2000 Dodge Caravan | Base, SE, Sport | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS
View related parts
Dodge Caravan Condenser Part Number: 5012969AA
$36.46 MSRP: $210.00
You Save: $173.54 (83%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Condenser - A/C
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1993-1995 Dodge Caravan | Base, C/V, ES, LE, SE | 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L GAS
View related parts

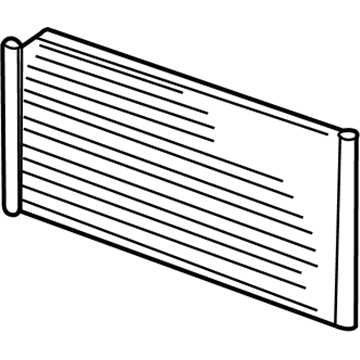

Dodge Caravan Condenser Part Number: 4809227AG
$192.82 MSRP: $318.00
You Save: $125.18 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Condenser - A/C; A/C Condenser; Condenser A/C
- Replaces: 4809227AD
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2004 Dodge Caravan | Base, C/V, Ec, SE, SXT, Sport | 2.4L L4, 3.3L V6, 4 Cyl 2.4 L GAS, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS
View related parts
Dodge Caravan Condenser Part Number: 68059739AB
$296.14 MSRP: $448.00
You Save: $151.86 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cooler - Condenser And Transmission Cooler; A/C Condenser; Automatic Transmission Oil Cooler Assembly; Condenser A/C
- Replaces: 4677509AA, 4677509AC, 4677509AB, 68059739AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2005-2007 Dodge Caravan | Base, C/V, SE, SXT | 2.4L L4, 3.3L V6, 4 Cyl 2.4 L GAS, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS
View related parts

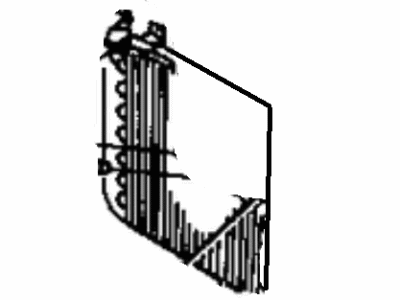

Dodge Caravan Condenser Part Number: 4462258
$115.57 MSRP: $172.00
You Save: $56.43 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Condenser - Assembly - A/C (Complete); A/C Condenser; Condenser, Complete W/O Rear Heater; Condenser, Complete Up To 11-2-87; Condenser, Up To 11-2-87
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1984-1988 Dodge Caravan | Base, LE, SE | 4 Cyl 2.2 L GAS, 4 Cyl 2.5 L GAS, 4 Cyl 2.6 L GAS, 6 Cyl 3.0 L GAS
View related parts
Dodge Caravan Condenser Part Number: 4682590
Product Specifications
- Other Name: Condenser - A/C; A/C Condenser; Condenser A/C, 25 Pc Min Qty, Mixture And Match Pallet Program, Order at Mopar.Com.
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1996-1999 Dodge Caravan | Base, ES, LE, SE, Sport | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS, 6 Cyl 3.8 L GAS
View related parts
Dodge Caravan Condenser Part Number: 5012649AA
Product Specifications
- Other Name: Condenser - A/C
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1990-1992 Dodge Caravan | Base, C/V, ES, LE, SE | 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L GAS
View related parts
Dodge Caravan Condenser Part Number: 4682591AC
Product Specifications
- Other Name: Condenser - A/C; A/C Condenser
- Replaces: 4682591
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1996-1999 Dodge Caravan | Base, ES, LE, SE, Sport | 2.4L L4, 3.0L V6, 3.3L V6, 3.8L V6, 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS, 6 Cyl 3.8 L GAS, Electric Motor
View related parts
Dodge Caravan Condenser Part Number: 5012647AA
Product Specifications
- Other Name: Condenser - A/C; A/C Condenser
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1989 Dodge Caravan | Base, C/V, LE, SE | 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L GAS
View related parts

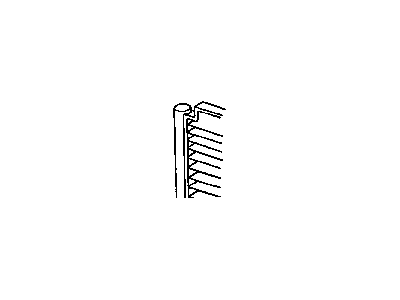

Dodge Caravan Condenser Part Number: 5016793AC
Product Specifications
- Other Name: Condenser - A/C; A/C Condenser
- Replaces: 5016793AA, 4809129AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1996-2000 Dodge Caravan | Base, ES, LE, SE, Sport | 2.4L L4, 3.0L V6, 3.3L V6, 3.8L V6, 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS, 6 Cyl 3.8 L GAS, BATTERY EV (EV/BEV)

Dodge Caravan A/C Condenser

Choose OEM A/C Condenser that meet Dodge factory standards. Dodge designs and tests every component for precision and durability. Each A/C Condenser follows strict manufacturing steps to lock in quality and fit. If your Dodge Caravan matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Caravan parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

The electrical component that affects the proper working of the air condition system in Dodge Caravan vehicles is called the A/C Condenser. Through a certain mode, A/C Condenser makes it possible to cool the refrigerant gas and hence, produce cool air that is required in circulating within the car cabin. Innovations in Dodge Caravan models in relation to A/C Condenser have enhanced over the years as new development is made in the market to improve more on performance and durability. Hence in cases such as ignition failure that are typical in cars, the A/C Condenser is still an important factor for comfort and efficiency of Dodge Caravan cars for suburban families.

Dodge Caravan A/C Condenser Parts and Q&A

Condenser
4809195AB
Q: How to Prepare and Install an A/C Condenser to Ensure Compressor Reliability on Dodge Caravan?
A:
Remove all the refrigerant from the system before beginning the operation because moisture in the components may cause the compressor to fail. You should start by collecting the component for your A/C into a recovery bin. Soak the liquid line at the filter-drier and then take out the bolts holding the filter-drier to the radiator module. Then, get rid of the upper radiator crossmember and pull the radiator back and up. Remove the upper discharge line from the condenser next and then remove the lower liquid line through the filter-drier from the fascia. Loosen the condenser's upper and lower bolts and take it from the vehicle. As you install the Cooling Module, carefully evaluate the seals and make sure they are able to be installed again. Change all your O-rings and gaskets, use approved non-waxed refrigerant oil on all sealing surfaces and follow the steps for putting the car back together. Turn the torque on the liquid line at the filter/drier to 45 in. lbs. ± 10, the upper discharge line at the condenser to 180 in. lbs. ± 20, the lower liquid line to the condenser also to 180 in. lbs. ± 20, the lower condenser mounting bolts to 45 in. lbs. ± 10, the upper condenser mounting bolts to 45 in. lbs. ± 10 and the turbo 5. After that, perform a system evacuation and charging.
Condenser
68059739AB
Q: How to Remove the A/C Condenser from 2.4L, 3.3L, or 3.8L Engines on Dodge Caravan?
A:
To take the A/C condenser out of a 2.4L, 3.3L or 3.8L engine, read all the cautions carefully first to protect yourself. First, locate the position of the air seals around the radiator and condenser, because they are necessary for proper A/C condenser and radiator airflow and you need to fit them correctly. Go ahead by collecting the refrigerant from the system, then take out the front fascia. Detaching the quick-connect fittings from the transmission oil cooler tapping block when removing the transmission oil cooler lines from the cooler is not essential. Afterward, remove the transmission oil cooler lines from the left-side quick-connect fittings on the A/C condenser and also unplug the A/C discharge line and the A/C liquid line from the right side of the condenser. After that, cover the open fittings on the discharge and liquid line, as well as the ports on the condenser, with plugs or tape. Open each retaining clip that holds the upper A/C condenser brackets to the radiator, then lift the entire condensers up so it comes loose from the lower brackets and can be removed from above the engine.
