OEM Dodge Intrepid Throttle Body

Dodge Intrepid Throttle Body Parts and Q&A

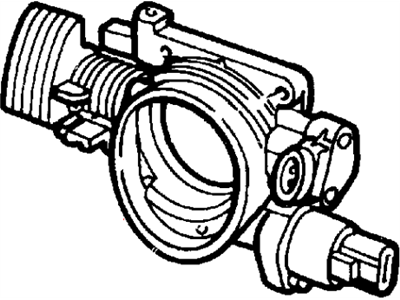

• Throttle Body
  4591596AC
  Q: How to Maintain and Fix a Throttle Body on Dodge Intrepid?

  A:

  First, you should take off the battery's negative cable and then clean out the air plenum that is attached to the throttle body. Throttle the motor with the lever fully open and loosen both the Throttle Cable and speed control cables from the throttle arm, also removing the cable bracket. Liberate the electrical connectors from the throttle body, take out the bottom bracket and loosen and remove the three bolts from the throttle body before it comes out. While installing, first make sure the mating surfaces are cleaned. After positioning, set the bolts to secure the throttle body to 11.9 Nm (105 in. lbs. ) torque. Fix the throttle body support bracket to the throttle body, underneath and tighten its bolts to a torque of 27.1 Nm (20 ft. lbs.), using the torque wrench. When the throttle lever is full open throttle, install the throttle and speed control cables and then attach the throttle cable bracket with the tightened bolts. Afterward, fit the air box back in place, clamp it securely and reconnect the negative cable to the battery.
• Throttle Body
  4591595AC
  Q: How to Service and Repair a Throttle Body on Dodge Intrepid?

  A:

  Before servicing the throttle body, take off the negative terminal from the battery and take out the air plenum from the throttle body. Hold the throttle lever so it is completely open and then take out the throttle, speed control and Throttle Cable bracket cables from the arm. Step one, take off all the electrical cables from the throttle body. Then, get rid of the throttle body support bracket at the back. After that, remove the three bolts from the throttle body and take it out, be sure to clean the surfaces where it touched. Set the throttle body in place and firm it with the bolts, torquing each one to 11.9 N.m (105 in.lbs.) after positioning. Bolt the throttle body support bracket to the throat of the throttle and use a 27.1 N.m (20 ft.lbs.) torque wrench. After setting the throttle lever to the full-open position, join all cables and reconnect the bracket for the throttle, until the bolts are all tight. Next, attach the air plenum, tighten the clamp and lastly fasten the negative wire to the battery.
