How to Remove and Replace a Front Brake Disc on Dodge Journey?

To do this job, first pack up on a lift or a jack. Next step, take out the nuts holding the wheel mount and take off the wheel and tire as an assembly. At times, pulling the inboard side a bit will create enough space for the caliper to be taken off the knuckle without directly applying pressure to the piston. After that, remove the bolts holding the disc brake caliper and the adapter bracket to the steering knuckle. With both the caliper and adapter bracket still secured as an assembly, take them off the rotor and knuckle. Hang them out of the way on wire or with a bungee cord so the brake hose is not stretched too far. Pull out any fasteners on the brake rotor that keep it from moving along the wheel mounting stud and finally slide off the brake rotor from the hub.

How to Remove and Replace a Rear Brake Disc on Dodge Journey?

Look at the brake pads behind the disc brake before removing and replacing the rotor. Carefully remove any dirt or corrosion from the rotor's mounting face on your hub and bearing. Put the brake rotor over the hub and bearing. The rear caliper piston should be seated when changing the brake rotor or pads. To prevent harming the self-adjuster, use the only recommended method and rotate the piston with Retractor, Special Tool 8807, back into the bore. Use a 3/8 in. drive ratchet handle and an extension, stick the extension through Special Tool 8807-1, add Special Tool 8807-2 on the end of the extension and then fit the tool's lugs into the caliper piston notches. Screw 8807-1 all the way down, but not so hard that you damage it when you reach 8807-2. Twist 8807-2 into the frame using the ratchet until the piston is seated in the bore and occasionally use 8807-1 to get the system to begin retracting. After that, put the disc brake caliper and adapter bracket on the knuckle and rotor as a group, using two bolts to fasten them, tightening them to 100 Nm (74 ft. lbs.). Place the tire on the wheel and tilt it onto the studs. Before driving, tighten the wheel nuts to 135 Nm (100 ft. lbs.). Retract the vehicle and pump the brake pedal several times to check that it is firm before you drive away. After that, check the brake fluid level and then drive the car a bit, stopping a few times, to wear away any debris on the brakes.

OEM Dodge Journey Brake Disc

Disc Rotor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

8 Brake Discs found

View related parts
Dodge Journey Rotor, Rear Part Number: 4721996AB
$64.63 MSRP: $97.45
You Save: $32.82 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Rotor - Brake; Disc Brake Rotor, Rear; Rotor Brake Rear; Disc Brake Rotor; Brake Rotor
- Position: Rear
- Replaces: 4721677AA, 4721996AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2009-2013 Dodge Journey | AVP, Base, Crew, Express, Lux, Mainstreet, R/T, SE, SXT | 2.4L L4, 2.7L V6, 3.5L V6, 3.6L V6, 4 Cyl 2.4 L GAS, 6 Cyl 3.5 L GAS, 6 Cyl 3.6 L FLEX
View related parts
Dodge Journey Rotor, Front Part Number: 4779783AB
$80.84 MSRP: $121.00
You Save: $40.16 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rotor - Brake; Disc Brake Rotor, Front; Disc Brake Hardware Kit; Rotor Brake Front; Brake Rotor
- Position: Front
- Replaces: 4721933AB, 4779783AA, 4721995AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2012 Dodge Journey | AVP, Crew, R/T, SE, SXT | 2.4L L4, 3.6L V6, 4 Cyl 2.4 L GAS, 6 Cyl 3.6 L FLEX
View related parts
Dodge Journey Rotor, Front Part Number: 4779712AB
$99.30 MSRP: $152.00
You Save: $52.70 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Rotor - Brake; Disc Brake Rotor, Front; Disc Brake Hardware Kit; Rotor Brake Front; Disc Brake Rotor; Brake Rotor
- Position: Front
- Replaces: 4779712AA, 68192969AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2012-2014 Dodge Journey | AVP, Crew, Crossroad, Limited, R/T, SE, SXT | 2.4L L4, 3.6L V6, 4 Cyl 2.4 L GAS, 6 Cyl 3.6 L FLEX
View related parts

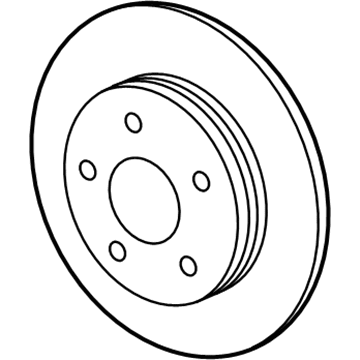

Dodge Journey Rotor, Rear Part Number: 4779713AB
$83.88 MSRP: $130.00
You Save: $46.12 (36%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Rotor - Brake; Disc Brake Rotor, Rear; Disc Brake Hardware Kit; Rotor Brake Rear; Disc Brake Rotor; Brake Rotor
- Position: Rear
- Replaces: 4779713AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2012-2020 Dodge Journey | AVP, Crossroad, GT, Limited, R/T, SE, SE Value, SXT | 2.4L L4, 3.6L V6, 4 Cyl 2.4 L GAS, 6 Cyl 3.6 L FLEX
View related parts
Dodge Journey Rotor, Front Part Number: 4721995AA
$83.33 MSRP: $124.00
You Save: $40.67 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Brake; Disc Brake Rotor, Front; Disc Brake Hardware Kit; Rotor Brake Front; Brake Rotor
- Position: Front
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2009-2012 Dodge Journey | AVP, Base, Crew, Express, Lux, Mainstreet, R/T, SE, SXT | 4 Cyl 2.4 L GAS, 6 Cyl 3.5 L GAS, 6 Cyl 3.6 L FLEX
View related parts
Dodge Journey Rotor, Front Part Number: 68032944AB
$102.31 MSRP: $151.00
You Save: $48.69 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Rotor - Brake; Disc Brake Rotor, Front; Disc Brake Hardware Kit; Disc Brake Rotor; Brake Rotor
- Position: Front
- Replaces: 68032944AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2009-2011 Dodge Journey | Base, Crew, Express, Lux, Mainstreet, R/T, SE, SXT | 2.4L L4, 2.7L V6, 3.5L V6, 3.6L V6, 4 Cyl 2.4 L GAS, 6 Cyl 3.5 L GAS, 6 Cyl 3.6 L FLEX
View related parts
Dodge Journey Rotor, Front Part Number: 68227774AB
$156.35 MSRP: $230.00
You Save: $73.65 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rotor - Brake; Disc Brake Rotor, Front; Disc Brake Hardware Kit; Rotor Brake Front; Brake Rotor
- Position: Front
- Replaces: 68227774AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2014-2019 Dodge Journey | AVP, Crossroad, GT, Limited, R/T, SE, SXT | 2.4L L4, 3.6L V6, 4 Cyl 2.4 L GAS, 6 Cyl 3.6 L FLEX
View related parts
Dodge Journey Rotor, Front Part Number: 68259791AC
$99.30 MSRP: $152.00
You Save: $52.70 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Rotor - Brake; Disc Brake Rotor, Front; Disc Brake Hardware Kit; Rotor Brake Front; Brake Rotor
- Position: Front
- Replaces: 68259791AA, 68259791AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2015-2020 Dodge Journey | AVP, Crossroad, GT, Limited, R/T, SE, SE Value, SXT | 2.4L L4, 3.6L V6, 4 Cyl 2.4 L GAS, 6 Cyl 3.6 L FLEX

Dodge Journey Brake Disc

Choose OEM Brake Disc that meet Dodge factory standards. Dodge designs and tests every component for precision and durability. Each Brake Disc follows strict manufacturing steps to lock in quality and fit. If your Dodge Journey matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Journey parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

Dodge Journey Brake Disc is one of the crucial assemblies that reflect the brand's reliability and performance. This system focuses on different models of Dodge Journey, and it will feature brake pads produced out of excellent friction material to beef up stopping energy and security. The Brake Disc kit also includes considerable hardware components; the clips, springs and shims are included because they ensure that the brake pad wears evenly on the brake disc and increase the efficacy of the braking system. Embedded with wear sensors and a warning light, drivers are in a position to change the bulbs as soon as possible to meet the safe driving standard of the Dodge Journey. The Dodge Journey also enjoys the reward of this strong braking system, which consists of standard four-wheel disc ABS and brake assist. One of the most charming features of Dodge Journey is a comfortable legroom and sophisticated safety features. Even though all these features make THE vehicle perform better, they have the added advantage of making driving safer. The Dodge Journey Brake Disc is unique in the automotive market due to its reliability and the security comfort that the drivers feel knowing they can rely on the car's braking system. Dodge Journey is no longer in production from the year 2020, but its comfort, safety and affordability cannot be overemphasized; hence, becoming a major buying point of the Brake Disc.

Dodge Journey Brake Disc Parts and Q&A

Rotor, Front
4721995AA
Q: How to Remove and Replace a Front Brake Disc on Dodge Journey?
A:
To do this job, first pack up on a lift or a jack. Next step, take out the nuts holding the wheel mount and take off the wheel and tire as an assembly. At times, pulling the inboard side a bit will create enough space for the caliper to be taken off the knuckle without directly applying pressure to the piston. After that, remove the bolts holding the disc Brake Caliper and the adapter bracket to the Steering Knuckle. With both the caliper and adapter bracket still secured as an assembly, take them off the rotor and knuckle. Hang them out of the way on wire or with a bungee cord so the brake hose is not stretched too far. Pull out any fasteners on the brake rotor that keep it from moving along the wheel mounting stud and finally slide off the brake rotor from the hub.
Rotor, Rear
4721996AB
Q: How to Remove and Replace a Rear Brake Disc on Dodge Journey?
A:
Look at the Brake Pads behind the disc brake before removing and replacing the rotor. Carefully remove any dirt or corrosion from the rotor's mounting face on your hub and bearing. Put the brake rotor over the hub and bearing. The rear caliper piston should be seated when changing the brake rotor or pads. To prevent harming the self-adjuster, use the only recommended method and rotate the piston with Retractor, Special Tool 8807, back into the bore. Use a 3/8 in. drive ratchet handle and an extension, stick the extension through Special Tool 8807-1, add Special Tool 8807-2 on the end of the extension and then fit the tool's lugs into the caliper piston notches. Screw 8807-1 all the way down, but not so hard that you damage it when you reach 8807-2. Twist 8807-2 into the frame using the ratchet until the piston is seated in the bore and occasionally use 8807-1 to get the system to begin retracting. After that, put the disc Brake Caliper and adapter bracket on the knuckle and rotor as a group, using two bolts to fasten them, tightening them to 100 Nm (74 ft. lbs.). Place the tire on the wheel and tilt it onto the studs. Before driving, tighten the wheel nuts to 135 Nm (100 ft. lbs.). Retract the vehicle and pump the brake pedal several times to check that it is firm before you drive away. After that, check the brake fluid level and then drive the car a bit, stopping a few times, to wear away any debris on the brakes.
