OEM Dodge Ram 2500 Van Steering Wheel

Dodge Ram 2500 Van Steering Wheel Parts and Q&A

• Steering Wheel
  5EH10DX9AC
  Q: What steps should be taken regarding the steering wheel before servicing the steering column to ensure safety and proper operation on Dodge Ram 2500 Van?

  A:

  Always disarm the air bag before working on the steering column to avoid it activating and you getting injured. Improper operation of the steering column may occur if all fasteners are not torqued correctly. Set the front wheels in the straight ahead position and take out the negative cable from the battery. Replace the air bag after completing the right technical procedures. Fit the puller attached to the bolts into the steering wheel and keep them away from the Clock Spring. To install, put the master spline on the steering wheel and shaft so the wheel points straight at you. Install the steering wheel and turn the retaining nut a minimum of 47 Nm (35 ft. lbs.) to finish the job. Screw the air bag back into place and plug the negative battery terminal. Finally, run through all tests on the horn, lights and whatever else is operated by the steering column.

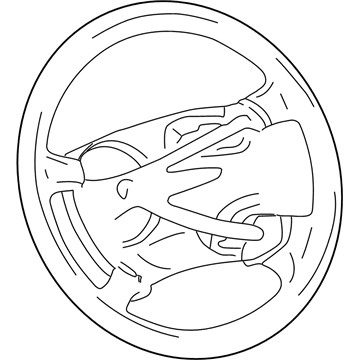

• Steering Wheel
  5GX60DX9AA
  Q: How to properly remove and reinstall a steering wheel while ensuring the airbag system is disabled on Dodge Ram 2500 Van?

  A:

  After pulling out the negative terminal of the battery, give the capacitor two minutes to discharge before you remove the steering wheel. Move the front wheels straight. Pull the driver air bag out of the steering wheel and unplug the steering wheel wire harness connectors from the receptacles in the upper Clock Spring. Remove the screw fixing the steering wheel armature to the top of the steering column shaft inside the steering wheel. Use the C-3428-B steering wheel puller, checking that all screws are well engaged and that the puller stays on the upper shaft spline without harming the Clock Spring as you pull the wheel off the steering shaft. To install, replace the steering wheel onto the upper shaft of the steering column and line up the rubber booted dowel with the area between the lower surface of the steering wheel hub and the two fins on the steering column rotor. Conduct the upper Clock Spring pigtail wire through the upper hole found between the steering wheel back trim cover and the steering wheel armature. Secure the upper shaft screw to the steering wheel with 61 Nm (45 ft. lbs.) of torque, making sure not to pull on or damage either the Clock Spring pigtail wire nor the steering wheel wire harness. Next, reconnect the two steering wheel wire harness connectors to the upper Clock Spring receptacles, ensuring the wire harness is routed correctly, and finally, reinstall the driver air bag onto the steering wheel.
